Product Construction
1.Conductor: bare/tinned copper,or Aluminum.
2.Insulation: PVC rated at 70°C
3.Color Code: red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement
4.Outer sheath: PVC tapes ST2 to IEC.
Service Performance Of Copper Wire
1. Rated voltage: 300/300V ; 300/500V ;450/750V
2. Long-term working temperature: not be higher than 70°C
3. When laying the cable, the ambient temperature should not lower than 0°C
4. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.
| Model | Name | Usage |
|---|---|---|
| BV(BLV) | copper (AL) core PVC insulated cable (wire) | Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment, power and lighting lines for fixed laying |
| BVR | copper core PVC insulated flexible cable (wire) | |
| BVV(BLVV) | copper (AL) core PVC insulated PVC sheathed round cable (wire) | |
| BVVB(BLVVB) | copper (AL) core PVC insulated PVC sheathed flat cable (wire) | |
| BV-105 | copper core heat-resistant 105 degree PVC insulated wire | |
| BV-ZR | copper core flame retardant PVC insulated wire | / |
| BVR-ZR | copper core flame retardant PVC insulated flexible wire | / |
| BVV-ZR-105 | copper core flame retardant PVC insulated PVC sheathed round cable | / |
| BVVB-ZR | copper core flame retardant PVC insulated PVC sheathed flat cable | / |
| BV-ZR-105 | copper core heat resistant 105 ℃ flame retardant PVC insulated wire | / |
| BVR-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable | / |
| BVV-ZR-105 | copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable | / |
| AV-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire | / |
| AVR-ZR-105 | copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire | Cords for internal use in instruments, meters, etc. |
| AV-ZR | copper core flame retardant PVC insulated installation (flexible) wire | hard-wired for electrical, instrumentation, electronic equipment, etc. |
| RV | Copper core PVC insulated flexible wire | Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power tools, power and lighting devices |

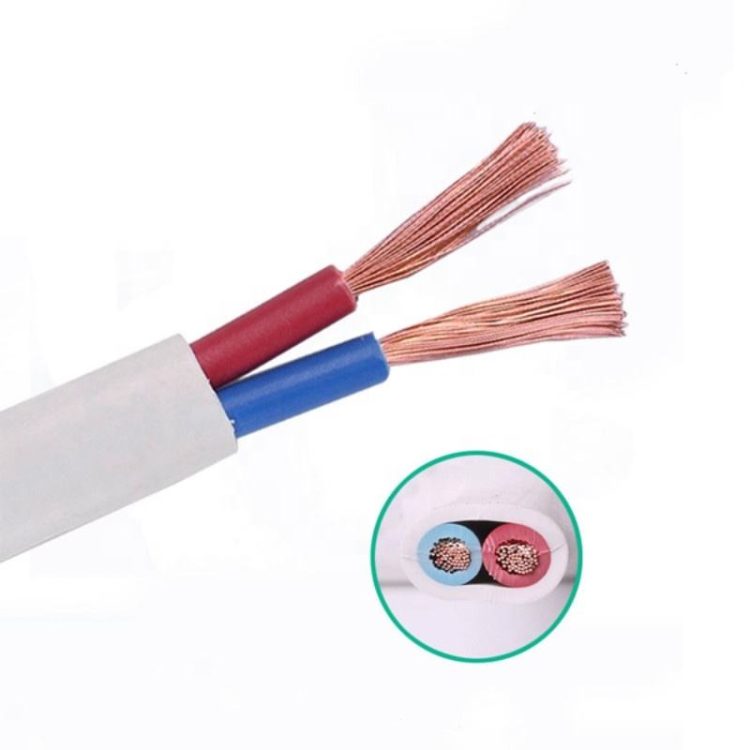

| RVB (RVVB) | copper core PVC insulated flat connection flexible wire | |
| RVS | copper core PVC insulated twisted connection flexible wire | |
| Rv-105 | copper core heat-resistant 105 degree PVC insulated connection flexible wire | |
| RVV | copper core PVC insulated PVC sheathed flat connection flexible cable (wire) | Household appliances, small electric tools, instruments and power lighting |
| RVVP | Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core, | instrument, instrument, intercom, monitoring, control installation |
| AVVR | PVC Sheath | Installation flexible cable |
