Application

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in the dry or wet cable trenches.

Classification

  • Maximum conductor temperature: 70°C
  • Maximum circuit voltage: 600 V
  • AC test voltage: 2,000 V

Reference Standard

BCC’s standard

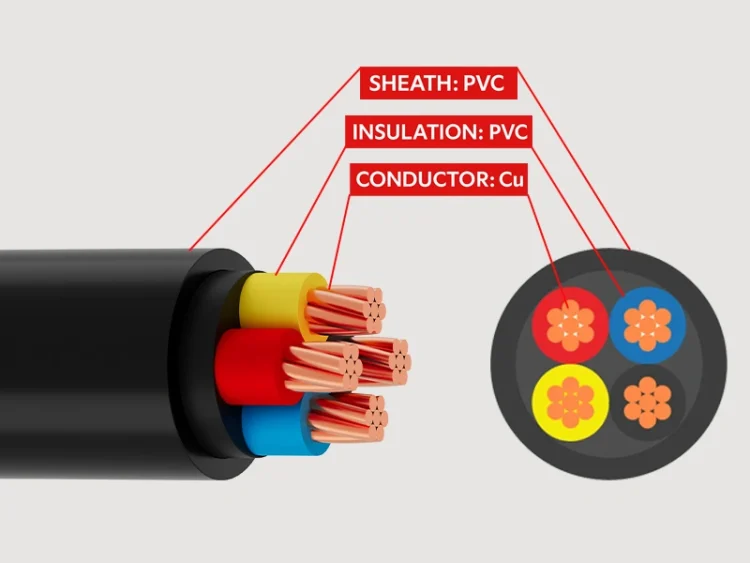

Construction

  1. Conductor: Bunched stranded annealed copper
  2. Insulation: Polyvinyl chloride (PVC), Black colour
  3. Filler: Polypropylene (Non-hygroscopic material)
  4. Binding tape: Polyester tape and/or Spunbond tape
  5. Sheath: Polyvinyl chloride (PVC), Black colour

Cable Specifications Table

No. of Core Cross-sectional Area (mm²) Dia. of Wires (mm) (Max.) Diameter (mm) (Approx.) Thickness of Insulation (mm) (Nominal) Thickness of Sheath (mm) (Nominal) Overall Diameter (mm) (Approx.) DC Conductor Resistance at 20°C (Ω/km) (Max.) Insulation Resistance at 20°C (MΩ.km) (Min.) Cable Weight (kg/km) (Approx.) Standard Length (m/drum)
1 0.5 0.21 0.92 0.6 1.2 7.0 39.0 50 50 500
1 0.75 0.21 1.13 0.6 1.2 8.0 26.0 50 70 500
1 1 0.21 1.31 0.6 1.2 8.0 19.5 50 80 500
1 1.5 0.26 1.58 0.6 1.2 8.5 13.3 50 90 500
1 2.5 0.26 2.04 0.7 1.2 10.0 7.98 50 130 500
1 4 0.31 2.59 0.8 1.2 11.5 4.95 50 190 500
1 6 0.31 3.60 0.8 1.4 14.0 3.30 50 270 500
2 0.5 0.21 0.92 0.6 1.2 7.0 39.0 50 50 500
2 0.75 0.21 1.13 0.6 1.2 8.0 26.0 50 70 500
2 1 0.21 1.31 0.6 1.2 8.5 19.5 50 90 500
2 1.5 0.26 1.58 0.6 1.2 8.5 13.3 50 90 500
2 2.5 0.26 2.04 0.7 1.2 10.0 7.98 50 130 500
2 4 0.31 2.59 0.8 1.2 11.5 4.95 50 190 500
2 6 0.31 3.60 0.8 1.4 14.0 3.30 50 270 500
3 0.5 0.21 0.92 0.6 1.2 8.0 39.0 50 70 500
3 0.75 0.21 1.13 0.6 1.2 8.0 26.0 50 80 500
3 1 0.21 1.31 0.6 1.2 8.5 19.5 50 90 500
3 1.5 0.26 1.58 0.6 1.2 9.0 13.3 50 120 500
3 2.5 0.26 2.04 0.7 1.2 10.5 7.98 50 170 500
3 4 0.31 2.59 0.8 1.2 12.5 4.95 50 240 500
3 6 0.31 3.60 0.8 1.4 15.0 3.30 50 350 500
4 0.5 0.21 0.92 0.6 1.2 8.5 39.0 50 80 500
4 0.75 0.21 1.13 0.6 1.2 9.0 26.0 50 100 500
4 1 0.21 1.31 0.6 1.2 9.5 19.5 50 120 500
4 1.5 0.26 1.58 0.6 1.2 10.0 13.3 50 140 500
4 2.5 0.26 2.04 0.7 1.2 11.5 7.98 50 210 500
4 4 0.31 2.59 0.8 1.4 14.0 4.95 50 310 500
4 6 0.31 3.60 0.8 1.4 16.5 3.30 50 440 500
5 0.5 0.21 0.92 0.6 1.2 9.0 39.0 50 100 500
5 0.75 0.21 1.13 0.6 1.2 9.5 26.0 50 120 500
5 1 0.21 1.31 0.6 1.2 10.0 19.5 50 140 500
5 1.5 0.26 1.58 0.6 1.2 11.0 13.3 50 170 500
5 2.5 0.26 2.04 0.7 1.4 13.0 7.98 50 270 500
5 4 0.31 2.59 0.8 1.4 15.0 4.95 50 390 500
5 6 0.31 3.60 0.8 1.4 18.0 3.30 50 540 500
