This is one of BUS Cable, widely used for testing of Sensor and propeller. Enable effective, Compositive production and
automatical procedure, specially used in Channel System. it is a lower cost network solution with opening network standard.

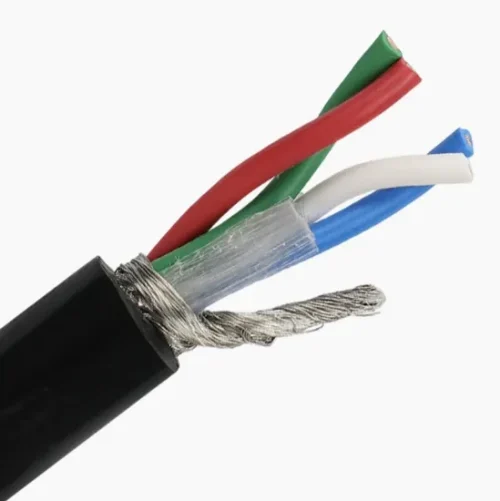

Cable Construction:
– Conductor: Tinned Copper, Stranded
– Insulation 1: Foam PE
– Insulation 2: PVC
– Shield: Al/Mylar Screen Foil
– Overall Shield: Tinned Copper wire
– Drain Wire: Tinned Copper Wire
Product Feature:
– Oil and grease resistance
– Fire Resistance Meets IEC60332-1
– Torsion resistance, Easy bending
– High Braiding Coverage, Excellent Anti-EMI Performance
– UV resistance/Abrasion Resistance/Anti-Hydrolysis
Technical Data:
– Temperature Range: -40ºC to 80ºC
– Characteristic Impedance: 120 +/- 15 Ohm
– Mini Bending Radius:10D
– Test Voltage: 1500V,1Min. no Breakdown
– Insulation Resisiance at 20ºC: AWG24>=1000MΩ.KM
– Conductor Resistance at 20ºC: AWG24<=91.8Ω.KM
| Item No | Spec | Jacket | OD(mm) | Copper weight app.(kg/km) | Weight appr. (kg/km) |
|---|---|---|---|---|---|
| W10301 | 1*2*24AWG+1*2*22AWG | PVC | 7.0 | 32 | 65 |
| W10302 | 1*2*24AWG+1*2*22AWG | PUR | 7.0 | 32 | 63 |
