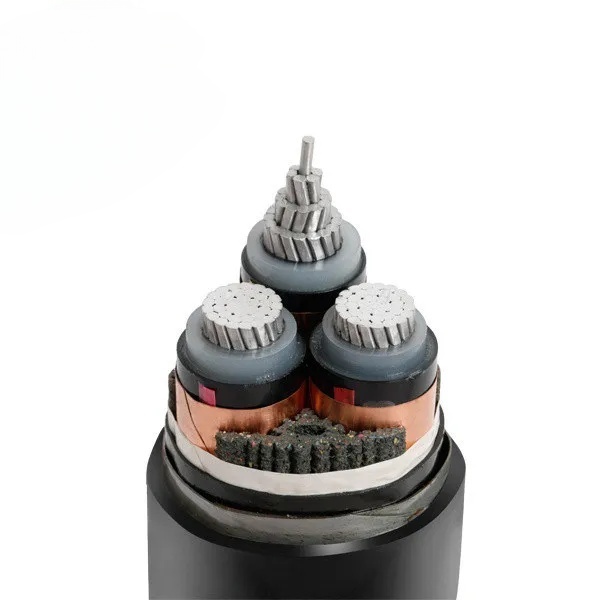

Application:
XLPE Cable is used indoor or outdoor, in tunnel, cable furrow or pipe, to be laid underground, be applicable to the well, water inside and fall in the bad soil.
Standards:IEC60502-2, BS7870-4, BS7870-7, BS7870-8
Cores: 1 Core, 3 Core
Conductor:Cu or Aluminum
Insulation:XLPE (Cross-Linked Polyethylene)
Armor:non-armor, steel tape armored, steel wire armored
Sheath:PVC or PE
Sheath Color:Black or Colors
Product Description:
– XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
– XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
– XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
– Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
– Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
– Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR – Flame Retardant
| Nominal cross section (mm2) | Insulation Thickness(mm) | Approx. Overall Dia.& Weight | ||||
|---|---|---|---|---|---|---|
| Steel Tape layer×thickness |
PVC sheath | PE sheath | ||||
| Overall dia. mm |
Weight kg/km |
Overall dia. mm |
Weight kg/km |
|||
| 50 | 10.5 | 2×0.8 | 89.0 | 8791 | 89.0 | 8326 |
| 70 | 10.5 | 2×0.8 | 93.1 | 9878 | 93.1 | 9377 |
| 95 | 10.5 | 2×0.8 | 97.0 | 11079 | 97.0 | 10530 |
| 120 | 10.5 | 2×0.8 | 100.5 | 12238 | 100.5 | 11655 |
| 150 | 10.5 | 2×0.8 | 104.4 | 13597 | 104.4 | 12976 |
| 185 | 10.5 | 2×0.8 | 108.1 | 15050 | 108.1 | 14391 |
| 240 | 10.5 | 2×0.8 | 114.0 | 17386 | 114.0 | 16658 |
| 300 | 10.5 | 2×0.8 | 118.8 | 19710 | 118.8 | 18934 |
| 400 | 10.5 | 2×0.8 | 126.6 | 23603 | 126.6 | 22722 |
