TTU 600V Cable
1. Applications
The copper conductors type TTU-600V are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor installations or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 75 ºC and its voltage of service for all the applications it is 600 V.
2. Construction

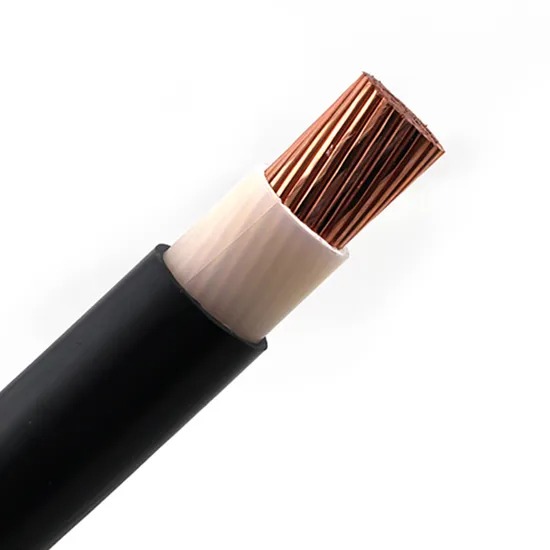

The conductors type TTU-600V are stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Polyethylene (PE) thermoplastic material resistant to the moisture and the heat, over which is applied a protector coating of Chloride of Polyvinyl (PVC). They are always supplied in black color and with different packaging.
3.TTU 600V data sheet
| SIZE AWG O MCM |
CROSS SECTION AL mm2 |
STRANDING Number of wire x diameter mm. |
INSULATION THICKNESS mm. |
JACKET THICKNESS mm. |
EXTERNAL DIAMETER mm. |
TOTAL WEIGHT Kg/Km |
AMPACITY for 1 conductor in free air Amp. |
AMPACITY for 3 conductors in conduit Amp. |
|
|---|---|---|---|---|---|---|---|---|---|
| 8 | 8,37 | 7 x 1,23 | 1,14 | 0,38 | 6,73 | 109,0 | 70 | 50 | |
| 6 | 13,30 | 7 x 1,55 | 1,14 | 0,76 | 8,45 | 170,0 | 95 | 65 | |
| 4 | 21,15 | 7 x 1,96 | 1,14 | 0,76 | 9,68 | 301,0 | 125 | 85 | |
| 2 | 33,62 | 7 x 2,47 | 1,14 | 0,76 | 11,21 | 376,0 | 170 | 115 | |
| 1 | 42,36 | 7 x 2,78 | 1,40 | 1,14 | 13,42 | 461,5 | 195 | 130 | |
| 1/0 | 53,49 | 19 x 1,89 | 1,40 | 1,14 | 14,53 | 609,0 | 230 | 150 | |
| 2/0 | 67,43 | 19 x 2,12 | 1,40 | 1,14 | 15,68 | 747,0 | 265 | 175 | |
| 3/0 | 85,01 | 19 x 2,39 | 1,40 | 1,14 | 17,03 | 915,0 | 310 | 200 | |
| 4/0 | 107,20 | 19 x 2,68 | 1,40 | 1,14 | 18,48 | 1132,0 | 360 | 230 | |
| 250 | 127,00 | 37 x 2,09 | 1,65 | 1,65 | 21,23 | 1390,0 | 405 | 255 | |
| 300 | 152,00 | 37 x 2,29 | 1,65 | 1,65 | 22,63 | 1641,0 | 445 | 285 | |
| 350 | 177,00 | 37 x 2,47 | 1,65 | 1,65 | 23,89 | 1889,0 | 505 | 310 | |
| 400 | 203,00 | 37 x 2,64 | 1,65 | 1,65 | 25,08 | 2137,0 | 545 | 335 | |
| 500 | 253,00 | 37 x 2,95 | 1,65 | 1,65 | 27,25 | 2627,0 | 620 | 380 | |
| 600 | 304,00 | 37 x 3,23 | 2,03 | 1,65 | 29,97 | 3144,0 | 690 | 420 | |
| 650 | 329,00 | 37 x 3,37 | 2,03 | 1,65 | 30,95 | 3409,0 | 725 | 440 | |
| 700 | 355,00 | 37 x 3,49 | 2,03 | 1,65 | 31,79 | 3593,0 | 755 | 460 |
