Detailed Description
Industrial Ethernet Is Not Office Ethernet — The Cable Must Survive the Machine
A standard office Cat5e patch cable costs a few dollars and lasts forever plugged into a wall. It was never designed to move. Its solid-core conductors fatigue and break after a few hundred bends. Its PVC jacket offers zero chemical resistance. Its RJ45 connectors — secured by a plastic tab — disconnect at the slightest vibration.

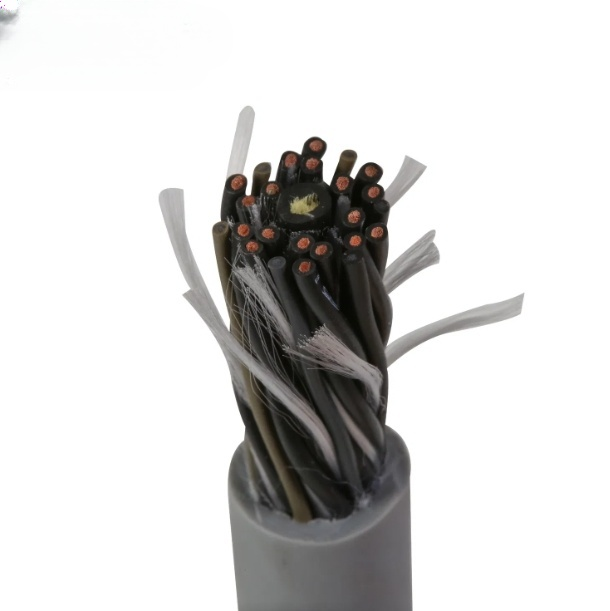

An industrial drag chain Ethernet cable is a fundamentally different product:
- Stranded conductors (Class 5): Seven or more fine copper strands per core — each strand is individually flexible, and the bundle can withstand millions of bends without breaking
- Twisted quad rather than 4-pair: PROFINET and most industrial Ethernet protocols use only 2 pairs (4 wires) for 100 Mbps communication. A star-quad construction with 4 cores in a single twist element provides better common-mode noise rejection than 4 separate twisted pairs
- M12, not just RJ45: The field end uses an M12 D-coded connector with a threaded screw lock — IP67 rated, vibration-proof, impossible to accidentally disconnect
- Green jacket: The green PUR jacket is the industry-standard identifier for PROFINET cables. It signals to every technician on the factory floor that this is an industrial Ethernet cable, not a generic signal wire
PROFINET, EtherCAT, and EtherNet/IP — One Cable, Three Protocols
Industrial Ethernet is not a single standard — it is a family of protocols that all use the same physical layer (100BASE-TX Ethernet over twisted pair). A properly specified Cat5e drag chain cable works with all three major protocols:
| Protocol | Organization | Topology | Cable Req. | Typical Use |
|---|---|---|---|---|
| PROFINET | PI (PROFIBUS International) | Star, ring, line | Type C Cat5e, 100 Mbps, green jacket | PLC to I/O, drive, and HMI communication |
| EtherCAT | ETG (EtherCAT Technology Group) | Line, ring (daisy-chained) | Cat5e, 4-wire, RJ45 or M8/M12 | Multi-axis motion control, CNC, robotics |
| EtherNet/IP | ODVA | Star (standard Ethernet switching) | Cat5e, 4-pair or 2-pair, RJ45 | Rockwell/Allen-Bradley PLC ecosystems |
All three use the same Cat5e physical layer. The cable itself is protocol-agnostic — it is the end devices and software that determine the protocol. Specify this cable for PROFINET, and it will also carry EtherCAT or EtherNet/IP without modification.
Twisted Quad Construction — Why 4 Cores, Not 8
Office Ethernet cables (Cat5e/Cat6) contain 4 twisted pairs = 8 wires. This is for Gigabit Ethernet (1000BASE-T), which uses all 4 pairs simultaneously.
PROFINET and 100 Mbps industrial Ethernet use only 2 pairs (4 wires): one pair for transmit, one pair for receive. A "twisted quad" or "star quad" construction bundles all 4 cores in a single twist element rather than separating them into two independent pairs:
- Better common-mode rejection: All 4 wires experience the same electromagnetic environment, so induced noise appears equally on all conductors and is rejected by the differential receiver
- Smaller outer diameter: Quad construction is 15–20% smaller than 4-pair Cat5e for the same AWG — reducing bend radius and carrier space
- Easier termination: 4 cores to connector pins is simpler and more reliable than 8 — especially in field-assembled M12 connectors
Shield Design — SF/UTP Dual Shield
The SF/UTP designation means: Screened Foiled / Unshielded Twisted Pair:
- Foil (F): Aluminum/PET foil wrapped 100% around the quad — blocks high-frequency EMI from VFD switching harmonics, wireless devices, and arc welding
- Braid (S): Tinned copper braid, 85%+ coverage over the foil — provides low-frequency EMI attenuation and mechanical protection for the foil layer
Connector Strategy — M12 Industry Standard
The de facto industrial standard is M12 D-coded on the machine side and RJ45 on the cabinet side:
| Position | Connector | Why |
|---|---|---|
| Field (Machine) Side | M12 D-coded male, 4-pin, screw-lock | IP67 sealed against coolant spray, vibration-proof threaded connection, compact size fits through cable carriers |
| Cabinet (Control) Side | RJ45 male, 8P8C, snap-lock | Compatible with standard Ethernet switches and PLC ports; no adapter needed |
Installation — Getting Reliable Ethernet in a Drag Chain
- Bend radius: Minimum 10× cable OD in the carrier. Ethernet cables are more sensitive to tight bends than power cables — excessive bending compresses the PP insulation and changes the impedance, causing bit errors before any visible physical damage
- No kinks or knots: Even a single kink can permanently deform the quad geometry and render the cable unusable for Ethernet
- RJ45 strain relief: The cabinet-side RJ45 connector is the most fragile part of the system. Always use an RJ45 plug with integrated strain relief boot. Route the cable so that the RJ45 end does not experience tension from carrier movement
- Cable length limits: 100 meters maximum for 100BASE-TX Ethernet — this is a protocol limit, not a cable quality limit. For PROFINET lines, be aware of additional restrictions for IRT (Isochronous Real-Time) configurations
- Testing: Always test assembled cable assemblies with a Cat5e cable certifier before commissioning. A drag chain installation that passes a simple continuity test may still fail a Cat5e certification test — and intermittent Ethernet faults are among the most difficult problems to diagnose on a running machine
Why Choose Yichi Cable Industrial Ethernet?
- PROFINET Type C compliant: Tested and verified to PROFINET cable specifications — not a repurposed office Cat5e cable
- Pre-assembled and tested: Every cable assembly is 100% continuity and Cat5e certification tested before shipment — you connect, configure, and commission
- Custom lengths: 1 m, 2 m, 3 m, 5 m, 10 m, 15 m standard; custom lengths up to 100 m available — no wasted cable, no field splicing
- Connector options: M12 straight, M12 angled (90°), RJ45 straight — configured to your machine layout
- Fast delivery: Standard lengths ship within 3–5 days; custom lengths 7–10 days
