Detailed Description

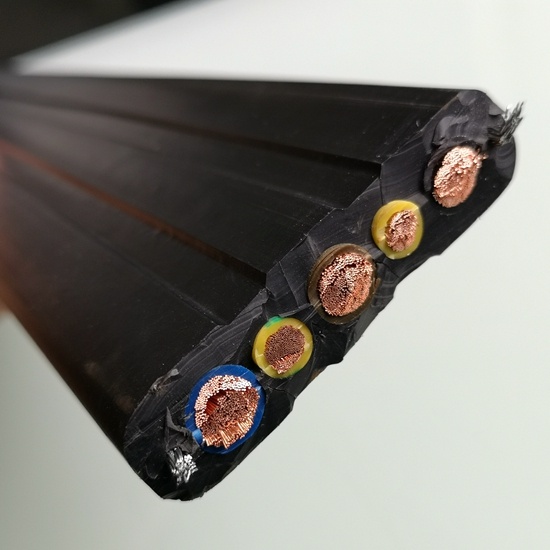

Flat Cable on Gantry Cranes — Where and Why
A gantry crane uses both round reeling cable (on motorized drums for the hoist) and flat festoon cable (on the trolley and boom). Each has a specific role:
| Crane System | Cable Type | Why |
|---|---|---|
| Main hoist | Round reeling cable (motorized drum) | Deep-drum winding, high tensile load from cable weight |
| Trolley traverse festoon | Flat festoon cable | High-speed loops (240 m/min), zero twist, neat stacking |
| Boom hoist festoon | Flat festoon cable | Large loop excursion during boom raise/lower |
| Gantry drive (RTG) | Flat reeling cable | Compact drum, cable follows crane movement |
| Spreader power/control | Flat or round, depending on crane design | Short loops, high flex cycles |
The trolley traverse is the most demanding flat cable application on the crane. At 240 m/min (4 m/s), the festoon loops open and close at high speed. Loop-to-loop contact, wind-induced sway, and constant UV/salt exposure are all present. The flat cable must maintain its geometry, prevent twisting, and survive hundreds of thousands of loop cycles.
Festoon Loop Design — Geometry Matters
A festoon system on a gantry crane trolley consists of multiple cable loops hanging between support trolleys. The loop geometry determines the cable's flex life:
| Loop Parameter | Recommended Value | Impact of Wrong Value |
|---|---|---|
| Loop depth (sag) | 1.5–2.0 m (typical STS) | Too shallow: high tension, accelerated wear. Too deep: loops contact each other |
| Loop bend radius (bottom) | ≥6 × cable thickness | Smaller radius: accelerated jacket cracking at loop bottom |
| Trolley spacing | 2–3 m (typical) | Larger spacing: increased cable sag and wind sway |
| Number of loops | Minimum to cover full trolley travel + 1 spare loop | Insufficient loops: cable pulls taut at end of travel |
| Cable tension | 0.5–1.0% of cable breaking strength | Excessive: accelerated wear at clamp points |
The flat cable's ribbon geometry naturally forms clean, uniform loops — the cable bends preferentially in the flat plane, creating consistent loop shapes. Round cables in festoon systems can develop "memory" — coiling in unintended directions that cause loop tangling.
Flat vs Round — Trolley Festoon Performance
| Round Cable Festoon | Flat Cable Festoon | |
|---|---|---|
| Loop formation | Can twist, loop shape inconsistent | Naturally forms clean, uniform loops |
| Wind resistance | Higher (round profile) | Lower (flat profile, less drag) |
| Loop stacking (crane parked) | Can tangle if loops contact | Loops stack neatly, no tangling |
| Trolley weight | Heavier (cable + separate messenger) | Lighter — integrated messenger, no separate support |
| Visual inspection | Difficult — round surface hides cracks | Easy — flat surface shows wear, cracks immediately |
| Multiple cables | Individual round cables can cross and tangle | Flat cables stack in organized layers, no crossing |
STS Trolley Festoon — A Typical Configuration
A modern STS crane trolley festoon system:
- 1 × flat power cable: 4G35 mm² + 4G16 mm² (main + auxiliary hoist power), PUR jacket, 80 mm wide × 18 mm thick
- 1 × flat control cable: 24 × 1.5 mm² (spreader, brakes, limits), PUR jacket, 60 mm wide × 12 mm thick
- 1 × flat fiber cable: 12-fiber SM + 4 × 0.5 mm² (power for CMS), PUR jacket, 25 mm wide × 6 mm thick
- Steel wire edge messengers: All three cables — sized for 45 m span with wind loading
- Support trolleys: Spaced at 2.5 m, 12 loops covering 30 m trolley travel
Why Choose Yichi Cable Gantry Crane Flat?
- Gantry crane application experience: We understand the difference between hoist reeling cable and trolley festoon cable — and engineer each accordingly
- Self-supporting flat design: Integrated steel wire messengers eliminate separate support cables — simpler installation, fewer components to maintain
- High-speed festoon rated: Our flat cables are tested for loop dynamics at 240 m/min — not extrapolated from static bend tests
- Loop geometry consultation: We review your festoon layout — loop depth, trolley spacing, bend radius — and verify compatibility before cable design
- Complete festoon cable sets: Power + control + fiber in matched flat cable profiles — designed to stack together on the same trolley system
