The Hidden Failure — Core Collapse Under Compression
A reeling cable failure is usually obvious: the jacket is worn through, the conductors are exposed, the machine stops. But some failures happen invisibly — inside the cable, where no one sees them until it is too late.

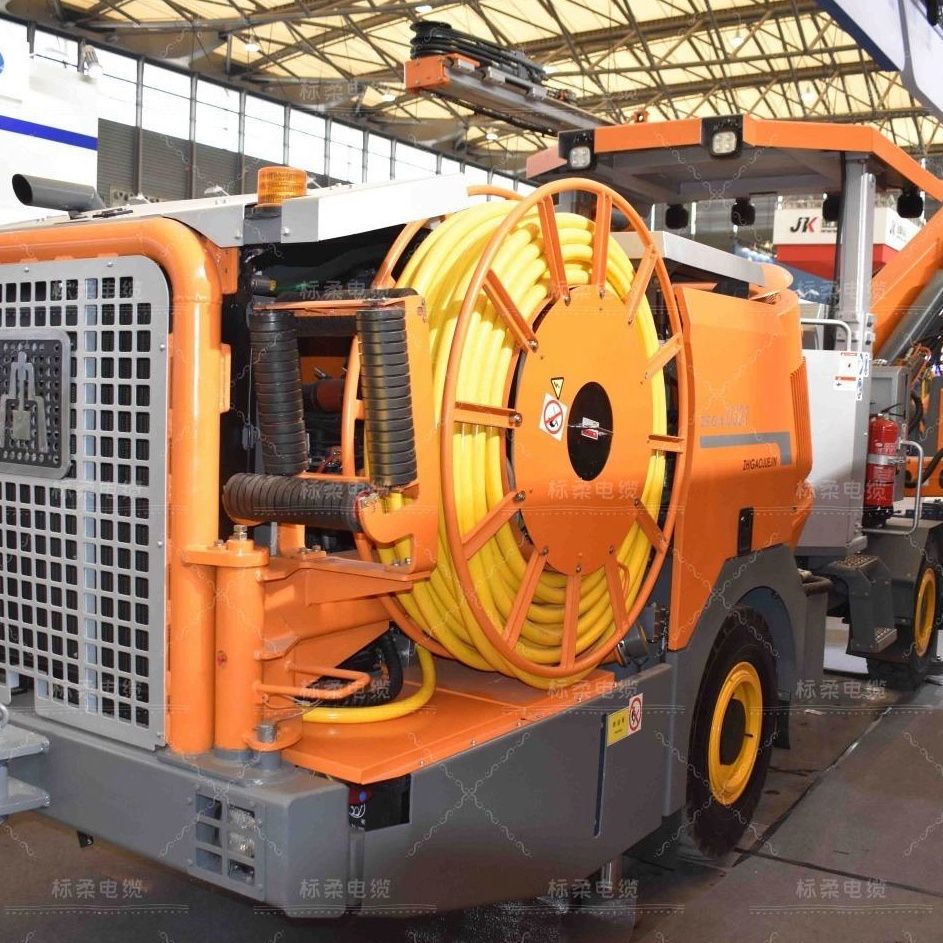

On a deep-drum reel, the innermost cable layers are under sustained compressive force from every layer wound above them. Standard cable core construction has 10–15% internal void space — the gaps between conductors, fillers, and inner sheath. Under sustained compression, these voids slowly collapse:
- Conductors ovalize: The round cross-section flattens → increased electrical resistance → localized heating → accelerated insulation aging
- Insulation creeps: EPR/PVC insulation slowly thins under sustained pressure → reduced dielectric strength → eventual insulation failure at the thinnest point
- Cores migrate: Individual conductors shift position within the cable → unequal tension distribution during reeling → premature conductor fatigue at stress concentration points
What "Reinforced Core" Means — The Engineering
| Core Element | Standard Reeling Cable | Reinforced Core Reeling |
|---|---|---|
| Internal void space | 10–15% | <5% — high-density filler packing |
| Conductor stranding | Single lay direction per layer | Counter-stranded layers — anti-torsion |
| Inter-layer filler | PP yarn (moderate density) | PET/PP hybrid — high compression resistance |
| Inner reinforcement | None or thin PET tape | Aramid fiber wrap + CR/NBR cushion sheath |
| Core cross-section after 100K cycles at 15 layers | ±8–12% ovalization | ±3% — near-perfect roundness maintained |
| Insulation thickness recovery | 80–85% (PVC) | ≥95% (EPR) — near-full recovery |
Aramid Fiber Wrap — The Radial Compression Absorber
A layer of Kevlar aramid fibers is helically wrapped around the stranded core assembly. Aramid fibers have extremely high compressive modulus — they resist the radial inward force from drum layer compression. Think of it as a non-metallic "spring" that pushes back against the compressive load.
CR/NBR Cushion Sheath — The Load Distributor
An extruded layer of CR or NBR rubber over the aramid wrap. This soft layer (Shore 60–70 A) deforms slightly under compression, distributing point loads across the entire core surface. Without it, compression would concentrate at the high points of the conductor strands — creating localized stress concentrations.
Standard vs Reinforced — The Difference in Numbers
For a 95 mm², 4-core reeling cable on a drum with 15 winding layers:
| Parameter | Standard Construction | Reinforced Core |
|---|---|---|
| Conductor ovalization after 50 000 cycles | 8–12% | <3% |
| Conductor resistance increase | 5–8% | <1% |
| Insulation thickness at thinnest point | 0.9 mm (from 1.2 mm original) | 1.15 mm (from 1.2 mm) |
| Estimated service life on deep drum | 2–4 years | 5–8 years |
The reinforced core costs approximately 15–20% more than standard construction. On a deep-drum reel where cable replacement requires a crane and production shutdown, this premium is recovered in the first avoided premature replacement.
When Reinforced Core Is Required
| Application Condition | Standard Core OK? | Reinforced Core Needed? |
|---|---|---|
| < 5 drum layers | ✅ | ❌ Over-specified |
| 5–10 drum layers | ⚠️ Acceptable with derating | ✅ Recommended |
| > 10 drum layers | ❌ Will deform | ✅ Required |
| High winding tension (>5% cable weight) | ⚠️ Borderline | ✅ Required |
| Cable replacement cost > $5 000 (crane + downtime) | ⚠️ Consider lifetime economics | ✅ Justified by avoided failure |
Why Choose Yichi Cable Reinforced Core?
- Compression-tested: Our reinforced core construction is tested under simulated multi-layer drum compression — not calculated, not extrapolated
- Quantified performance: We specify conductor ovalization (±3%) and insulation recovery (≥95%) as verified performance guarantees
- Dual-layer reinforcement: Aramid wrap + CR cushion as standard — the engineering minimum for reliable deep-drum performance
- Application-appropriate: We do not recommend reinforced core for 3-layer shallow drums — we recommend it when your application needs it
