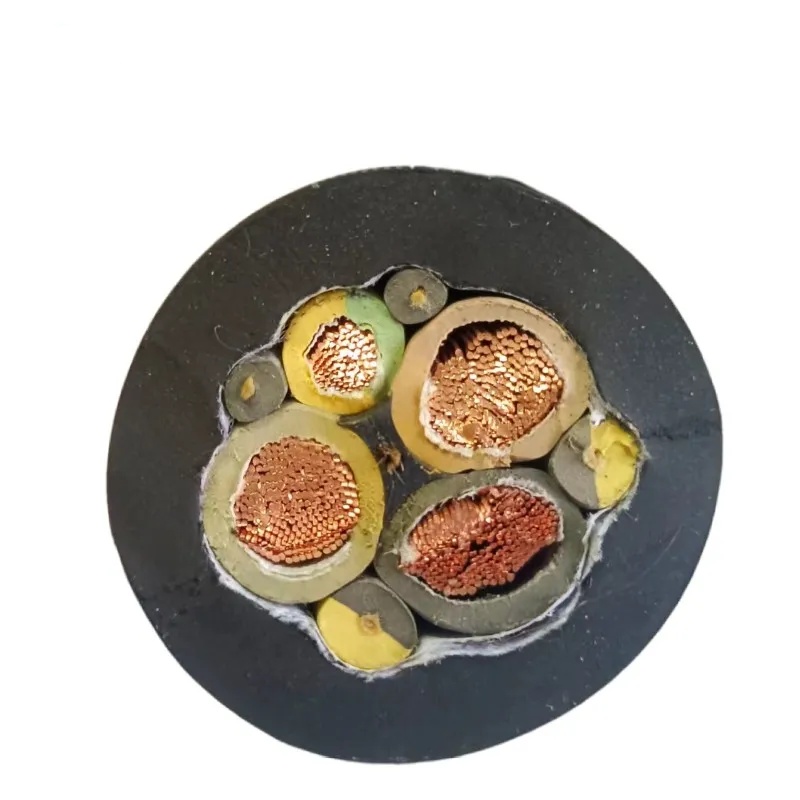

Specialty Mining Drag Cable — Heavy-Duty Trailing and Dragline Power Cable for Open-Pit Electric Shovels, Draglines, and Large Mobile Mining Equipment

Mining Drag Cable — Not Reeling, Dragging

A reeling cable is wound on a drum. A mining drag cable is dragged across the ground — pulled behind a walking dragline or electric shovel as it moves across the open-pit bench. The cable lies on blasted rock, is run over by service vehicles, is exposed to -30°C winter and +45°C summer, and is splashed with drilling mud and hydraulic oil.

This is the most mechanically abusive cable application in industry. The jacket is the primary defense — typically 3.0–6.0 mm thick CR or CSPE, formulated for maximum cut, tear, and abrasion resistance. It is not unusual for a mining drag cable jacket to be 50% of the total cable weight.

Ground Check — MSHA's Life-Saving Requirement

MSHA (Mine Safety and Health Administration) 30 CFR Part 18 requires that every trailing cable for mobile mining equipment includes a ground check conductor. This is a dedicated conductor, typically tinned copper, that monitors the continuity of the equipment grounding system.

When the trailing cable is plugged in at both ends (power source and machine), the ground check circuit verifies that the ground path is intact. If the ground path is broken — by a damaged cable, loose connection, or equipment fault — the circuit opens and the power is automatically disconnected before anyone can touch an energized machine frame.

This is not optional. It is mandated by federal law in the United States and by equivalent mining safety regulations worldwide.

MSHA Yellow — Visibility That Saves Lives

Mining drag cables are often specified with a bright yellow jacket and reflective stripes. The reason is practical:

• A black cable on dark rock is nearly invisible — especially at night or in poor weather
• Service vehicles (graders, water trucks, light vehicles) routinely drive across bench floors
• Running over a high-voltage cable can cause catastrophic failure and electrocution risk
• A bright yellow cable is visible from a distance — drivers can see it and avoid it

MSHA and equivalent regulations increasingly mandate high-visibility cable jackets for surface mining.

Dragline Cable Configuration — A Typical Example

A 25 kV walking dragline trailing cable:

• 3 × 400 mm² power conductors — main drive motors: hoist, drag, swing, walking
• 2 × 150 mm² ground conductors — equipment grounding + ground check
• 1 × 10 mm² ground check conductor — MSHA monitoring circuit
• 6 fibers single-mode — dragline CMS: bearing temperatures, rope tensions, production data
• Central steel wire tensile/ground core — carries mechanical drag load
• CSPE (Hypalon) outer jacket, 5.0 mm, yellow with reflective stripe

Total OD: approximately 90–100 mm. Weight: approximately 18–22 kg/m. For a 300 m cable: 5.4–6.6 tonnes total. The machine literally drags 6 tonnes of cable behind it as it walks across the pit.

Why Choose Yichi Mining Drag Cable?

• MSHA certified manufacturing: Our mining cables are manufactured to MSHA 30 CFR Part 18 requirements — not just jacket material, but full construction and testing compliance
• Ground check conductor standard: Included on every mining drag cable as a design requirement — not an optional extra
• ICEA S-75-381 compliant: North American mining cable standard — construction, testing, and marking per the specification
• Yellow high-visibility jacket: Standard offering — with reflective stripe per MSHA recommendation
• Field splice and repair support: Mining drag cables are repaired in the field after damage. We provide splice kits, connector recommendations, and technical support for field repairs
