Performance Characteristics
Reeling and Flexing Performance
-
Travel length: 80~150 m
-
Acceleration: 50 m/s²
-
Speed: 2 m/s
-
Bending life: over 5 times that of ordinary rubber-sheathed cables
-
Service life: 2–3 times longer than comparable rubber cables under the same operating conditions
Key Features
-
Superb abrasion resistance and ability to withstand high mechanical tensile forces
-
Waterproof, oil-resistant, UV-resistant, and weatherproof
-
Stable 3+3 core structure for even stress distribution under dynamic load
-
High tensile strength, repeated flexing endurance, and excellent notch resistance
-
Core conductors resist breakage; outer sheath shows superior crack resistance
Engineered with a specialized design philosophy, advanced materials, and proprietary manufacturing processes, this cable reliably adapts to demanding working environments.

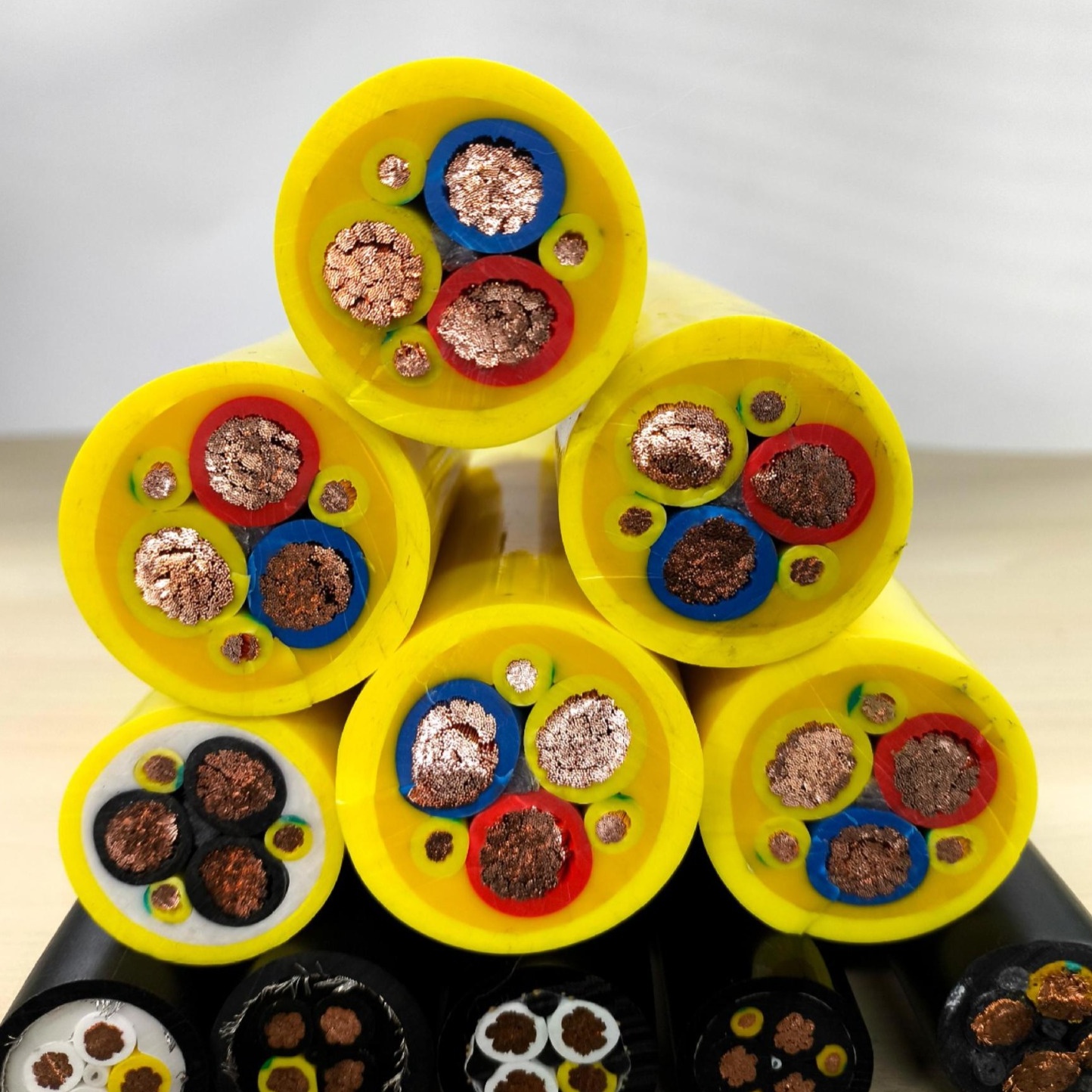

Cable Construction
-
Conductor: 99.9999% annealed oxygen-free flexible copper, stranded using a special bunching method optimized for drum reeling applications (tensile-reinforced conductor available as option)
-
Insulation: Custom-formulated high-strength polymer compound
-
Core Identification: Color-coded with number marking plus green/yellow ground wire, compliant with DIN 47100
-
Strength Members: High-grade polyester-cotton yarn, specialty aramid fiber, and dedicated tensile galvanized soft steel wire
-
Stranding: Special lay-up design specifically adapted to reeling drum service
-
Inner Sheath (optional): Special weather-resistant high-strength compound
-
Shield: 99.9999% annealed oxygen-free flexible copper, fine braided
-
Outer Sheath: Imported specialty polyurethane (PUR) formulated for cable sheathing; sheath colors available in yellow, gray, and black
Applications
This cable is designed for continuous reciprocating motion, particularly in applications that demand frequent bending in demanding industrial and mining environments. Typical installations include power supply and control systems for modern underground mining machinery.
Widely used across major mining operations for:
-
Underground mining mobile equipment
-
Drill jumbos and tunneling jumbos
-
Tunnel boring machines (TBMs)
-
Shearer machines
-
Draglines
-
LHD (load-haul-dump) machines
-
Rock drills
FAQ
What is the minimum bending radius of this drilling jumbo cable?
The bending radius is customized to the specific reeling application and cable outer diameter. As a general guideline, it can be designed to achieve a dynamic bending radius of 6 to 8 times the cable outer diameter. Please share your installation parameters so our engineers can confirm the optimal design.
Is this cable available with MSHA or other mining certifications?
Yes. Upon request, we manufacture cables in compliance with relevant international and regional standards, including MSHA, AS/NZS, and CAN/CSA, among others. Inquire with your specific certification needs.
What voltage rating does this cable support?
The standard design supports a rating of 0.6/1 kV. Higher voltage ratings can be engineered to suit your equipment’s requirements. We recommend verifying the required rating with your electrical specification before ordering.
What is the typical lead time and minimum order quantity (MOQ)?
Lead times and MOQ are project-specific and depend on the technical design and order volume. Contact our sales team with your target specifications and quantity, and we will provide a detailed quotation within 24 hours.
