1.Application
The product is manufactured according to the stand of GB12706 or IEC,BS,upon request, which is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively
2.Standard:
IEC60227,BS6004,GB/T 5023,JB/T 8734
3.Specification

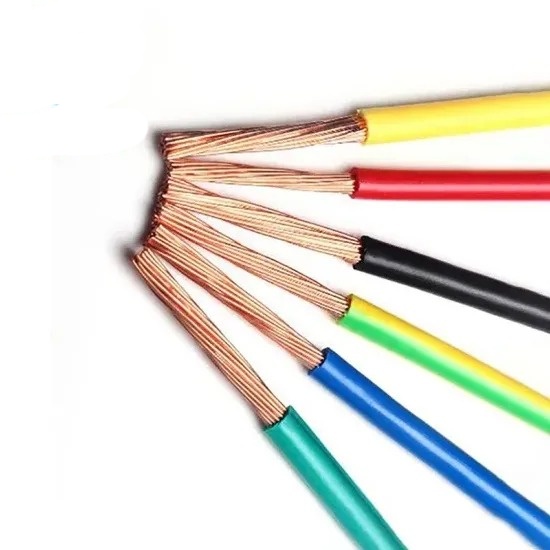

| H07V-R H07V-U H05V-R H05V-U BY 227IEC01/05 equivalent to VDE 0281 BS6004 | |||||
|---|---|---|---|---|---|
| Cross Section (mm2) |
Conductor Construction (No/mm) | Insulation Thickness (mm) | Overall Diameter Max (mm) | Min Insulation Resistance@ 70ºC (ohm/Km) | Weight Approx (Kg/Km) |
| 1×0.5 | 1/0.80 | 0.6 | 2.4 | 0.015 | 8 |
| 1×0.75 | 7/0.97 | 0.6 | 2.8 | 0.012 | 11 |
| 1×0.75 | 1/0.97 | 0.6 | 2.6 | 0.012 | 11 |
| 1×1.0 | 7/0.43 | 0.6 | 3.0 | / | 14 |
| 1×1.0 | 1/1.13 | 0.6 | 2.8 | 0.011 | 14 |
| 1×1.5 | 7/0.52 | 0.7 | 3.4 | 0.010 | 21 |
| 1×1.5 | 1×1.38 | 0.7 | 3.3 | 0.011 | 20 |
| 1×2.5 | 7/0.67 | 0.8 | 4.2 | 0.009 | 32 |
| 1×2.5 | 1×1.78 | 0.8 | 3.9 | 0.010 | 31 |
| 1×4 | 7/0.85 | 0.8 | 4.8 | 0.0077 | 45 |
| 1×4 | 1/2.25 | 0.8 | 4.4 | 0.0085 | 45 |
| 1×6 | 7/1.04 | 0.8 | 5.4 | 0.0065 | 65 |
| 1×6 | 1/2.76 | 0.8 | 4.9 | 0.0070 | 65 |
| 1×10 | 7/1.35 | 1.0 | 6.8 | 0.0065 | 110 |
| 1×10 | 1/3.57 | 1.0 | 6.4 | 0.0070 | 110 |
| 1×16 | 7/1.70 | 1.0 | 8.0 | 0.0050 | 165 |
| 1×25 | 7/2.14 | 1.2 | 9.8 | 0.0050 | 264 |
| 1×35 | 7/2.52 | 1.2 | 11.0 | 0.0040 | 360 |
| 1×50 | 19/1.78 | 1.4 | 13.0 | 0.0045 | 490 |
| 1×70 | 19/2.14 | 1.4 | 15.0 | 0.0035 | 685 |
| 1×95 | 19/2.52 | 1.6 | 17.5 | 0.0035 | 946 |
| 1×120 | 37/2.03 | 1.6 | 19.0 | 0.0032 | 1181 |
| 1×150 | 37/2.25 | 1.8 | 21.0 | 0.0032 | 1453 |
| 1×185 | 37/2.52 | 2.0 | 23.5 | 0.0032 | 1821 |
| 1×240 | 61/2.24 | 2.2 | 26.5 | 0.0032 | 2383 |
| 1×300 | 61/2.50 | 2.4 | 29.5 | 0.0030 | 2983 |
| 1×400 | 61/2.85 | 2.6 | 33.5 | 0.0028 | 3800 |
4.Packing
Packing in wooden drums,steel wooden drums or as customer’s requirement.
