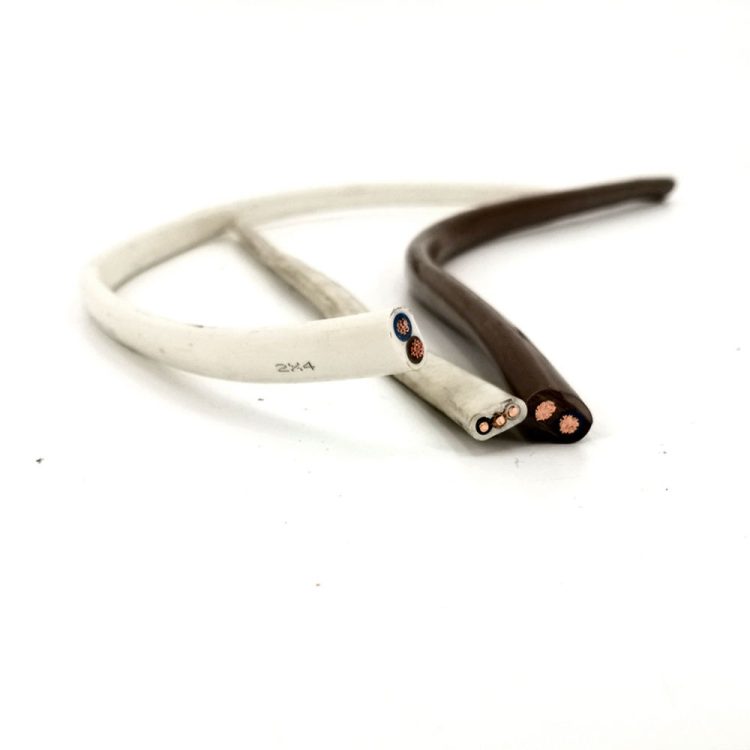

H03V-U(k),H03VV-F,H05V-U(K),H05VVF PVC electric wire
| Product Name | Copper core PVC insulated non-sheathed cable |
|---|---|
| Standard | GB/T5023-2008 ( Equivalent to IEC 60227-1997 ) |
| Conductor | Copper |
| Insulation | PVC |

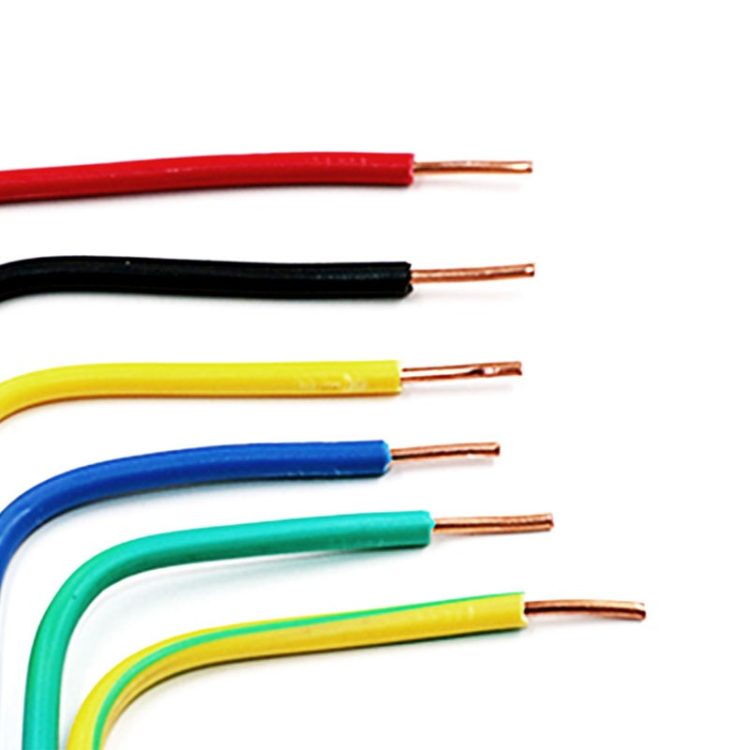

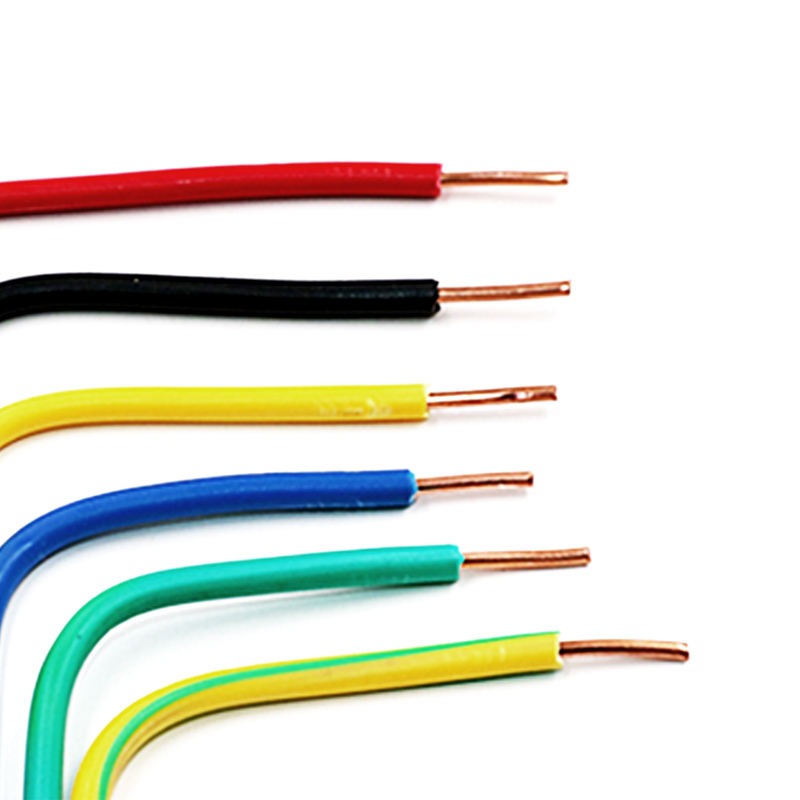

| Color | red, yellow, blue, green, black, white, brown, two-color (yellow-green) |
| Model | BV BVR |
| Specification | 0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, etc. |
| Rated voltage | 300/300V ; 300/500V ; 450/750V |
| Application | Socket connection line, lighting, switch, air conditioner, distribution box, building wiring, etc. |
Service Performance
1. Long-term working temperature: not be higher than 70°C
2. When laying the cable, the ambient temperature should not lower than 0°C
3. Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter >25mm.
