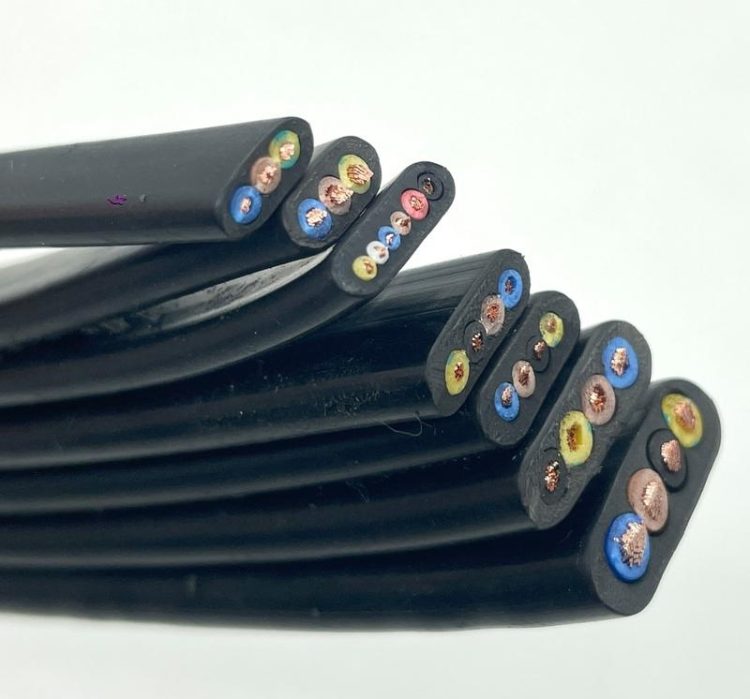

Flat Drag Chain Cable (Highly Flexible Flat Cable for Drag Chains)

Key Features

Exceptional flex life: Over 6 million bending cycles without conductor breakage
Abrasion resistant and flame retardant
Oil resistant, cold resistant, UV resistant – suitable for harsh environments
Designed for continuous flexing in cable carriers with zero forced tension

Applications

This flat drag chain cable is a flexible control and connection cable widely used in dry or damp indoor drag chain systems that require reciprocal free bending movement. Typical installations include:

Machine tools and CNC machining centers
Material handling and logistics conveying systems
Port machinery and heavy equipment
Robotics, robotic arms, and linear motion systems
Laser cutting machines and mechanical arms
Woodworking, ceramic, and steel mill machinery
Medical and fast-moving automation equipment

Especially Suitable For: Drag chain installations or similar automated systems that require an extremely small bending radius.

Technical Specifications

Conductor

Fine stranded oxygen-free copper wires according to DIN VDE 0295 Class 6

Insulation

Imported special NBR (Nitrile Butadiene Rubber) compound

Insulation Color Code

Color coded or number coded cores; for cables with 3 cores and above, a green/yellow ground core is included

Outer Sheath

Imported special NBR compound
Sheath color: Black, grey, orange

Need a custom flat drag chain cable configuration, a sample, or technical data sheets for your project? Contact our engineering team today – we support procurement engineers and EPC contractors with specification-grade cable solutions.
