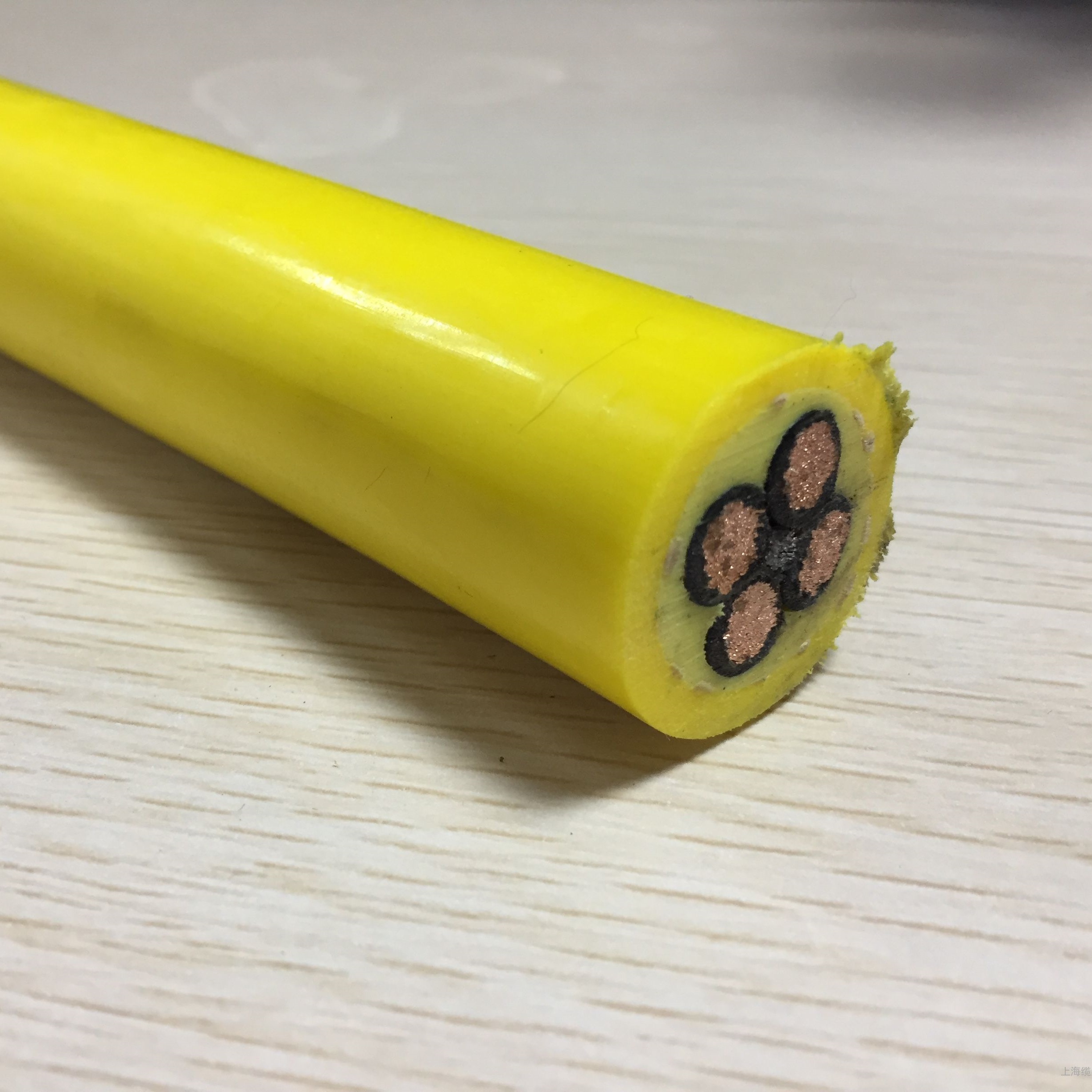

Grab Cable for Waste Incineration Plants

Engineered for the demanding environment of waste-to-energy plants and garbage incinerators, our grab bucket cable guarantees reliable 24/7 continuous operation under extreme mechanical stress and chemical exposure. Built for non-stop reeling and dereeling, it consistently delivers a service life of 1 to 2 years in the harshest conditions where acids, alkalis, oil and moisture are present.

Cable Construction & Technical Specifications

Conductor: Fine stranded oxygen-free copper, VDE 0295 Class 6
Insulation: Imported high-strength TPE compound specifically designed for coiling/reeling applications
Core Identification: Color coded
Strength Member: 24-carrier DuPont™ Kevlar® braided mesh – maintains core stability, balances stress distribution and concentrates tensile forces evenly
Sheath: Imported PUR (polyurethane) compound formulated for reeling cable service
Sheath Color: Yellow or black (custom colors available on request)
Bending Radius: 8 × cable outer diameter
Rated Voltage: 450/750 V (for conductor cross-section ≥0.5 mm²)
Test Voltage: 2500 V
Manufacturing Standard: Complies with German VDE standards; performance consistently exceeds typical national GB requirements

Why Standard Grab Cables Fail

In waste incinerator crane applications, ordinary grab cables frequently suffer from:

Twisting and kinking
Bulging and jacket peeling
Core breakage and cracking
Unstable signal transmission
Undetectable break points

These failures stem from an unstable cable structure, insufficient tensile strength and poor chemical resistance. When the cable cannot withstand the high-frequency torsion, continuous bending and aggressive on-site environment, production downtime escalates and operating costs rise.

Our Torsion-Resistant Grab Cable – Key Advantages

We manufacture our grab cable on a 3+3 large-scale back-twist strander, which ensures the cable core is exceptionally round and compact while effectively releasing torsional stress from the individual core units. The full extrusion process bonds the inner jacket firmly to the core, preventing separation between conductor and sheath during constant reeling.

Performance features:

Abrasion resistant and oil resistant
Flexible bending with excellent fatigue life
UV resistant – no jacket cracking under prolonged sunlight
Acid & alkali resistant – suitable for the most aggressive waste plant environments
Temperature range: -40 °C to +105 °C
Specific tensile strength: 38–45 MPa

Contact our engineering team to discuss your crane specifications, custom lengths, or special sheathing requirements.

4. FAQ

What makes this grab cable suitable for continuous reeling in a waste incinerator?
It combines a Kevlar® braided strength member with a 3+3 back-twist stranded core and a full-extrusion PUR jacket. This design handles constant torsion, high tensile loads and harsh chemical exposure without twisting, bulging or jacket separation.

How long will the cable last under 24/7 duty cycles?
Designed for 1 to 2 years of non-stop operation, it substantially reduces unplanned downtime and cable replacement frequency compared to standard industrial cables used in the same environment.

Can the cable be ordered in custom lengths and colors?
Yes. Standard sheath colors are yellow and black, but we supply custom colors, lengths and cross-sections to match your project requirements and reeling equipment.

Which standards does the cable meet?
The conductor is fabricated to VDE 0295 Class 6, and overall construction follows German VDE principles, with performance exceeding conventional GB standards. Test voltage is rated at 2500 V.

What is the minimum bending radius and operating temperature?
The minimum bending radius is 8 times the cable outer diameter. The operating temperature ranges from -40 °C to +105 °C, making it suitable for both freezing outdoor conditions and high-temperature zones near the furnace.

Ready to specify your grab bucket cable?
Request a quotation or ask our technical team for a sample against your duty cycle.
