1 .Rating Voltage:
600/1000V ,1000/1800V DC
Temperature:-40°C– 120°C
2. Description:

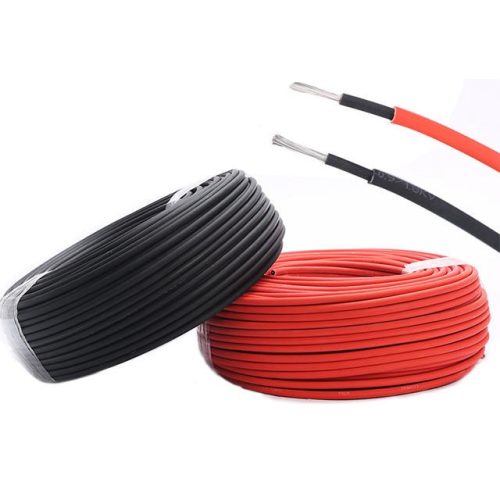

(1)Conductor: Stranded Tinned annealed copper wire
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red
3.Marking on cable :
TÜV 2PfG1169 PV1-F 1×**mm2 UV Res DC 1.8KV AC 0.6/1KV SOLAR CABLE
4.Application:
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
5.General Characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
6.TECHNICAL PARAMETER DATA:
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness |
Nominal Sheath thickness |
Nominal Overall diameter |
Nominal Cable weight |
Max.Resistance of conductor at 20ºC |
Current Carrying Capacity |
|---|---|---|---|---|---|---|---|
| Single core Solar cable PV1-F | |||||||
| No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) | A |
| 1 x 1,5 | 30 x 0,25 | 0,8 | 0,8 | 4.8 | 38 | 13,7 | 30 |
| 1 x 2,5 | 50 x 0,25 | 0,85 | 0,9 | 5.4 | 46 | 8,21 | 41 |
| 1 x 4 | 56 x 0,30 | 0,85 | 1,0 | 6.1 | 61 | 5,09 | 55 |
| 1 x 6 | 84 x 0,30 | 0,9 | 1,1 | 7.0 | 90 | 3,39 | 70 |
| 1 x 10 | 80 x 0,40 | 0,9 | 1,2 | 8.2 | 131 | 1,95 | 98 |
| 1 x 16 | 128 x 0,40 | 0,9 | 1,2 | 9.3 | 187 | 1,24 | 132 |
| 1 x 25 | 200 x 0,40 | 0,9 | 1,2 | 10.7 | 278 | 0,795 | 176 |
| 1 x 35 | 280 x 0,40 | 0,9 | 1,2 | 12.4 | 374 | 0,565 | 218 |
