1.Application

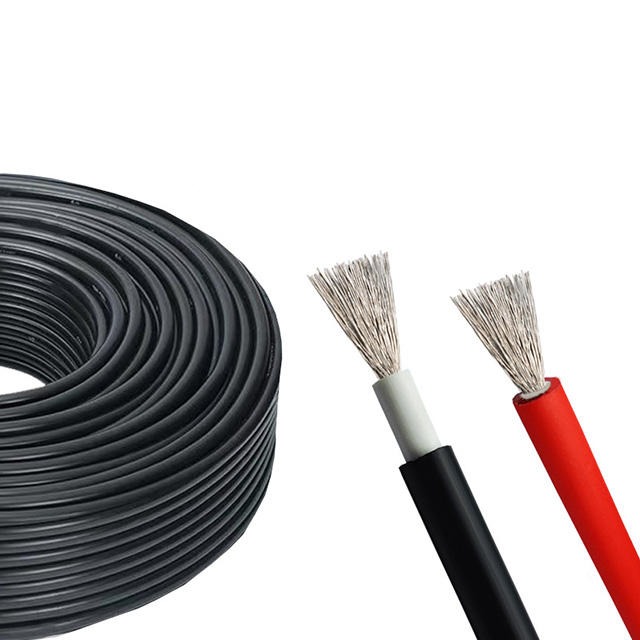

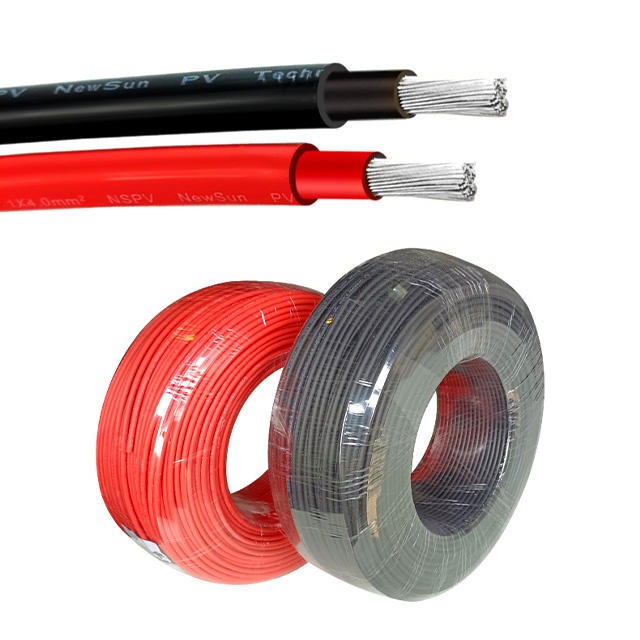

TUV Approved Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in a fixed installation, internal connection of solar
panels. This product has excellent UV-resistant performance and is TUV approved.
2.Product Description (TUV and UL certificate)
1 .Standard: 2 PFG 1169 08.2007 and UL 4703
2 . Conductor Material: Stranded tinned copper
3. Insulation Material: XLPE
4. Sheath Material:XLPE
5. standard: TUV 2Pfg 1169 08.07
6. Rated voltage: AC Uo/U0.6~1.0KV, DC1.8KV
8.Ambient temperature: -40~+90C
9. The expected period of use: 25years
10. Flame rated IEC60332-1-2
3.Characteristic of solar cable:
1. Double insulation, electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4. Halogen-free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. TUV and UL approved
4. Technical parameters of solar cable
| No. Of cores x Construction （mm2） |
Conductor Construction （n / mm） |
Conductor No./mm | Insul. Thick. (mm) |
Current Aarring Capacity (A) |
|---|---|---|---|---|
| 1×1.5 | 30/0.25 | 1.58 | 4.9 | 30 |
| 1×2.5 | 50/0.256 | 2.06 | 5.45 | 41 |
| 1×4.0 | 56/0.3 | 2.58 | 6.15 | 55 |
| 1×6 | 84/0.3 | 3.15 | 7.15 | 70 |
| 1×10 | 142/0.3 | 4 | 9.05 | 98 |
| 1×16 | 228/0.3 | 5.7 | 10.2 | 132 |
| 1×25 | 361/0.3 | 6.8 | 12 | 176 |
| 1×35 | 494/0.3 | 8.8 | 13.8 | 218 |
| 1×50 | 418/0.39 | 10 | 16 | 280 |
| 1×70 | 589/0.39 | 11.8 | 18.4 | 350 |
| 1×95 | 798/0.39 | 13.8 | 21.3 | 410 |
