Detailed Description

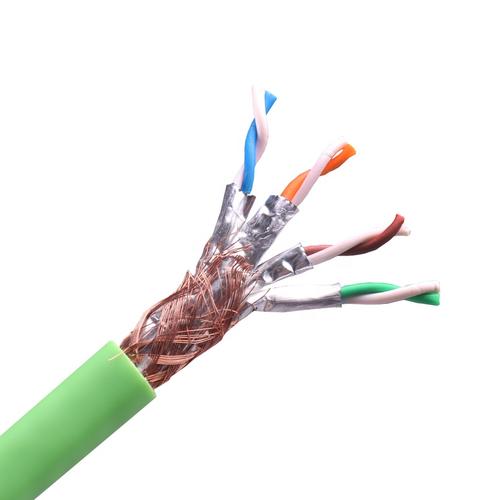

Industrial Ethernet Is Not IT Ethernet
An office Ethernet cable (Cat5e UTP patch cord) is designed for one installation event: plug it in and never touch it again. Solid-core copper conductors, minimal shielding, fragile RJ45 plastic tabs, and zero tolerance for movement.
An industrial Ethernet cable operates in a fundamentally different environment:
- Movement: Robot arms, gantry axes, and portable equipment subject the cable to repeated flex, twist, and tension
- EMI: VFD drives, contactors, and welding equipment generate electromagnetic noise orders of magnitude above an office environment
- Environment: Oil, coolant, UV, moisture, and temperature extremes are normal — not exceptional
- Vibration: Machine vibration can shake an RJ45 connector loose — the click-lock tab is not designed for this
Cat5e vs Cat6 — Choosing the Right Bandwidth
| Parameter | Cat5e (Industrial) | Cat6 (Industrial) |
|---|---|---|
| Bandwidth | 100 MHz | 250 MHz |
| Max data rate | 100 Mbps (1 Gbps possible short runs) | 1 Gbps (10 Gbps up to 55 m) |
| Core count | 4 cores (2 pairs) | 8 cores (4 pairs) |
| OD (typical) | 6.0–6.5 mm | 7.0–8.0 mm |
| Bend radius | 8 × OD | 10 × OD |
| Connector | M12 D-coded (4-pin) or RJ45 | RJ45 (8-pin) or M12 X-coded |
| Cost vs Cat5e | Baseline | +20–30% |
| Best for | PROFINET, EtherCAT, PLC I/O, simple vision | GigE Vision cameras, high-speed data, future-proofing |
For PROFINET specifically: the protocol standard specifies Cat5e as sufficient for 100 Mbps. Upgrading to Cat6 does not improve PROFINET performance — the protocol does not use the additional bandwidth.
M12 D-Coded — The Industrial Ethernet Connector
The RJ45 connector was designed for office IT — not for factory floors. The M12 D-coded connector was designed specifically for industrial Ethernet:
| Feature | RJ45 | M12 D-Coded |
|---|---|---|
| Locking mechanism | Plastic snap tab (fragile) | Metal screw thread (vibration-proof) |
| Ingress protection | IP20 (no protection) | IP67 (dust-tight, water-immersion) |
| Mating cycles | ~750 (office rating) | ≥100 (industrial rating) |
| Cable retention | Tab can break or snag | Screw lock cannot release unintentionally |
| Field assembly | Requires crimp tool | Tool-less IDC options available |
| Size | Standard | Compact — fits through small carrier openings |
Why Office Ethernet Cable Fails in Industrial Applications
| Failure Mode | Cause | Office Cable Response | Industrial Flex Cable Response |
|---|---|---|---|
| Conductor breakage | Repeated flexing | Solid core fractures within hundreds of cycles | Stranded conductor survives millions |
| Shield failure | Foil-only shield tears during motion | Foil + drain wire (F/UTP) | Foil + braid (SF/UTP) — mechanical robustness |
| Connector disconnection | Vibration | Plastic tab fails | M12 screw lock or RJ45 with latch protection |
| Jacket degradation | Oil, UV, coolant | PVC degrades, cracks | PUR — oil/UV/chemical resistant |
| Crosstalk increase | Flex deforms pair geometry | No mitigation | Optimized twist ratio for flex stability |
Why Choose Yichi Cable Flex Ethernet?
- Pre-assembled and 100% tested: Every cable assembly is tested for continuity, wire map, and Cat5e/Cat6 certification — not just a visual inspection
- Custom lengths to 0.1 m increment: Order exactly what you need — 2.3 m, 5.7 m, 11.2 m — no "standard lengths" forcing extra cable loops
- Connector flexibility: M12 straight, M12 90° angled, RJ45 straight, or hybrid — match your machine design
- PUR jacket as standard for flex applications: PVC is available for cost-sensitive fixed installations, but we default to PUR for any application involving movement — it is the right engineering choice
- PROFINET Type C compliant: Tested and verified — not a "PROFINET-compatible" claim without documentation
