Detailed Description

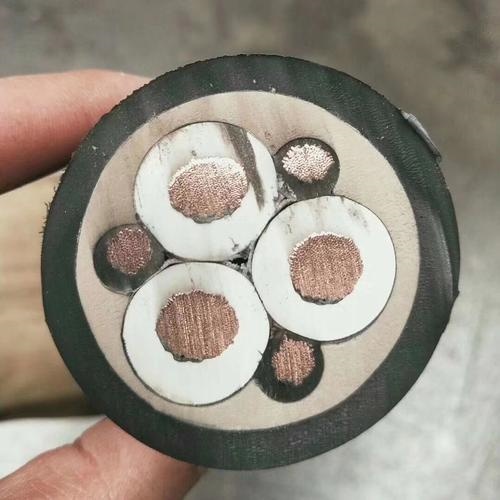

The TBM Trailing Cable — Powering Kilometers of Tunnel
A tunnel boring machine advances through rock or soil at 5–50 meters per day, continuously pushing forward for months or years. The machine's power, control, and communication all flow through a single trailing cable that extends from the tunnel portal to the moving machine — sometimes over 1000 meters.
The cable must:
- Deliver 1–10+ MW at 3.6–15 kV through 200–1000+ m of cable
- Survive being dragged through water, mud, bentonite slurry, and rock dust
- Withstand occasional physical contact with the tunnel wall and support installations
- Carry the full tensile load of its own weight — a 1000 m TBM cable weighing 15–25 kg/m creates 15–25 tonnes of tension at the reel
- Provide uninterrupted fiber optic communication for TBM guidance systems, cutterhead condition monitoring, and conveyor control
TBM Types — Different Machines, Same Cable Demands
| TBM Type | Ground Condition | Cable Environment | Special Requirement |
|---|---|---|---|
| Hard-rock (open gripper) | Solid rock, dry to wet | Water, rock dust, occasional falling rock | High tensile for long advance |
| EPB (earth pressure balance) | Soft ground, wet | Bentonite foam, groundwater, soil slurry | Water-blocked construction essential |
| Slurry TBM | Under river, saturated soil | Pressurized bentonite slurry, high humidity | Stainless steel tensile + sealed jacket |
| Microtunneling | Various, small diameter | Confined space, remote operation | Compact OD, integrated fiber |
All types share the same fundamental requirement: the cable must survive the entire tunnel drive without replacement.
Fiber Optic — The TBM's Nervous System
Modern TBM guidance systems depend on real-time data from multiple sensors distributed across the machine. Fiber optic cables carry:
- Guidance data: Laser theodolite position, inclination, and roll — millimeter-level precision over kilometers
- Cutterhead monitoring: Individual disc cutter wear, temperature, and vibration — predictive maintenance
- Ring building data: Segment erector position and concrete pressure — tunnel lining quality
- Conveyor control: Belt speed, tension, and alignment — continuous muck removal
- Atmosphere monitoring: Methane, CO, dust concentration — safety-critical in gassy ground
Why Choose Yichi TBM Cable?
- 100 % PD tested at 2 U₀: Every meter of MV cable is partial discharge tested — a PD failure 800 m into a 1000 m cable means scrapping the entire cable
- Tensile engineered for full advance: We calculate the steel core cross-section for your maximum tunnel length — not a standard catalog size
- Fiber optic integration: In-house fiber cabling — tested for attenuation before and after cable manufacturing
- Water-blocked construction: For EPB and slurry TBMs — swellable tapes and yarns prevent longitudinal water migration
- ATEX configurations: Methane-rated for gassy ground — Zone 1/2 certification available
