Construction :
1.Conductor: 6192Y/6242Y Bare copper wire(solid) class1
Bare copper multi wire(stranded) class2
2.Insulation:PVC Compound
4.Sheath: PVC Compound
3. Sheath Color:
Grey , Black , White
Techical Data :
Standard:BS6004
Fixed installed: -30ºC up to +70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage: 6192Y/6242Y 300/500V
Min inner bending radius:6D(D=Outdiameter)
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:

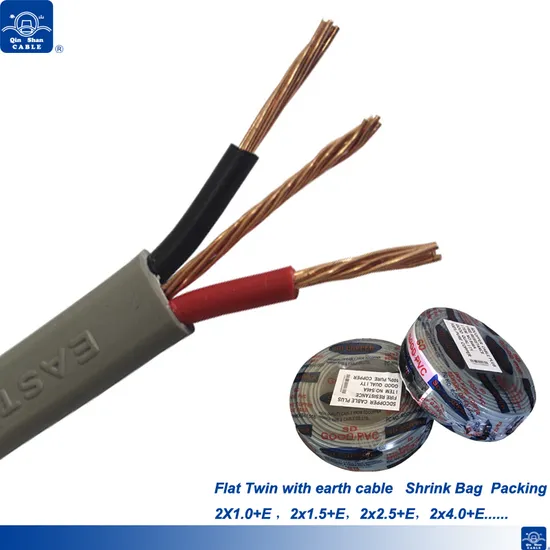

Flat Twin with earth cable 6192Y/6242Y suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).
Specification Parameter :
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness |
Nominal Sheath thickness |
Nominal Overall diameter |
Nominal Cable weight |
Max.Resistance of conductor at 20ºC |
|---|---|---|---|---|---|---|
| No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) |
| 6192Y / 6193Y Twin flat BS6004 | ||||||
| 2×1.0 | 2X1.13 | 0,6 | 0,8 | 4.2×6.5 | 49 | 18,10 |
| 2×1.5 | 2X1.38 | 0,7 | 0,8 | 4.6×7.4 | 65 | 12,10 |
| 2×2.5 | 2X1.78 | 0,8 | 0,8 | 5.4×8.8 | 97 | 7,41 |
| 2×4.0 | 2X7/0.85 | 0,8 | 0,9 | 6.1×10.2 | 138 | 4,61 |
| 2×6.0 | 2X7/1.04 | 0,8 | 0,9 | 6.9×11.5 | 189 | 3,08 |
| 2×10.0 | 2X7/1.35 | 1,0 | 0,9 | 8.2×14.0 | 295 | 1,83 |
| 2 x 16.0 | 2X7/1.70 | 1,0 | 1,0 | 9.4×16.2 | 430 | 1,150 |
| 3×1.0 | 3X1.13 | 0,6 | 0,8 | 4.2×8.9 | 71 | 18,10 |
| 3×1.5 | 3X1.38 | 0,7 | 0,8 | 4.6×10.2 | 95 | 12,10 |
| 3×2.5 | 3X1.78 | 0,8 | 0,8 | 5.4×12.2 | 142 | 7,41 |
| 3×4.0 | 3X7/0.85 | 0,8 | 0,9 | 6.1×14.5 | 206 | 4,61 |
| 3×6.0 | 3X7/1.04 | 0,5 | 0,9 | 6.9×16.2 | 280 | 3,08 |
| 3×10.0 | 3X7/1.35 | 1,0 | 0,9 | 8.2×19.8 | 438 | 1,83 |
| 3 x 16.0 | 3X7/1.70 | 1,0 | 1,0 | 9.4×22.9 | 640 | 1,150 |
