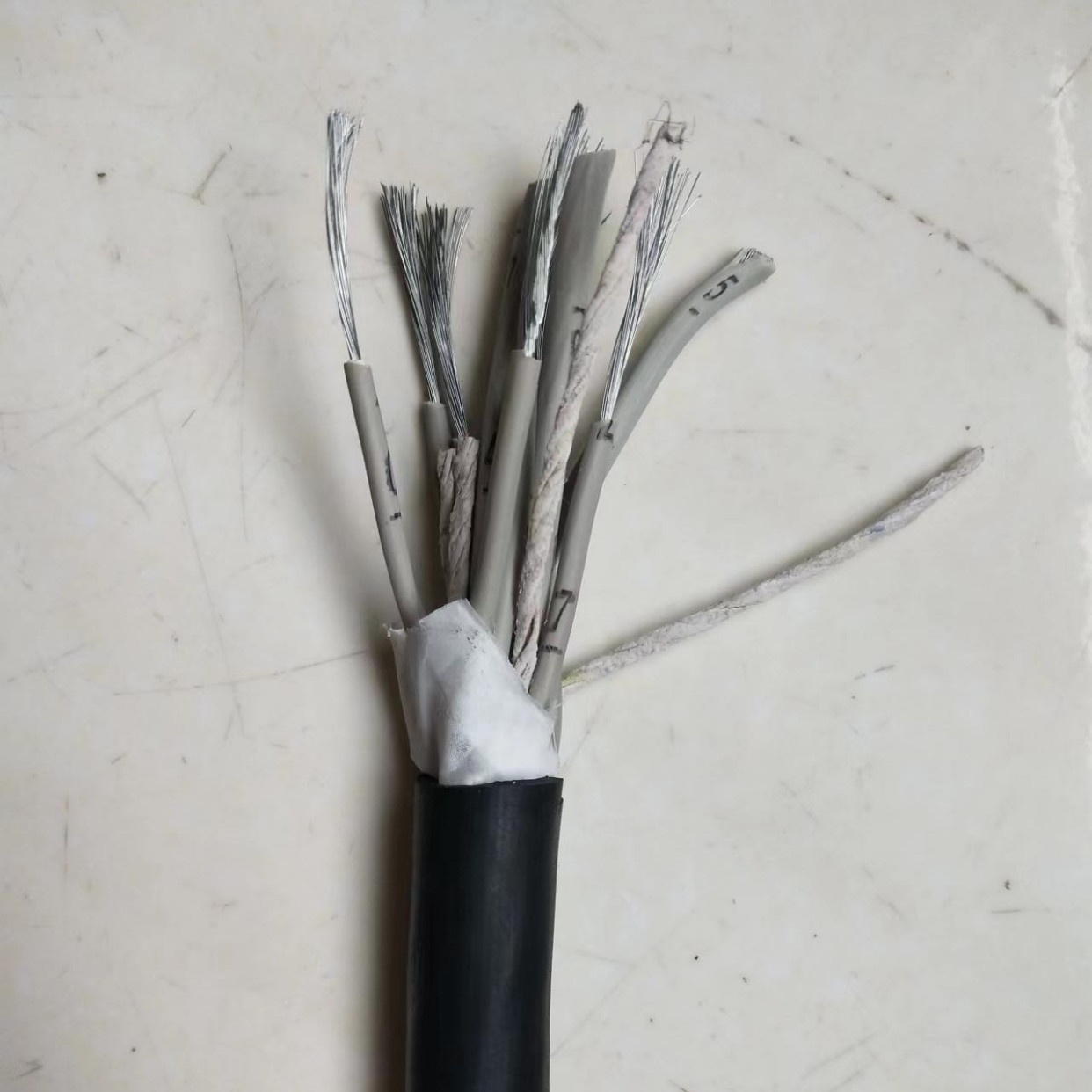

Marine Control Cable (Shipboard Control Cable)
Engineered for reliable signal transmission and control in the world’s most demanding marine environments, our marine control cables serve as the nervous system of shipboard telecommunications, electronic data systems, information processing equipment, and integrated control networks. They are a core component for control circuits aboard all types of vessels, offshore platforms, and maritime installations, delivering consistent performance under constant exposure to moisture, oil, vibration, and extreme temperatures.
These cables are manufactured under strict quality controls and hold a CCS (China Classification Society) Type Approval Certificate, giving EPC contractors, shipyards, and procurement engineers full confidence for projects requiring class-certified marine cable.
Compliance and Standards
Our shipboard control cables are designed and tested in accordance with the latest international maritime standards:
- IEC 60092-350:2020 – Electrical installations in ships – Part 350: General construction and test methods for power, control and instrumentation cables for shipboard and offshore units.
- IEC 60092-376:2017 – Electrical installations in ships – Part 376: Cables for control and instrumentation circuits 150/250V (300V).
- CCS Type Approval – Certification by the China Classification Society, widely accepted for newbuilding and retrofit projects.
Performance Characteristics
Purpose-built for the harsh marine and offshore environment, every cable incorporates multiple protective features:
- Heat-resistant – maximum continuous conductor operating temperature of 90°C.
- Fire-resistant and flame-retardant – minimizes flame propagation and maintains circuit integrity under fire conditions.
- Oil-resistant and moisture-proof – compounds withstand hydrocarbons, lubricants, and condensation.
- Seawater-resistant – engineered to resist saltwater corrosion and immersion.
- Rated voltage: 150/250V (300V) as per IEC 60092-376; 300V variants also available.
Cable Construction and Technical Data
| Component | Specification |
|---|---|
| Conductor | Stranded oxygen-free plain copper, fine wire construction for excellent flexibility and conductivity |
| Insulation | EPR (Ethylene Propylene Rubber) – superior thermal stability and electrical properties |
| Sheath | Rubber compound; multiple options including chloroprene (CR), chlorosulfonated polyethylene (CSP), and other oil-resistant marine-grade elastomers |
| Armor (reinforcement) | Steel wire braid or galvanized steel wire armor, providing mechanical protection in installation and service |
| Core identification | Numbered cores or color-coded as per customer specification |
Available Marine Control Cable Types (CCS Certified)
We produce a wide range of IEC 60092-376 designs to match exact project requirements. Commonly specified models include:
- CKEFR – EPR insulated, chloroprene (CR) sheathed, unarmored marine control cable.
- CKEFRP – EPR insulated, chloroprene sheathed, with overall tinned copper wire braid screen.
- CKEFR82 – EPR insulated, chloroprene sheathed, steel wire braid armor.
- Additional configurations (e.g., individually shielded pairs, LSZH sheaths, alternative rubber compounds) can be engineered on request.
For detailed dimensions, weight, and electrical characteristics, please contact our technical team with your voltage, core count, and screening/armoring needs.
Why Choose Our Marine Control Cables
- Full CCS certification simplifies class approval documentation for your vessel or platform.
- Custom cable design – we tailor construction, sheath material, armor type, and core configuration to your specification.
- Consistent batch quality thanks to in-house extruded insulation and rigorous in-line testing.
- Global delivery and technical support from an experienced manufacturer accustomed to complex international marine projects.
Ready to specify or request a quote for your next shipbuilding or offshore project? Contact our engineering sales team today for a competitive proposal and CCS-certified sample.
FAQ
What certifications do your marine control cables hold? Our cables are type-approved by CCS (China Classification Society) and fully comply with IEC 60092-350 and IEC 60092-376. Upon project requirement, we can also coordinate testing and certification with other classification societies such as DNV, ABS, LR, or BV through our established quality system.
What voltage ratings are available for shipboard control cables? Standard rated voltage is 150/250V (300V) as defined in IEC 60092-376. We also manufacture 300V-rated control cables for heavier signal circuits. Custom voltage requirements can be discussed with our engineering department.
Can I order armored marine control cable? Yes. We supply unarmored (CKEFR), screened (CKEFRP), and armored variants (CKEFR82 with steel wire braid armor). Armor options include galvanized steel wire braid or steel wire armor to protect against mechanical stress during installation and operation.
Which rubber sheath material do you recommend for oil and seawater resistance? For most shipboard applications chloroprene (CR) sheathing offers an excellent balance of oil resistance, weatherability, and abrasion resistance. For environments with higher oil and chemical exposure, CSP or other specialized compounds are available. Our team can help select the optimal compound based on your installation conditions.
Do you provide marine control cables for retrofitting existing vessels? Absolutely. We support both newbuilding and retrofit projects. Small minimum order quantities and flexible production allow us to supply replacement marine control cables quickly, even for older vessel specifications.
