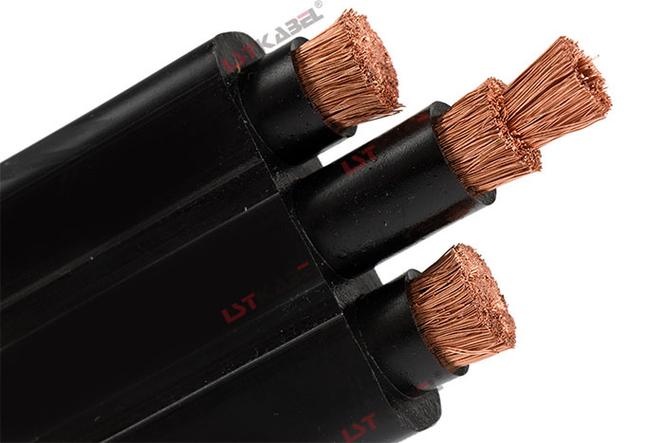

RTG Reeling Cable (Rubber Tyred Gantry Crane Reeling Drum Cable)
Product Overview
This heavy-duty reeling cable is purpose-engineered for rubber tyred gantry (RTG) cranes and similar equipment operating in demanding industrial environments. It combines extreme abrasion resistance, superior flexibility, high tensile strength, and exceptional tear resistance to withstand continuous reeling and unreeling cycles on cable drums. The specially compounded insulation and jacket materials also deliver reliable waterproof, oil-resistant, UV-resistant, and flame-retardant performance.
Compared with ordinary rubber flat cables, this reeling drum cable offers a service life at least three to five times longer, significantly reducing downtime and replacement costs. It is designed for dry or damp indoor locations and for unguided, freely reciprocating movements without forced guidance – especially in applications where frequent bending and coiling on large reels protect the cable against tangling, abrasion, snagging, and scatter.
Typical applications span container terminals, bulk stockyards, mining operations, large loading and unloading yards, and other harsh-duty sites where RTG cranes and reeling systems must perform reliably.
Key Features & Benefits
-
Outstanding flex life: 3–5x longer than standard rubber flat cables under constant reeling.
-
Wide temperature capability: Reliable operation from -40°C up to +105°C.
-
Rugged PUR outer jacket: Imported polyurethane delivers exceptional abrasion, tear, oil and UV resistance.
-
Reliable electrical safety: Test voltage 2500 V; conductors comply with VDE 0295 Class 6 fine-wire stranding.
-
Full customization: Core identification, jacket color and other parameters can be tailored to project specifications.
Typical Applications
-
Rubber tyred gantry (RTG) crane reeling systems
-
Ship-to-shore crane and yard crane cable drums
-
Stacker/reclaimer and continuous ship unloader reels
-
Mining and quarrying dragline, shovel and loader cables
-
Heavy material handling installations in ports, terminals and steel plants
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor | Super-fine stranded bare copper, VDE 0295 Class 6 |
| Insulation | Special flexible PVC compound |
| Core identification | Number coding or color coding (customizable) |
| Inner sheath | High-strength proprietary compound |
| Outer jacket | Imported polyurethane (PUR) |
| Jacket color | Grey, black, orange (other colors available on request) |
| Rated voltage | Conductor ≥ 0.5 mm²: 300/500 V Conductor < 0.5 mm²: 300/300 V |
| Test voltage | 2500 V |
| Temperature range | Fixed installation: -40°C to +105°C Moving/flexing installation: -40°C to +105°C |
| Minimum bending radius | Fixed installation: 5 × cable short diameter Moving installation: 7.5 × cable short diameter |
Note: “Cable short diameter” refers to the short side dimension for flat reeling cables; for round cables, apply the outer diameter.
Quality & Compliance
-
Conductor construction complies with VDE 0295 Class 6 / IEC 60228 Class 6
-
RoHS compliant materials available upon request
-
Manufacturing under ISO 9001 quality management system
To discuss your RTG reeling cable requirements, request a sample or obtain a competitive quotation, contact our engineering sales team today.
4. FAQ
Q: How does this RTG reeling cable achieve a longer service life?
A: The combination of super-fine VDE 0295 Class 6 copper conductors, a specially formulated PVC insulation, a high-strength inner sheath, and an imported polyurethane (PUR) outer jacket results in extreme flexibility, abrasion resistance and mechanical strength. Under comparable reeling conditions, these features extend the operational life to at least 3–5 times that of ordinary rubber flat cables.
Q: What is the temperature rating for continuous flexing applications?
A: The cable is rated for a continuous conductor operating temperature range from -40°C to +105°C in both fixed and moving installations, making it suitable for cold storage terminals and high-heat tropical port environments alike.
Q: Can the cable be customized for specific core counts, color coding or jacket color?
A: Yes. The core identification can be produced with numbering or color coding according to your project standards, and the outer PUR jacket can be supplied in grey, black, orange or other custom colors. Minimum order quantities may apply for unique color formulations.
Q: What is the minimum bending radius I should allow on the cable drum?
A: For fixed routing, allow a bend radius no smaller than 5 times the cable’s short diameter (flat cables) or outer diameter (round cables). For moving, flexing and reeling installations, the radius should be at least 7.5 times that dimension to ensure full mechanical and electrical life.
Q: What is the typical lead time for a custom-configured RTG reeling cable?
A: Lead times depend on the specific configuration, order volume and current production schedule. For a precise delivery estimate, please reach out to our sales team with your target specifications and quantity.
