Detailed Description

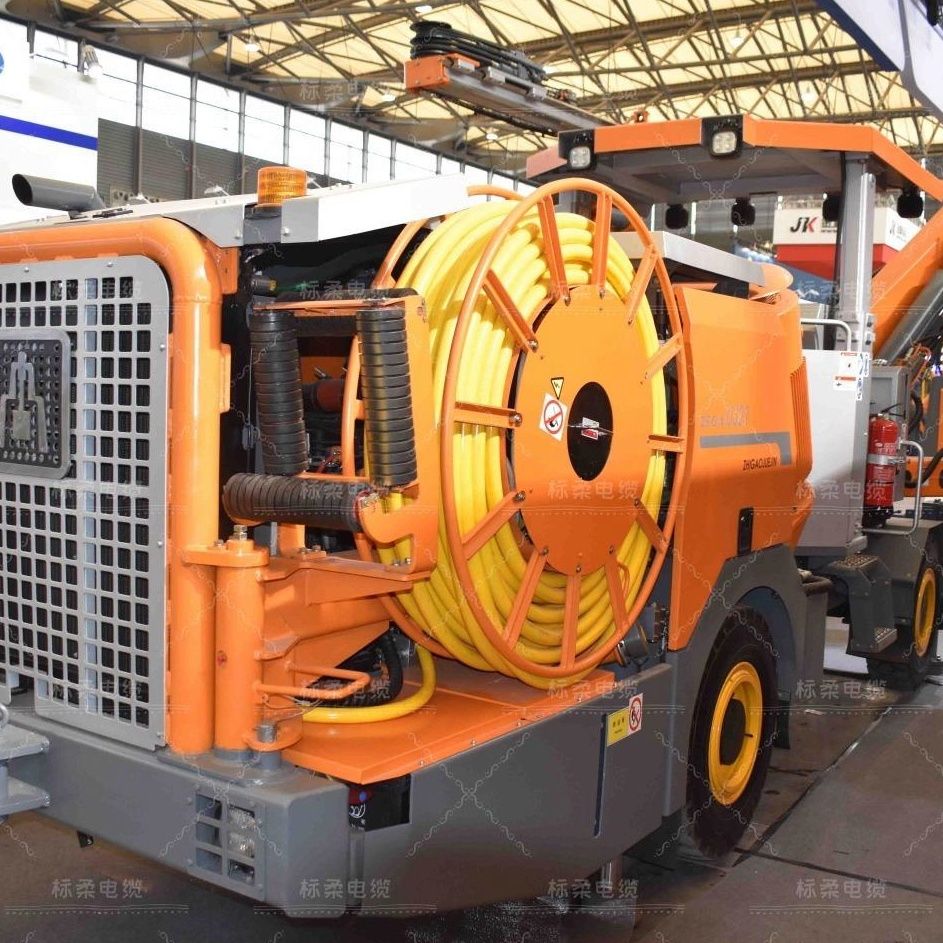

A Cable That Carries Load — Not Just Current
Most electrical cables are designed to do one thing: carry electrical current from point A to point B. The cable's mechanical strength is just enough to survive installation — it is not designed to carry external load.
A high tensile strength cable is fundamentally different: it is a load-bearing structural element that also carries electricity. The tensile core is the primary component, sized for the application's mechanical load. The copper conductors are secondary — integrated alongside or around the tensile core for power, signal, or data.
This changes everything about the cable's design:
- The tensile core is sized first — based on breaking strength and safety factor
- The conductors are added around it — in a configuration that does not compromise the tensile core's integrity
- The jacket protects both — the mechanical assembly and the electrical conductors — in an environment where the cable is under sustained tension
Tensile Core Materials — Steel vs Kevlar
| Property | Galvanized Steel Wire | Kevlar Aramid | Hybrid (Steel + Kevlar) |
|---|---|---|---|
| Tensile strength | 1 570–1 960 N/mm² | 300 N/mm² | Combined |
| Elongation at WLL | 0.1–0.3% | 0.3–0.5% | 0.2–0.4% |
| Weight | Heavy (7.85 g/cm³) | Light (1.44 g/cm³) | Moderate |
| Corrosion resistance | Galvanized (good) | Excellent (inert) | Excellent |
| Electrical conductivity | Conductive (ground path) | Non-conductive (isolated) | Selectable |
| Fatigue resistance | Good | Excellent | Excellent |
| Abrasion resistance | Excellent | Moderate (needs protection) | Excellent |
| UV resistance | Excellent | Moderate (needs jacket) | Excellent |
| Cost vs Steel | Baseline | 3–5× | 2–4× |
| Best for | Heavy lifting, industrial, cost-primary | Weight-critical, non-conductive, marine | Best of both, premium |
Safety Factor — The 5:1 Rule and Its Origins
The 5:1 safety factor (breaking strength ÷ working load limit) is specified in multiple standards:
- DIN 56950 — Entertainment technology — Machinery installations
- EN 12385 — Steel wire ropes — Safety
- IEC 60204-32 — Safety of machinery — Cable reeling equipment
- Material variability (3–5% variation in steel wire tensile strength)
- Manufacturing tolerances (termination efficiency typically 80–90% of rope strength)
- Dynamic loading (acceleration, shock, vibration can 2–3× static load)
- Degradation over service life (corrosion, fatigue, wear reduce strength over time)
Integrated Conductors — Power Where You Need It
The defining feature of a high tensile strength cable is that it combines load-bearing and electrical functions in one assembly:
| Configuration | Tensile Core | Electrical Conductors | Typical Application |
|---|---|---|---|
| Pure tensile | Steel or Kevlar | None | Simple lifting/rigging |
| Tensile + power | Central steel | 3–5 power conductors | Crane hook with powered attachment |
| Tensile + signal | Central steel | 2–12 signal cores | Winch with limit switch feedback |
| Tensile + data | Central Kevlar | Fiber optic + signal | Ropeway with communication and monitoring |
| Tensile + power + data | Hybrid | Power + fiber + signal | Offshore tension leg with full connectivity |
The conductors are stranded around the tensile core in a configuration that maintains equal load distribution. When the cable is under tension, the conductors experience the same elongation as the tensile core — stranded copper can accommodate 0.3–0.5% elongation without damage.
End Fittings — The Critical Interface
A high tensile cable's breaking strength is only as good as its end terminations. Swaged (cold-formed) steel fittings are the standard:
- Swaged eye: Forged steel eye swaged onto the cable end — accepts shackle or hook
- Threaded stud: Threaded steel stud swaged onto cable — for bolted connections
- Clevis / fork: Swaged fitting with clevis pin connection
- Custom: Customer-specified geometry — machined to print
- Load-rated: Marked with WLL and serial number
- Proof-tested: Loaded to 2× WLL before shipment
- Certificate-supplied: Material cert + load test cert + dimensional inspection
Why Choose Yichi Cable High Tensile Strength?
- Tensile-first design: We size the tensile core based on your WLL requirement — then add conductors around it. The mechanical requirement drives the design, not the electrical
- Proof-load tested: Every assembly is loaded to 2× WLL before shipment — we verify, not calculate
- Material certs included: Steel wire rope mill certificate, tensile test report, and jacket material certification with every order
- End fitting integration: Swaged fittings designed, manufactured, and tested in-house — no subcontracting to unknown quality
- Cross-industry experience: Crane, marine, theater, ropeway, offshore — we understand the different standards and safety factors for each industry
