Detailed Description

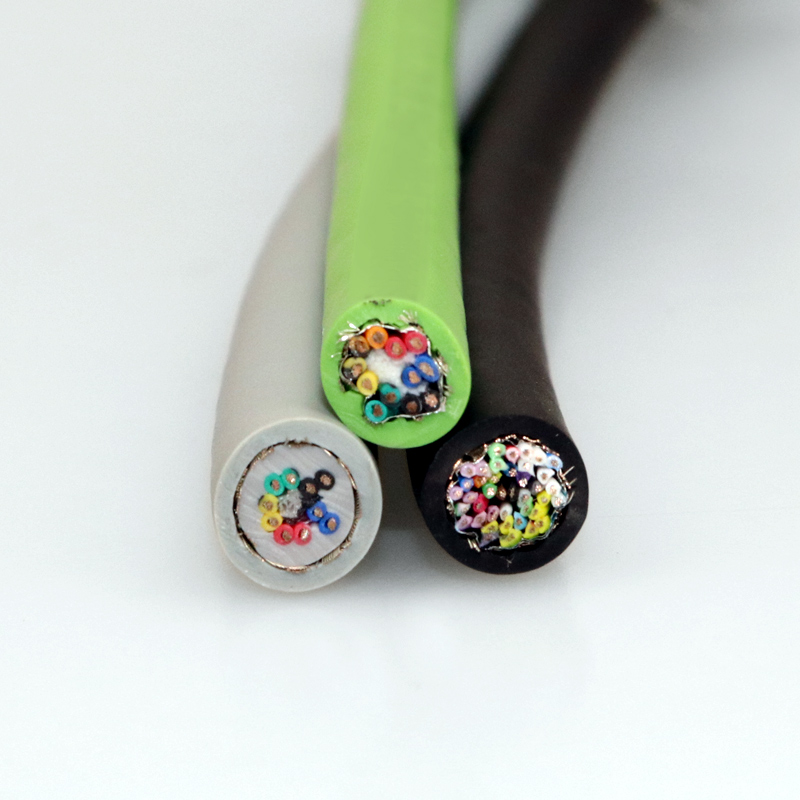

Motor Power Cable vs Standard Power Cable — What VFD Duty Requires
A motor power cable for inverter duty is not the same as a standard fixed-installation power cable. The difference is driven by the electrical stress created by modern PWM (pulse-width modulated) frequency converters:
- Voltage spikes: Inverter output produces repetitive voltage spikes at the motor terminals — typically 1.2–1.5× the DC bus voltage, with rise times of 50–500 ns. For a 400 V drive system, spikes can reach 1 200–1 500 V peak
- High-frequency components: PWM switching at 2–16 kHz generates harmonics up to several MHz that are carried by the power conductors and radiate from the cable
- Common-mode currents: The fast-switching voltage couples capacitively to ground through the motor, creating common-mode currents that flow back through the cable shield or ground path. Without a proper return path, these currents discharge through motor bearings — the well-known cause of premature bearing failure in VFD-driven motors
- Higher insulation rating: TPE or EPR insulation rated 90°C continuous (versus 70°C for standard PVC) withstands both the thermal load and the dielectric stress of repetitive voltage spikes
- Fine stranding: IEC 60228 Class 6 extra-fine copper for flexing applications, where standard Class 2 stranded conductors would fatigue and break
- Symmetric ground (3P+3PE): Three PE conductors positioned 120° apart (mirroring the phase conductors) carry common-mode currents symmetrically back to the drive, minimizing the circulating current that damages motor bearings
3P+PE vs 3P+3PE — Which Construction Do You Need?
| Construction | Standard | VFD-Recommended |
|---|---|---|
| Cores | 3P + 1 PE | 3P + 3 PE (symmetric) |
| Common-mode return | Single PE, asymmetric | Three PE, symmetric |
| Bearing current risk | Moderate | Reduced |
| Typical application | Fixed installation, short cable runs | Drag chain, long runs, high-switching-frequency VFDs |
| Cable OD / cost | Smaller / lower | +10–20% OD and cost |
For short cable runs (under 10 m) in fixed installation, 3P+PE is often sufficient. For drag chain applications, long runs, or high switching frequencies (8–16 kHz), 3P+3PE symmetric ground construction is the recommended specification.
Shielded vs Unshielded Motor Power Cable
| Consideration | Unshielded | Shielded (braid ≥85%) |
|---|---|---|
| Radiated EMI from power conductors | High | Reduced |
| Common-mode return path | Ground wire only | Shield + ground wire |
| Compliance with EMC directive (EN 61800-3) | Requires careful installation | Easier to achieve |
| Additional cost | — | +8–15% |
| Typical use | Fixed installs, short runs | Drag chains, sensitive environments, long parallel runs with signal cables |
When the motor cable runs parallel to encoder or signal cables (as in most machines), shielding the motor power cable is the cheapest way to keep EMI out of the feedback path.
Application Analysis: Motor Power Cables in Practice
- CNC machine tools: Spindle and axis servo motors draw high transient currents (10–100 A) with fast PWM switching. The power cable must carry this without overheating while flexing millions of cycles in the drag chain
- Robotics: Robot base-to-arm power routing sees continuous flexing and twisting. Class 6 stranding and a flexible jacket are essential; symmetric ground protects the robot's precision bearings
- Packaging lines: Multi-motor machines (10–50 motors) with dense cable trays benefit from shielded motor power cable to keep switching noise away from sensor and vision-system wiring
- HVAC and process plants: VFD-driven pumps and fans benefit from inverter-duty cable even in fixed installation — the 90°C insulation rating and spike withstand add margin over standard PVC power cable
- Machine tools with long travels: Gantry machines with 10–30 m motor cable runs require proper sizing and low-inductance construction to limit voltage drop and spike ringing at the motor
Why Choose Yichi Motor Power Cables
- VFD-engineered insulation: TPE and EPR core insulation rated 90°C, selected and tested for repetitive PWM voltage spike withstand — not a relabeled standard power cable
- Symmetric ground option: 3P+3PE construction manufactured with precision lay angles, proven to reduce bearing-damaging common-mode currents in inverter applications
- Drag-chain validated: 10+ million flex-cycle endurance testing with both bend radius and tension applied, matching real machine duty
- Full test documentation: Every reel ships with conductor resistance, insulation resistance, and high-voltage test certificates per IEC 60228 and HD 603
- Custom engineering: Specify symmetric or asymmetric ground, braid shield coverage, jacket material and color, phase marking, or a drive-brand-specific connector scheme
