TRVVP — The "P" That Protects Your Signals

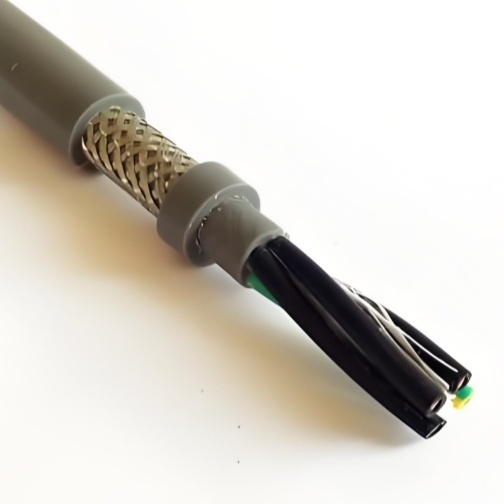

TRVVP is TRVV with one critical addition: the letter P for shielded (from German "P" designation). The braid shield wraps around the entire core assembly, creating a grounded conductive barrier that intercepts electromagnetic interference before it reaches the signal conductors.
In a modern automated machine, EMI sources are everywhere:
- VFD drives switching at 4–16 kHz with harmonics into MHz range
- Contactor coils generating inductive "kick" at every open/close
- Servo motor PWM waveforms with 5 kV/μs dv/dt
- Wireless devices (Wi-Fi, Bluetooth) operating in the 2.4/5 GHz bands
- Adjacent unshielded power cables capacitively coupling 50/60 Hz hum
The TRVVP braid shield eliminates these problems by providing a low-impedance path to ground for induced noise currents.
Shielded AND Flexible — The Engineering Challenge
Adding a braid shield to a flexible cable is not as simple as wrapping copper mesh around the core and extruding the jacket. The braid introduces three potential failure mechanisms:
Challenge 1: Braid Abrasion into Core Insulation
During bending, the braid strands press against the core insulation. Without a protective layer, the strands cut into the PVC — creating micro-grooves that deepen cycle by cycle until the conductor is exposed.
TRVVP solution: A PET fleece inner wrap between the core assembly and the braid. The fleece is a sacrificial wear surface — it absorbs the braid-to-core friction, protecting the core insulation throughout the cable's service life.Challenge 2: Braid Telescoping
Under repeated acceleration and deceleration (as in a moving carrier or gantry), the braid can slide longitudinally along the core assembly. Over time, it bunches up at one end, exposing unprotected cores at the other.
TRVVP solution: The braid is applied under controlled tension and the jacket extrusion pressure locks it in place. The PET fleece provides a high-friction surface that resists braid sliding.Challenge 3: Flex Fatigue of Braid Strands
Each braid strand is approximately 0.15 mm diameter tinned copper. Under repeated bending, these strands work-harden and fracture — just like the larger conductor strands.
TRVVP solution: The braid uses tinned copper (more ductile than bare copper at small diameters) and is applied at an optimized braid angle (typically 30–45°) that balances coverage with flexibility.Shield Grounding for TRVVP Control Cable
- Both-end grounding for digital signals and high-frequency noise: Connect the shield drain wire to ground at both the control cabinet and the field device. This is effective for most industrial EMI
- Single-end grounding for analog (4–20 mA, 0–10 V): Connect at the cabinet end only to avoid ground loop current through the shield. Verify < 0.1 V potential difference between the two ground points before both-end grounding
- Drain wire termination: Bring the drain wire out of the cable gland separately — do NOT fold 100 mm of braid into a pigtail. A short (< 25 mm), direct connection from drain wire to ground terminal is the most reliable method for industrial terminations
- Avoid floating shield: An ungrounded shield acts as a capacitive coupler — it collects noise and injects it into the signal conductors. Always ground both ends or one end — never neither
TRVVP vs TRVV vs Standard Shielded — Decision Matrix
| Application Requirement | Standard Shielded Control | TRVV Control | TRVVP Control |
|---|---|---|---|
| EMI protection needed | ✅ | ❌ No shield | ✅ |
| Repeated flexing (> 1 000 cycles) | ❌ Not flex-rated | ✅ | ✅ |
| Both EMI + flex | ❌ Fails on flex | ❌ No EMI protection | ✅ The right choice |
| Lowest cost | ✅ | Moderate | Higher |
TRVVP is the only cable in the control cable family that combines EMI protection with verified flex life. If your application needs only one of these (EMI OR flex), a simpler cable will suffice. If it needs both, TRVVP is the engineered solution.
Why Choose Yichi Cable TRVVP Control?
- PET fleece as standard: The critical braid-to-core protective layer is included on every TRVVP cable — not an option that can be overlooked during ordering
- Drain wire accessibility: Our drain wire is laid parallel to the core assembly and accessible by stripping the jacket and braid — no need to unravel meters of braid to find a termination point
- Flex-tested with shield: Our 3–5 million cycle rating includes verification that the shield maintains continuity throughout the test — a cable that survives flexing but loses shield continuity at 1 million cycles is a failure
- Class 6 upgrade path: Need more flex life in an EMI environment? Upgrade to Class 6 conductors — same TRVVP shield construction with 5 million cycle rating
