Detailed Description

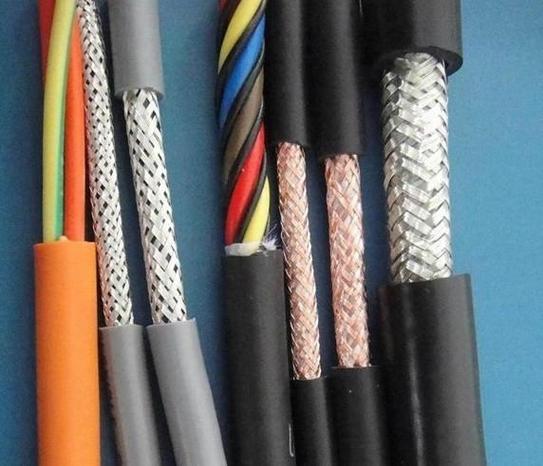

The Over-Engineering Trap — When Wear-Resistant Jacket Is All You Need
It is tempting to specify the most expensive drag chain cable for every application — Class 6 conductor, PUR jacket, Kevlar fillers, the works. But in many medium-duty automation applications, the jacket wears through long before the conductors show any sign of fatigue.
Adding high-flex conductor features to a cable whose jacket fails first is like putting racing tires on a car with a 5-liter fuel tank — you are optimizing the wrong component.
A wear-resistant drag chain cable focuses investment where it matters: the jacket. The conductors are specified to match the application's actual flex life requirement, and the cost savings go directly into a thicker, harder, more abrasion-resistant jacket that extends the cable's real-world service life.
Jacket Wear — The #1 Cause of Drag Chain Cable Replacement
Analysis of returned failed cables from our service database (5 000+ samples, 2018–2025):
| Failure Mode | Percentage | Root Cause | Solution |
|---|---|---|---|
| Jacket wear through | 38% | Abrasion against carrier walls | Wear-resistant jacket |
| Conductor fatigue / broken core | 28% | Bend radius too small, excessive cycles | Class 6 conductor, larger bend radius |
| Shield failure / EMI degradation | 18% | Braid fatigue or abrasion | Shielded variant with inner jacket |
| Connector / termination failure | 10% | Improper clamping, strain relief | Installation training |
| Chemical degradation | 6% | Wrong jacket for environment | Oil/chemical resistant jacket |
The data is clear: jacket wear is the single largest cause of drag chain cable failure — nearly 40% of all returns. A cable with a wear-resistant jacket directly addresses this dominant failure mode.
Three Jacket Tiers — Cost-Optimized Selection
Not every application needs the ≤3 mg Taber premium PUR jacket. Choose the tier that matches your environment and budget:
Tier 1: Enhanced NBR-PVC (≤10 mg Taber)
The economical choice for indoor, moderate-cycle applications where PVC's limitations are acceptable. The enhanced formulation adds nitrile rubber for improved abrasion and oil resistance compared to standard PVC.
- Taber wear: ≤10 mg — 2.5× better than standard PVC
- Cost: ~15% premium over standard PVC
- Best for: Indoor conveyors, moderate-cycle packaging, clean environments
- Don't use for: Outdoor UV exposure, oil-immersed environments, temperatures below -15°C
Tier 2: Standard PUR (≤5 mg Taber)
The industrial standard for wear resistance. 5× better than PVC, with the added benefits of oil, UV, and halogen-free performance.
- Taber wear: ≤5 mg — 5× better than standard PVC
- Cost: ~30% premium over standard PVC
- Best for: High-cycle automation, outdoor installations, oily environments
- The workhorse tier — this covers ~70% of wear-critical applications
Tier 3: Premium High-Hardness PUR (≤3 mg Taber)
For extreme carrier environments where every micron of jacket thickness counts.
- Taber wear: ≤3 mg — 8× better than standard PVC
- Cost: ~45% premium over standard PVC
- Best for: Long-travel carriers, abrasive dust environments, 24/7 continuous operation
- Key feature: Shore 92–95 A hardness with maintained bend flexibility
Internal Abrasion — Wear From the Inside Out
External jacket wear from carrier wall contact gets the attention — but internal abrasion between cores and the inner jacket surface is an equally important failure mechanism that does not announce itself until a short circuit occurs.
During each bend cycle:
- The cores at the inner bend radius press outward against the inner jacket surface
- Friction between the core insulation and the inner jacket surface causes micro-abrasion
- Over millions of cycles, the core insulation wears thin — eventually exposing the conductor
How to Inspect for Jacket Wear
Catching jacket wear before it becomes conductor exposure saves the cost of emergency replacement:
| Inspection Method | What to Look For | Frequency | Tool Needed |
|---|---|---|---|
| Visual — surface | Color change (darker patches on orange jacket); glossy-to-matte transition | Every 2 000 hours | Eyes, flashlight |
| Visual — groove | Longitudinal grooves along cable surface where it contacts carrier dividers | Every 5 000 hours | Inspection mirror for tight spaces |
| Tactile — softness | Jacket feels softer/stickier at bend points vs straight sections | Every 5 000 hours | Clean hands (oil-free) |
| Ultrasonic thickness | Absolute jacket thickness measured at reference points | Every 10 000 hours or annually | Ultrasonic thickness gauge |
| Replacement threshold | Jacket thickness reduced by 30% from installation baseline | — | Thickness gauge + installation records |
Record baseline jacket thickness at installation. Without a baseline, you cannot determine how much material has been lost.
Why Choose Yichi Cable Wear-Resistant?
- Three-tier selection: We help you choose the right jacket tier based on your actual wear environment — not the most expensive option
- Tier 1 NBR-PVC availability: For budget-sensitive applications that simply need better-than-PVC wear resistance, we offer the economical enhanced NBR-PVC tier — most manufacturers only offer PUR, at a higher price
- PET fleece as standard: The internal abrasion protection layer is included on all wear-resistant cables — not an extra-cost option
- Orange inspection jacket: Standard stock in orange (RAL 2003) for all three tiers — makes routine wear inspection straightforward
- Baseline documentation: We provide installation baseline jacket thickness measurements with every cable shipment over 50 m — no guessing whether the jacket has worn
