Detailed Description
Oil Is Not One Thing — Understanding the Chemical Threat
Engineers often say "we need an oil-resistant cable." But "oil" in a factory is not a single chemical — it is a range of chemically distinct fluids, each with different effects on cable jackets:
| Oil Type | Chemical Class | Effect on Standard PVC | Effect on Standard PUR | Where Found |
|---|---|---|---|---|
| Mineral oil (paraffinic) | Hydrocarbon, non-polar | Severe swelling (30–50% volume increase), softening | Moderate swelling (5–10%), slight softening | Gearbox oil, hydraulic oil (HL/HLP), general lubrication |
| Synthetic ester | Ester, polar | Moderate swelling, plasticizer extraction | Good resistance (3–8% swell) | Environmentally friendly hydraulic fluids, bio-oils |
| Water-glycol (HFC) | Aqueous solution, polar | Good resistance, slight water absorption | Good resistance, slight water absorption | Fire-resistant hydraulic fluid |
| Cutting fluid (emulsion) | Oil-in-water emulsion, alkaline pH 8–9.5 | Moderate swelling + alkaline degradation | Excellent resistance | CNC flood coolant, machining centers |
| Dielectric oil (EDM) | Highly refined mineral oil, low viscosity | Severe swelling | Good resistance | EDM machines, transformer oil |
The important conclusion: PVC is unsuitable for any oil-exposed drag chain application. Standard PUR is good for splash exposure. Oil-resistant PUR is required for continuous immersion.
What Happens When Oil Penetrates a Cable Jacket
Oil absorption into a cable jacket is not just a cosmetic problem — it triggers a cascade of mechanical and electrical failures:
Stage 1: Swelling and Softening (Hours to Days)
Oil molecules diffuse into the polymer matrix, pushing polymer chains apart. The jacket swells (increases in volume) and softens (decreases in Shore hardness). A jacket that was 90 A Shore can drop to 70 A within 48 hours of oil immersion.
Stage 2: Mechanical Degradation (Days to Weeks)
The softened jacket:
- Loses abrasion resistance: Taber wear increases 3–5× because the soft surface tears more easily
- Increases friction: The swollen, sticky surface drags against carrier walls — increasing motor load on the carrier drive
- Compresses permanently: Under the repeated compression of carrier bending, the softened jacket takes a permanent set — creating thin spots
Stage 3: Conductor Exposure (Weeks to Months)
Thin jacket spots eventually wear through, exposing the shield or core insulation. If the oil has also penetrated to the core insulation:
- PVC core insulation swells, increasing capacitance between cores
- PP core insulation (used in oil-resistant cables) does not absorb oil, maintaining stable electrical performance
How Oil-Resistant PUR Is Different from Standard PUR
Not all PUR is oil-resistant. The key differentiators:
| Property | Standard PUR (TMPU) | Oil-Resistant PUR |
|---|---|---|
| Base polymer chemistry | Polyether or polyester polyurethane | Polyether polyurethane with higher soft-segment molecular weight |
| Volume swell in IRM 902 (168 h, 100°C) | 5–10% | ≤3% |
| Shore hardness after oil immersion | Decreases 5–10 A | Decreases ≤3 A |
| Tensile strength after oil aging | 70–80% retention | ≥85% retention |
| Hydrolysis resistance | Polyester: poor; Polyether: good | Excellent (polyether-based) |
| Cost premium | Baseline | 10–15% higher than standard PUR |
The molecular explanation: oil resistance in PUR comes from the polymer's soft-segment molecular weight. Longer soft-segment chains create a more ordered, crystalline-like structure that is physically more difficult for oil molecules to penetrate. Standard PUR uses shorter soft-segment chains for easier processing; oil-resistant PUR uses longer chains for chemical resistance — at the cost of slightly more difficult extrusion.

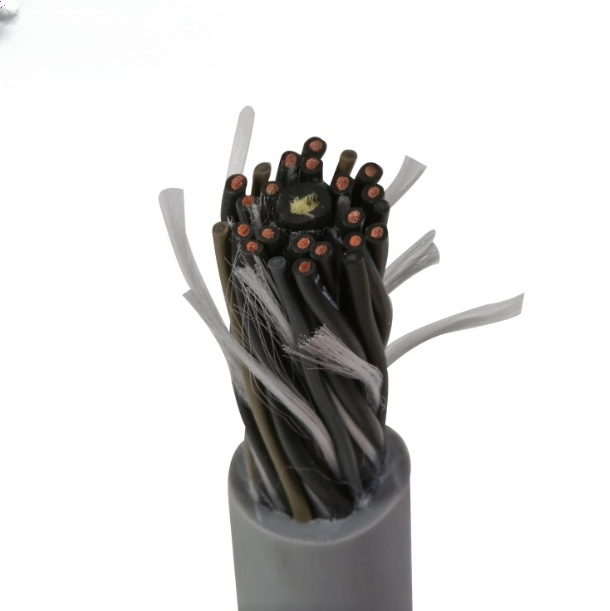

PP Core Insulation — The Oil-Proof Foundation
Why does this cable use PP (polypropylene) for core insulation rather than the PVC used in many drag chain cables? Because in an oil-immersed carrier, the jacket is not the only barrier — oil will eventually permeate any polymer jacket, albeit slowly.
- PP absorbs near-zero oil: PP is a semi-crystalline, non-polar polymer. Mineral oil (also non-polar) can theoretically dissolve in PP, but the crystalline regions block diffusion. Measured oil absorption after 168 h at 100°C: <0.5% — effectively zero
- PVC absorbs significant oil: PVC is amorphous and contains liquid plasticizers (typically 20–40% by weight). Mineral oil extracts these plasticizers, leaving the PVC stiff and brittle. The oil also swells the PVC, increasing its dielectric constant and capacitance
- Dielectric stability: After 168 h of oil immersion at 100°C, PP insulation maintains ≥95% of its original dielectric strength. PVC may lose 30–50%
Installation in Oil-Rich Environments
- Carrier drainage: Ensure the carrier has drainage holes at the lowest point to prevent oil from pooling. A cable continuously submerged in a pool of oil will absorb more oil than one exposed to oil mist or splash
- Oil type verification: If you are using a non-mineral hydraulic fluid (synthetic ester, phosphate ester, polyglycol), contact our engineering team for chemical compatibility verification before specifying this cable. While oil-resistant PUR handles most industrial fluids, some specialty fluids require different jacket formulations
- Cleaning before inspection: Oil on the jacket surface must be wiped clean before inspecting for wear — oil acts as a surface filler that masks visible abrasion
- Replace seals and wipers: If your machine's carrier seals or way wipers are worn, oil ingress into the carrier will be higher than the cable was designed for. Replace worn machine seals — do not rely solely on the cable's oil resistance
Oil Test Standards Explained
- IEC 60811-404 / DIN EN 60811-404: The standard oil resistance test. Cable samples are immersed in IRM 902 (paraffinic mineral oil) at 100°C for 168 hours. After immersion, the jacket's tensile strength and elongation must be ≥50% of the unaged values. Our oil-resistant PUR maintains ≥85%.
- IRM 902 vs IRM 903: IRM 902 is a high-aniline-point paraffinic oil (less aggressive). IRM 903 is a low-aniline-point naphthenic oil (more aggressive, causes more swelling). Both are standard reference oils per ASTM D471.
- UL 1581 Oil Resistance: For UL-listed cables, oil immersion at specific temperatures for specific durations — similar to IEC but with different pass/fail criteria.
Why Choose Yichi Cable Oil-Resistant?
- IEC 60811-404 test report with every shipment: Not a "typical value" — actual batch-specific oil resistance data
- Oil type compatibility verification: Send us your SDS (Safety Data Sheet) for the oil/coolant used in your machine — we verify chemical compatibility against our PUR formulation database
- PP insulation as standard: We do not offer PVC core insulation for oil-resistant cables — because it will fail. PP is the standard specification
- Orange jacket availability: Standard stock — easier inspection in oil-saturated environments
- Carrier drainage consultation: For new machine designs, our engineering team can review your carrier layout and recommend drainage improvements that extend cable life
