Detailed Description
The Right Cable for the Right Application — When Standard Is Enough
Not every drag chain needs a 20-million-cycle, chemical-resistant, halogen-free premium cable. A packaging machine running 16 hours a day, 5 days a week, in a clean indoor factory accumulates approximately 1.5 million cycles per year. At that rate, a cable rated for 3–5 million cycles will last 2–3 years — which may be longer than the machine's scheduled refurbishment interval.

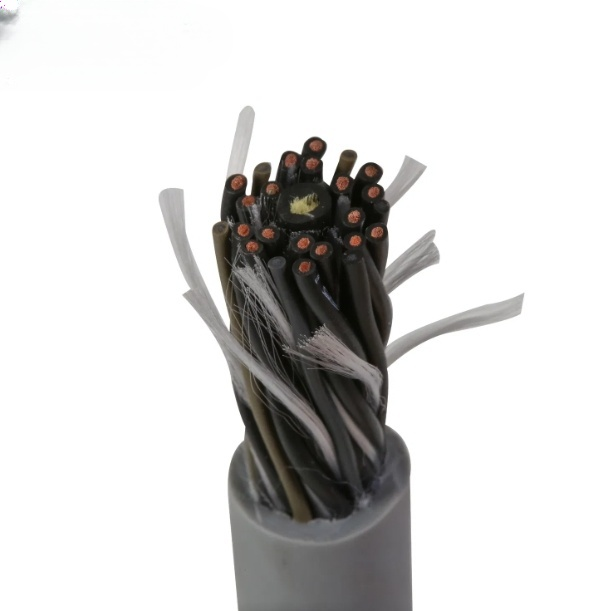

Specifying a premium cable that outlasts the machine by a decade adds cost without adding value. The Standard Drag Chain Cable (TRVV type) is engineered for exactly this application profile: adequate flex life at the right price.
TRVV Naming Convention — What the Letters Mean
TRVV is the Chinese/European standard designation that describes the cable's construction. Breaking it down:
| Letter | Meaning | Material |
|---|---|---|
| T | Drag chain (拖链) | Application type — designed for cable carrier use |
| R | Flexible conductor (软) | IEC 60228 Class 5 — fine stranded for repeated bending |
| V | PVC insulation | First V — core insulation material |
| V | PVC jacket | Second V — outer jacket material |
Derivative types add letters: P (shielded — TRVVP), S (twisted pair — TRVVSP). The standard TRVV is the foundation upon which all premium drag chain cable variants are built.
What "Standard" Means — and What It Does Not
To be clear about what this cable is and is not:
✅ Standard Drag Chain Cable IS:
- Designed and tested for repeated bending in cable carriers
- Made with flexible Class 5 stranded copper (not solid core)
- PVC insulated and jacketed — the industry-standard material combination
- Suitable for indoor industrial environments with moderate cycle rates
- Flame retardant and self-extinguishing
- The most economical drag chain cable option
❌ Standard Drag Chain Cable IS NOT:
- Immersion oil-resistant (use PUR for coolant/oil environments)
- Suitable for outdoor UV exposure (use PUR for permanent outdoor installation)
- Rated for torsion/twisting (use High Flexibility Cable for robot arm joints)
- Halogen-free (PVC contains chlorine; use PUR for cleanroom/medical)
- Cold-flex rated below -5°C (use PUR or TPE for cold storage/freezer)
- Shielded (use TRVVP or Flexible Shielded for EMI environments)
When Standard PVC Is the Right Choice
| If Your Application... | Then Standard TRVV Is... |
|---|---|
| Indoor, clean to moderately dusty | ✅ Appropriate |
| 1–3 million cycles per year | ✅ Appropriate |
| Budget-sensitive, competitive pricing | ✅ The right choice |
| Occasional oil splash (wipe-down cleanable) | ✅ Acceptable |
| Temperature 0°C to 40°C ambient | ✅ Appropriate |
| Continuous coolant flood | ❌ Specify PUR |
| Outdoor, direct sun/rain | ❌ Specify PUR |
| Robot arm joint (torsion) | ❌ Specify High Flexibility Cable |
| VFD/EMI environment | ❌ Specify shielded variant |
Standard PVC vs Premium PUR — Cost-Benefit Analysis
For a typical 8-core, 1.0 mm² drag chain cable at 50 m length:
| Cost Factor | Standard TRVV (PVC) | Premium PUR |
|---|---|---|
| Cable material cost | Baseline | +30–40% |
| Expected service life (indoor, moderate cycles) | 2–3 years | 5–8 years |
| Expected service life (oil-immersed) | 3–6 months | 3–5 years |
| Replacement labor cost | Baseline | Less frequent, but per-instance same |
| Downtime cost per failure | Baseline | Less frequent |
| Best value when | Oil-free indoor, budget-primary | Oil-exposed or outdoor, reliability-primary |
The economics favor Standard TRVV when the application conditions are within its design envelope. Upgrading to PUR "just in case" costs 30–40% more without providing proportional value in clean, indoor applications.
Installation — Getting Standard TRVV Right
Standard PVC-jacketed cable is less forgiving than PUR. Proper installation extends its life significantly:
- Carrier fill: ≤ 60% of cross-section. PVC cables have higher surface friction than PUR — a tighter fill means more wall contact and faster wear
- Bend radius: Strictly 7.5× OD minimum. PVC stiffens slightly at the lower end of its temperature range — if the factory is cold (< 10°C), increase to 10× OD
- No sharp edges: Inspect the carrier interior for burrs, weld spatter, or sharp plastic molding flash. PVC is more susceptible to cutting than PUR — deburr as needed
- Strain relief: Clamp at both ends with rubber-lined clamps. PVC creeps under sustained pressure — check clamp tightness after the first 100 hours of operation
- Separation from heat sources: PVC softens above 70°C. Keep cables at least 100 mm from hot machine surfaces, hydraulic lines, and uninsulated steam pipes
- No outdoor use: PVC degrades under UV. If the machine is near a window, ensure the carrier has a cover
Why Choose Yichi Cable Standard Drag Chain?
- IVolume-manufactured quality: Standard TRVV is our highest-volume product line — the manufacturing process is statistically controlled and consistent batch to batch
- Full product range: 2–36 cores, 0.14–35 mm² from stock — no minimum order for standard configurations
- Same-day shipment: Standard configurations ship same day for orders placed before 14:00 local time
- Upgrade path clarity: If your application outgrows standard PVC, we do not simply recommend "a better cable" — we identify the specific environmental or mechanical factor that is driving the failure and recommend the specific upgrade (oil → PUR, EMI → TRVVP, high-flex → PUR High-Flex)
- Honest about limitations: We tell you what this cable cannot do — no false promises, no hidden failure modes discovered in your machine
