Detailed Description
The Tower Crane Environment — Why Standard Cables Fail
Tower cranes operate in the most hostile environment any crane cable will ever face. Understanding this environment explains why the cable specification must differ from an indoor overhead crane cable.
1. Weather — All of It, All Year
A tower crane on a construction site has zero weather protection. The cable is exposed to:
- Direct UV radiation: Summer sun on the tower mast, 8–14 hours per day. A PVC jacket without UV stabilizers will embrittle and crack within 12–18 months. PVC with UV stabilizers extends this to 3–5 years. PUR with inherent UV resistance — the standard for this cable — maintains mechanical properties for the full service life of the crane installation.
- Rain and humidity: Water ingress through jacket cracks leads to conductor corrosion, increased resistance, and eventual open-circuit failure. PUR's hydrolytic stability prevents water-induced degradation.
- Sub-zero temperatures: Winter construction in northern Europe, Canada, Russia, and northern China means the cable flexes at –20°C to –40°C. PVC becomes glassy and cracks below –15°C. PUR remains flexible down to –40°C — the cable bends rather than breaks when the drum pays out at 6 AM on a January morning.
- Ozone: Generated by the tower crane's own electric motors (brush-type slip ring motors in older cranes) and atmospheric ozone at elevated heights. Ozone attacks polymer chains in the jacket, causing characteristic cracking perpendicular to the direction of stress. PUR is inherently ozone-resistant.
2. Mechanical Abuse — Not Gentle Handling
Construction site cable handling is fundamentally different from factory cable handling:
- The cable is dragged across concrete, rebar, scaffold components, and steel tower sections during installation and height increases
- Tower crane erection and dismantling crews work against the clock — cables are pulled, coiled, and manhandled with less care than in a factory maintenance procedure
- Concrete splatter, form-release oil, diesel from the site generator, and hydraulic fluid from the crane's own systems all contact the cable jacket
3. Height — Long Vertical Cable Runs
A tower crane serving a 20-story building has a hook height of approximately 65 meters. The tower mast itself is 50–60 meters, and the cable from the base power connection to the machinery platform at the top runs the full mast height. The total vertical cable run — from the site power distribution panel at ground level, up the mast, through the slewing ring, to the machinery platform — can exceed 80 meters.
This means:
- The cable supports the weight of 80+ meters of itself — approximately 40–80 kg depending on cross-section
- A steel wire tensile core is essential for masts exceeding 40 meters to prevent the copper conductors from elongating under their own suspended weight
- The drum on the machinery platform stores this 80+ meters of cable — the bottom layers are under compressive force from all layers above; EPR insulation is essential for compression resistance
Why PUR Is Not Optional
For tower cranes, PUR is not a premium upgrade — it is the minimum viable jacket material. A comparison:
| Requirement | PVC | CR | PUR |
|---|---|---|---|
| UV stability | Poor (embrittles) | Moderate | Excellent (>720 h test) |
| Cold flex (–30°C) | Fails | Marginal | Passes |
| Cold flex (–40°C) | Fails | Fails | Passes |
| Abrasion resistance | Low | Good | Excellent |
| Seawater resistance | Poor | Moderate | Excellent |
| Ozone resistance | Poor | Good | Excellent |
| Oil / diesel resistance | Poor | Good | Excellent |
| Halogen content | Yes | Yes (chlorine) | No (halogen-free) |
| Outdoor service life | 1–3 years | 3–5 years | 8–15 years |
For an indoor EOT crane in a factory, CR is a reasonable choice. For a tower crane standing in the open for 2–5 years on a construction site, through summers and winters, UV and rain and diesel and concrete — the data is unambiguous: specify PUR.
Tower Crane Cable Routing — Understanding the Electrical Path
A tower crane's electrical system routes power from the site supply to multiple consumers through a defined path, summarized in the table below:
| Stage | Location / Node | Cable Type | Key Consumers / Notes |
|---|---|---|---|
| 1 — Site Supply | Site Power Distribution Panel (400 V, 3-phase) | Fixed installation | Main breaker and metering at ground level; connects to tower mast cable |
| 2 — Mast Vertical Run | Tower Mast Cable (vertical, 50–80+ m) | Motorized drum reeling (this product) | Fixed in mast sections for static portion; motorized drum at mast base or machinery platform for variable height during climbing |
| 3 — Slewing Transfer | Slip Ring Assembly (at slewing ring) | Internal slip ring wiring | Transfers power from non-rotating mast to rotating upper structure; cable terminates at slip ring input |
| 4 — Power Distribution | Machinery Platform / Operator Cab Level | Fixed wiring from distribution panel | Main hoist motor (30–110 kW), auxiliary hoist (10–30 kW), trolley traverse (3–10 kW), 2× slewing motors (5–15 kW each), auxiliary systems (lighting, heating, PLC, sensors) |
| 5 — Jib Travel | Jib / Trolley Cable (along the jib) | Festoon or motorized drum | Connects machinery platform to trolley-mounted hoist motor; continuous movement as trolley traverses jib length |
The tower crane cable must serve the mast run (vertical, potentially 50–80+ meters) — this is the highest-stress application and the primary use case for this product.

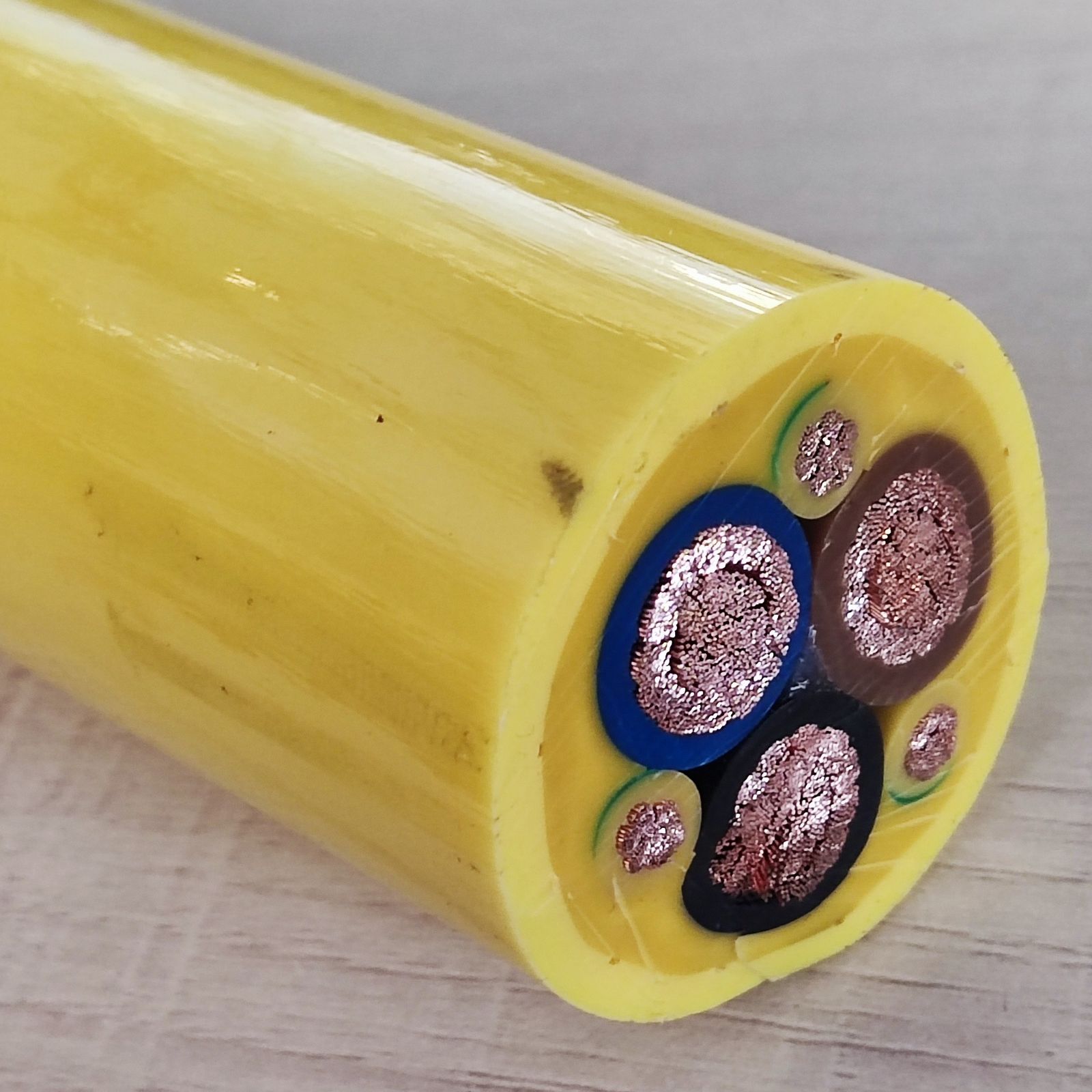

Yichi Tower Crane Cable — Manufacturing Quality
- PUR extrusion expertise: PUR is more difficult to extrude than PVC or CR — it is sensitive to moisture contamination, requires precise temperature profiling across the extruder zones, and needs controlled cooling to develop full mechanical properties. We run dedicated PUR extrusion lines with online diameter monitoring to ±0.1 mm
- Steel wire pre-straightened: The central steel wire is mechanically pre-straightened before entering the stranding process — a curved or coiled wire will cause the finished cable to have a permanent set (memory), making it difficult to wind smoothly onto a drum
- Cold-flex verified: Each new cable design is tested at the rated minimum flexing temperature — a sample is conditioned at –40°C for 24 hours, then subjected to a mandrel bend test. The cable must show no jacket cracking at 10× OD bend radius
- Long-length capability: Tower crane cables are often ordered in single continuous lengths of 80–150 meters to avoid joints in the mast run. Our production line supports single-length extrusion up to 500 meters for the standard range of cross-sections
