Detailed Description

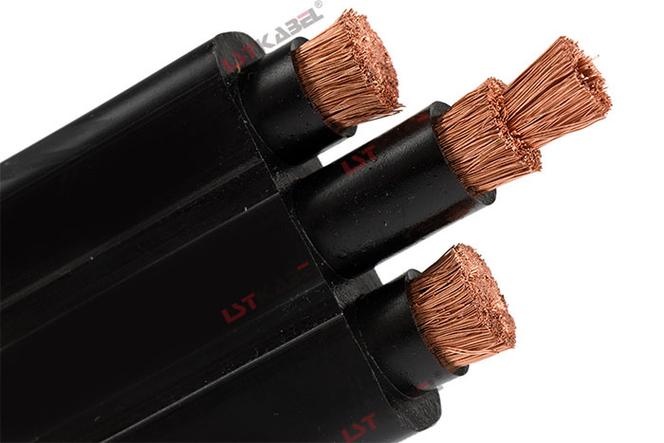

The Steel Mill Ladle Car — Heat, Load, and Scale
A ladle transfer car moves 100–350 tonnes of molten steel at 1 550–1 650 °C across the steel mill floor. The cable trailing behind or wound on a motorized reel is exposed to:
- Radiant heat: The molten steel radiates heat at 5–50 kW/m² — raising the cable's jacket surface temperature to 120–180 °C even at 5–10 meters distance
- Thermal cycling: Each ladle transfer cycle heats the cable, then it cools during the return trip — thermal expansion and contraction stress the jacket-core interface
- Metallic scale dust: Iron oxide particles (Fe₂O₃, Fe₃O₄) from continuous casting and rolling operations coat everything — conductive when deposited on cable surfaces, abrasive when trapped between cable turns on the drum
- Impact: Slag splash, steel drips, and accidental contact with hot ladle structures
Thermal Barrier — The Engineering Innovation
The cable's layered construction includes a ceramic fiber tape thermal barrier between the core assembly and the outer jacket:
- Outer jacket (CR or CSPE): First line of defense — absorbs radiant heat and resists scale dust
- Ceramic fiber tape: Primary thermal insulator — reflects >95 % of incident radiant heat, preventing heat conduction to the core
- Inner sheath (silicone or CR): Secondary thermal buffer — absorbs residual heat that penetrates the ceramic barrier
- Core assembly: EPR or silicone insulated conductors — maintained at <120 °C by the thermal barrier, well within their rated continuous operating temperature
Material Selection by Temperature Zone
| Temperature Zone | Conductor Insulation | Jacket | Thermal Barrier | Application |
|---|---|---|---|---|
| <120 °C (standard ladle car) | EPR | CR | Not required | Standard ladle transfer, lower duty |
| 120–150 °C (heavy-duty) | EPR or Silicone | CSPE | Ceramic fiber tape | BOF-to-caster ladle car |
| 150–180 °C (extreme) | Silicone | CSPE | Ceramic fiber tape | EAF-to-caster, torpedo ladle |
| >180 °C intermittent | FEP/PTFE | CSPE + glass braid | Ceramic fiber tape | Torpedo ladle close-proximity |
Why Choose Yichi Ladle Transfer Car Cable?
- Ceramic fiber thermal barrier: Standard on high-temperature configurations — reflects >95 % of radiant heat
- CSPE (Hypalon) jacket: Superior heat resistance vs CR — maintains mechanical properties to +150 °C
- Smooth surface: Prevents metallic scale dust embedding — reduces conductive tracking risk on the cable surface
- Nickel-plated copper option: For applications where conductor temperatures exceed the oxidation limit of bare copper (+150 °C)
- Thermally insulated tensile core: The steel wire core is wrapped with thermal insulation — prevents heat conduction down the core from the outer jacket
