Detailed Description

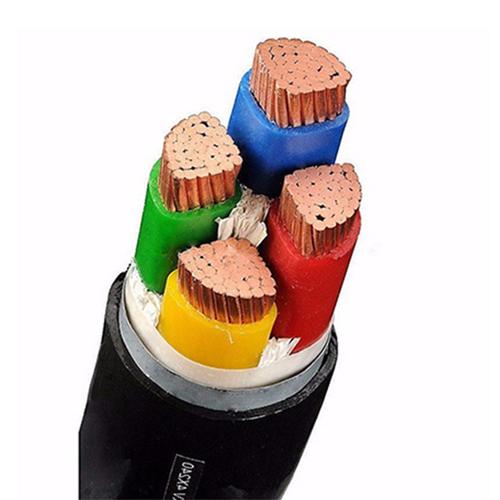

What Is a Low Voltage Power Cable?
In international cable engineering, the term "low voltage power cable" spans two distinct voltage bands: cables rated 300/500 V to 450/750 V (defined by IEC 60227 / HD 21), and cables rated 0.6/1 kV (defined by IEC 60502-1). This page covers the 300–750 V class — the cables used inside buildings for lighting, socket outlets, control panels, and appliance connections.
These are the cables that an electrical contractor pulls through conduit every day: the 2.5 mm² three-core for a socket circuit, the 1.5 mm² for a lighting circuit, the 4 mm² five-core flexible cable connecting a machine tool to the wall isolator. They are the most common cables in the built environment, and their specification is governed by IEC 60227 (international) and the harmonized European HD 21 / VDE 0281 standards.
Cable Type Designations — Understanding Harmonized Codes
European low voltage cables use a harmonized designation system (CENELEC HD 361) that encodes the cable's construction and ratings:
| Designation | Voltage | Construction | Typical Use |
|---|---|---|---|
| H05VV-F | 300/500 V | Flexible, PVC insulation, PVC sheath | Light-duty appliance leads, table lamps, office equipment |
| H05RR-F | 300/500 V | Flexible, rubber insulation, rubber sheath | Light-duty portable tools, extension leads for damp locations |
| H05RN-F | 300/500 V | Flexible, rubber insulation, CR sheath | Light-duty outdoor and construction site leads; oil and weather resistant |
| H07VV-F | 450/750 V | Flexible, PVC insulation, PVC sheath | Medium-duty appliance connections, machine tool supply leads |
| H07RN-F | 450/750 V | Flexible, rubber insulation, CR sheath | Heavy-duty portable equipment, construction site distribution, submersible pump connections |
| H07ZZ-F | 450/750 V | Flexible, LSZH insulation, LSZH sheath | Public buildings, tunnels, railway stations — where smoke and halogen emissions are regulated |
| NYM | 300/500 V | Fixed, PVC insulation, PVC sheath | Fixed installation in plaster, concrete, and masonry; indoor only |
| NYY | 0.6/1 kV | Fixed, PVC insulation, PE sheath | Fixed installation in ground, outdoor, and cable ducts; direct burial capable |
The harmonized code letters encode the cable properties:
- H: Harmonized type (CENELEC)
- 05/07: Voltage rating (05 = 300/500 V; 07 = 450/750 V)
- V: PVC (insulation or sheath)
- R: Natural or synthetic rubber
- N: CR (neoprene / polychloroprene)
- Z: LSZH (low smoke zero halogen) cross-linked compound
- F: Flexible conductor (Class 5)
- U: Solid conductor (Class 1)
- R: Stranded conductor (Class 2)
Flexible vs Fixed Installation — Which Conductor Class?
| Application | Conductor Class | Stranding | Cable Type Example |
|---|---|---|---|
| Fixed wiring (lighting, socket circuits) | Class 1 (solid) or Class 2 (stranded) | 1 wire or 7 wires | NYM, NYY |
| Appliance connection leads | Class 5 (flexible) | Multiple fine wires | H05VV-F, H07RN-F |
| Control panel internal wiring | Class 5 or Class 2 | Fine or stranded | H05V-K (single-core), H07V-K |
| Machine tool connections | Class 5 | Fine stranded | H07RN-F, H07VV-F |
| Construction site distribution | Class 5 | Fine stranded | H07RN-F (rubber jacket, oil + weather resistant) |
The choice between Class 2 (stranded) and Class 5 (flexible) is defined by whether the cable moves after installation. Fixed building wiring uses Class 2 (or Class 1 for small cross-sections) because the cable is pulled once and remains stationary. An appliance lead or machine connection cable uses Class 5 because the cable flexes every time the appliance is moved or the machine door is opened.
Rubber vs PVC Sheath — When Mechanical Durability Matters
| Environmental Condition | PVC Sheath (H07VV-F) | Rubber/CR Sheath (H07RN-F) |
|---|---|---|
| Indoor dry | Suitable | Suitable |
| Indoor damp | Marginal — PVC is not water-blocked | Suitable — rubber is water-resistant |
| Outdoor — UV exposure | Not suitable — PVC degrades under UV without carbon black reinforcement | Suitable — CR jacket is UV-stabilized |
| Outdoor — rain and wet | Not suitable | Suitable — AD8 submersion rated |
| Mechanical impact / abrasion | Low resistance | Good — rubber absorbs impact and resists abrasion |
| Oil and grease exposure | Poor — PVC softens and swells | Good — IEC 60811-404 compliant |
| Low temperature | Brittle below -5°C | Flexible to -25°C |
| Cost | 100% (reference) | 130–160% |
For any application with outdoor exposure, mechanical risk, or oil/chemical contact, the rubber-sheathed H07RN-F is the correct specification. The price premium is the cost of not having the cable fail in service.
CPR (Construction Products Regulation) — Fire Performance Classification
Under the European Construction Products Regulation (EN 50575 / CPR), all cables permanently installed in buildings must carry a Euroclass fire performance classification:
| Euroclass | Smoke | Droplets | Acidity | Typical Cable |
|---|---|---|---|---|
| B2ca | s1a, s1b | d1, d2 | a1, a2 | LSZH cables for public buildings |
| Cca | s1a, s1b | d1, d2 | a1, a2 | Standard LSZH cables for escape routes |
| Dca | s2 | d2 | a1, a2 | Standard PVC cables with enhanced flame retardancy |
| Eca | — | — | — | Basic PVC cables; minimum CPR requirement |
| Fca | — | — | — | No declared performance; not for building use |
Cables without a CPR Euroclass are not legally marketable in the EU for permanent building installation. Yichi low voltage power cables carry Euroclass Eca as standard, with Dca, Cca, and B2ca available on request with LSZH compound formulations.
Why Choose Yichi Low Voltage Power Cables
- Full harmonized type range from one manufacturer: H05VV-F through H07RN-F through NYM and NYY — a single supplier for all low voltage wiring needs simplifies procurement, documentation, and quality assurance
- IEC 60227 / HD 21 compliance verified by type testing: Every cable type is type-tested to the full IEC 60227 suite — conductor resistance, insulation resistance, high-voltage withstand, cold bend, hot pressure, and flame propagation
- CPR Euroclass available on request: Provide the required Euroclass for your building project and we manufacture to that fire performance classification with the appropriate compound formulation and third-party certification
- Flexible and fixed installation types: Class 1, 2, and 5 conductors available — we produce the complete conductor spectrum, not just one conductor class rebranded for multiple applications
- Standard and custom core configurations: 2–5 cores in standard color coding per HD 308 S2; custom core counts, cross-sections, and color codes manufactured to order
