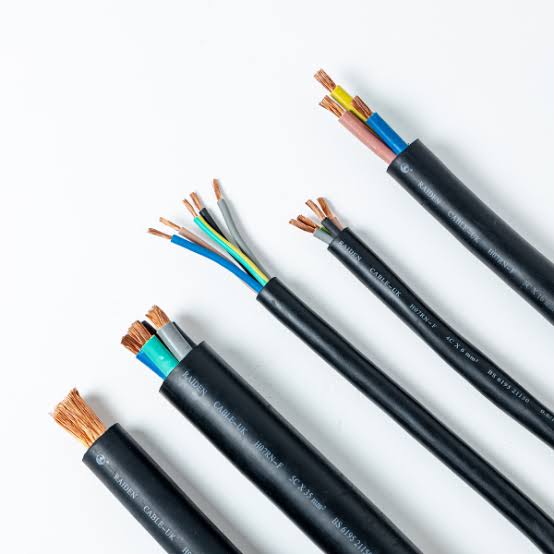

Outdoor Field Specialty Cable — UV/Weather/Ozone Resistant PE or PUR Jacketed Flexible Multi-Core Power, Control, and Signal Cable for Temporary and Semi-Permanent Outdoor Field Installations Including Military Field Camps, Disaster Relief, Outdoor Events, Agricultural Machinery, and Remote Monitoring Equipment in All-Weather Environments
Industrial, Mining & Control Cables /Outdoor Field Cable

Outdoor Field Specialty Cable — UV/Weather/Ozone Resistant PE or PUR Jacketed Flexible Multi-Core Power, Control, and Signal Cable for Temporary and Semi-Permanent Outdoor Field Installations Including Military Field Camps, Disaster Relief, Outdoor Events, Agricultural Machinery, and Remote Monitoring Equipment in All-Weather Environments

Outdoor field specialty cable: UV/weather/ozone resistant PE or PUR jacket, flexible multi-core. For military field camps, disaster relief, outdoor events, agriculture, remote monitoring. All-weather, -40°C cold-flex. Water, mud, abrasion resistant. CE, RoHS.

Key Features

PE (polyethylene) or PUR (polyurethane) outer jacket — both materials are UV-stabilised (carbon black reinforced), weather-resistant, and ozone-resistant for permanent or extended outdoor exposure; PE for buried and fixed outdoor installations where moisture resistance is the priority; PUR for flexible, handled, and mobile field cables where abrasion resistance, cold-flex, and flexibility are required
All-weather operation — the cable functions in outdoor conditions from desert sun (60°C+ surface temperature on black cable in direct sun) to Arctic winter (-40°C with PUR jacket, -30°C with PE); the jacket is formulated with UV stabilisers and antioxidants for years of outdoor exposure without cracking, chalking, or embrittlement
Water, mud, and immersion resistant — the continuous extruded jacket prevents water ingress; the cable can be laid in wet ground, puddled in water, and exposed to rain and snow without the insulation resistance degrading; for temporary submersion (flooded trenches, river crossings), water-blocked construction with swellable tapes is available
Flexible Class 5 stranded copper conductors — the cable must be coiled, uncoiled, deployed, and retrieved repeatedly in field conditions; the flexible stranding prevents conductor fatigue from the repeated handling and allows the cable to be coiled on portable reels and drums for transport between deployments
Multi-core power, control, and signal configurations — from 3-core 2.5 mm² power cable for a field lighting generator to 24-core control cable for a mobile command centre's equipment connections; the cable type and configuration are selected for the specific field application
Abrasion and cut resistant — the PE or PUR jacket is formulated with a thicker wall than an equivalent indoor cable (typically 1.5–2× the standard wall thickness) to withstand the mechanical abuse of field deployment: dragged across rough ground, run over by vehicles, trodden on by personnel, and abraded against rocks and hard surfaces
Crush resistant — the thick jacket wall and the flexible core assembly absorb impact and compression loads from vehicle traffic, equipment placement, and the general rough handling of field operations without the internal conductors being damaged or shorting together
High-visibility jacket colours available — orange, yellow, or red for the cable to be highly visible in field conditions, reducing the trip hazard for personnel and the risk of accidental vehicle damage; black for installations where the cable is buried or where visual discretion is required

Applications

Military field camp power distribution — outdoor field cable for the temporary power grid in a military field camp, connecting the generator(s) to the distribution panels and from the panels to the tented accommodation, command post, and field hospital; the cable is deployed on the ground, in cable trenches, or hung from catenary wiresDisaster relief and humanitarian operations — rapidly deployable cable for emergency power, lighting, and communications in disaster-affected areas; the cable is part of the emergency response equipment set and must function reliably when deployed in any weather on unprepared groundOutdoor event and festival power — temporary cable for stage power, lighting towers, food vendor stalls, and temporary structures at music festivals, sporting events, and outdoor exhibitions; the cable is laid across fields and pathways, exposed to foot traffic, vehicle traffic, and weather for the event durationAgricultural and farming machinery — cable for the power and control connections to mobile irrigation pumps, grain augers, portable conveyors, and electric fencing energisers in agricultural settings where the cable is outdoors year-round, exposed to UV, rain, mud, and fertiliser chemicalsRemote environmental monitoring — cable for the power and signal connections to remote weather stations, river level gauges, seismic monitors, and wildlife cameras where the cable is installed in remote locations, buried or surface-laid, and must survive unattended for yearsConstruction and infrastructure site power — temporary site power cable for construction projects, road works, and bridge construction where the cable is deployed for the project duration (months to years) and must survive the outdoor construction site environment

Technical Specifications

Rated Voltage — Power 0.6/1 kV (U₀/U); 450/750 V for smaller cross-section flexible types
Rated Voltage — Control/Signal 300/500 V
Conductor Material Bare copper or tinned copper (tinned for humid, marine, and outdoor environments); IEC 60228 Class 5 flexible stranded
Conductor Cross-Sections — Power 1.5–120 mm²; 2–5 cores
Conductor Cross-Sections — Control 0.5–2.5 mm²; 2–24 cores
Core Insulation — XLPE (Standard) XLPE; 90°C; water treeing resistance for buried and wet outdoor installations
Core Insulation — EPR (Flexible Types) EPR; 90°C; for flexible field cables where the conductor flexibility and compression recovery of rubber are required
Outer Jacket — PE ST7 MDPE/HDPE; black; UV-stabilised (≥2.5% carbon black); superior moisture barrier for buried and permanent outdoor installation; −30°C to +80°C
Outer Jacket — PUR PUR TMPU; black or high-visibility colours; excellent abrasion and cold-flex; −50°C to +90°C; for handled and mobile field cables
Jacket Wall Thickness — Field Cable Typically 1.5–2× the IEC 60502-1 standard thickness for the equivalent indoor cable; the increased thickness provides the mechanical protection for field deployment conditions
Water Blocking (Optional) Water-swellable tapes under the jacket and swellable yarns in the core; prevents water migration along the cable if the jacket is damaged in the field
Maximum DC Conductor Resistance at 20°C Per IEC 60228
Insulation Resistance at 20°C ≥1 000 MΩ·km (XLPE); ≥100 MΩ·km (EPR)
Test Voltage (AC) — Routine Per IEC 60502-1 / IEC 60245
Temperature — PE Jacket −30°C to +80°C (flexing — PE stiffens but does not crack); −40°C to +80°C (fixed)
Temperature — PUR Jacket −50°C to +90°C (fixed); −40°C to +80°C (flexing)
Minimum Bend Radius 8× cable OD (flexing); 6× cable OD (fixed routing)
UV Resistance — PE/PUR ISO 4892-2 (xenon arc weathering, >2 000 h exposure); jacket retains ≥70% tensile strength and elongation after UV exposure
Ozone Resistance — PE/PUR IEC 60811-403; the PE and PUR compounds are inherently ozone-resistant
Flame Retardant — PUR (Optional) IEC 60332-1-2 (flame-retardant PUR grade on request); PE is not inherently flame-retardant
Certifications CE; RoHS; ISO 9001 manufactured; military specification on request

Detailed Description

What Is Outdoor Field Specialty Cable?

Outdoor field specialty cable is a flexible multi-core power, control, or signal cable with an enhanced-thickness PE or PUR jacket specifically engineered for temporary and semi-permanent outdoor deployment in all weather conditions — the cable that is deployed from a drum across a field, laid on the ground, run over by vehicles, exposed to sun, rain, snow, and mud, coiled back onto the drum, and deployed again at the next location. It is the cable for military field operations, disaster relief, outdoor events, and remote monitoring where the cable is a portable asset, not a fixed installation.

The defining feature is the jacket — it is 1.5–2× thicker than an equivalent indoor cable, formulated with carbon black for UV stabilisation, and selected (PE or PUR) for the specific environmental conditions of the deployment. The jacket is the cable's sole defence against the outdoor environment — there is no conduit, no cable tray, no building to protect it. The jacket must survive everything the weather and the field operations throw at it, for the deployment duration, and remain intact for the next deployment.

Why Choose Yichi Outdoor Field Specialty Cables

  • PE or PUR jacket — select for the deployment environment: PE for fixed and buried outdoor installations (superior moisture barrier, 30+ year underground life). PUR for handled, mobile, and frequently deployed field cables (superior flexibility, cold-flex to -40°C, abrasion resistance, and the high-visibility colour options for field safety). Both jacket materials are UV-stabilised and weather-resistant
  • Thick jacket wall — 1.5–2× the standard indoor cable thickness: The jacket is the cable's only mechanical protection in the field. The thicker wall provides the margin against abrasion, cut-through, vehicle crush, and the general rough handling of field operations. A standard indoor cable jacket thickness would be punctured or abraded through within days of field deployment
  • Flexible Class 5 conductor — survives repeated coiling and uncoiling: Field cable is deployed and retrieved repeatedly. The flexible stranding prevents conductor fatigue from the repeated handling — a solid or Class 2 stranded conductor would work-harden, fracture, and fail after a few deployment cycles
  • High-visibility jacket colours — safety for personnel and equipment: Orange, yellow, or red PUR jacket for field cables laid on the ground in operational areas — the cable is immediately visible, reducing the trip hazard and the risk of accidental vehicle damage. Black for buried cables and installations where visual discretion is required
