Detailed Description
What Is a Seawater Resistant Exploration Cable?

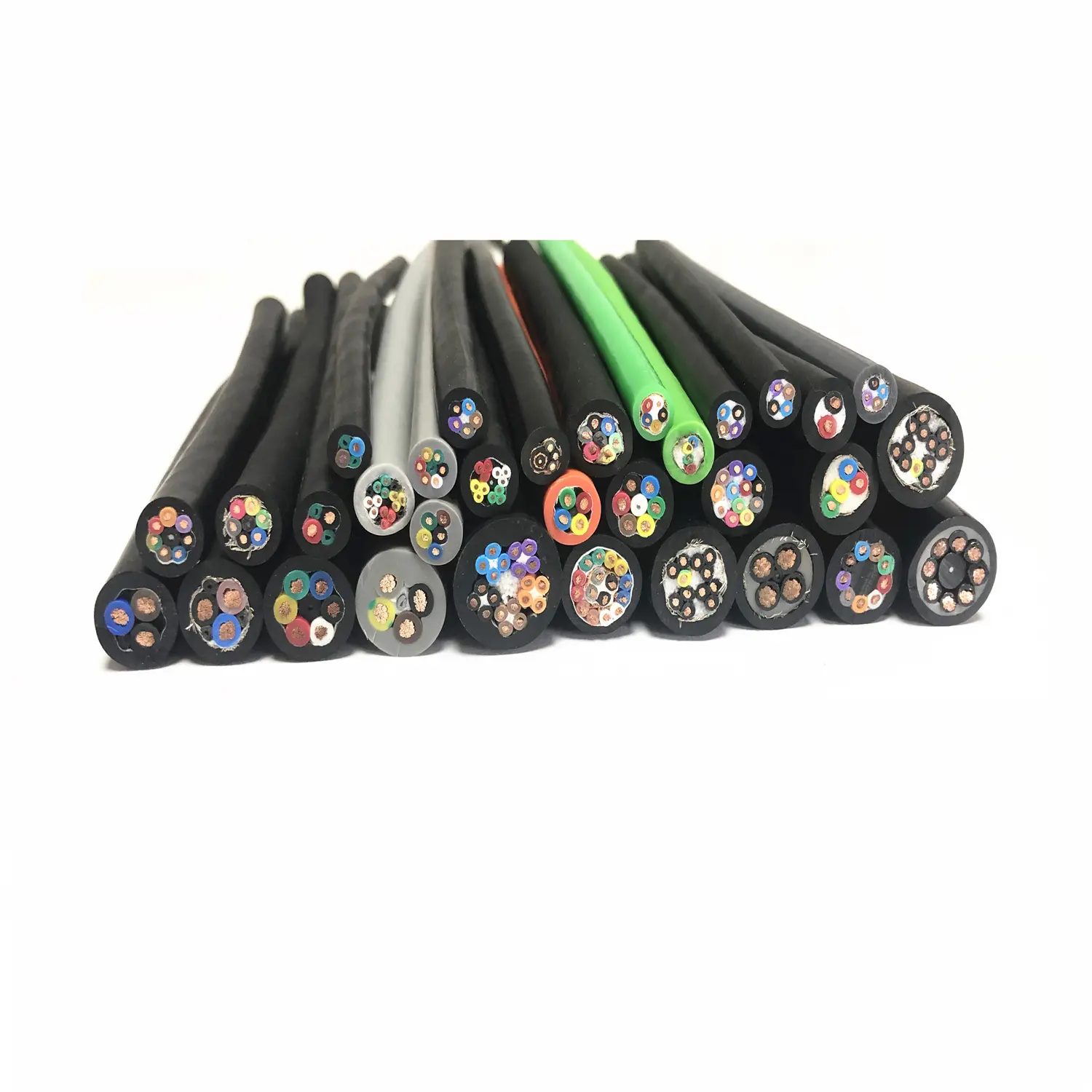

A seawater resistant exploration cable is a lightweight, flexible multi-conductor cable designed for the specific demands of marine survey and oceanographic research — where the cable is repeatedly deployed and retrieved from a research vessel, towed through the water behind the vessel at speeds of 2–10 knots, and expected to deliver clean sensor data from instruments tens or hundreds of metres below the surface.
This is a different duty cycle from a permanently installed marine cable (buoy, dock, platform), which is installed once and left in place for years. An exploration cable is handled on deck between deployments, coiled on a winch drum, paid out over a stern roller or A-frame, and subjected to repeated bending and tension cycling. The cable must be:
- Lightweight for manual handling — on a small research vessel, the cable may be deployed and recovered by hand; weight per metre directly affects crew fatigue and operational tempo
- Flexible for winch drum coiling — the cable must bend smoothly onto and off a winch drum without kinking or developing a permanent set that causes tangles on the next deployment
- Seawater and UV resistant — the cable spends hours in the water and hours on deck in the sun between deployments; it must survive both environments without degradation
- Electrically quiet for sensor data — the cable carries low-level signals from hydrophones (microvolt-level), magnetometers, and CTD sensors; shield integrity and low microphonic noise (cable-generated electrical noise from flexing) are essential
Exploration Cable vs Permanent Marine Cable — Different Duty, Different Design
| Parameter | Seawater Resistant Exploration Cable | Permanent Marine Cable (PUR Seawater) |
|---|---|---|
| Primary duty | Repeated deployment/retrieval; towing | Continuous fixed installation |
| Jacket thickness | 0.8–1.5 mm (lighter, more flexible) | 1.5–2.5 mm (heavier duty) |
| Conductor stranding | Class 5 or Class 6 (high flex) | Class 5 (general marine) |
| Strength member | Optional Kevlar (towing/suspended) | Usually not required (fixed installation) |
| Buoyancy | Neutral or positive (specified per application) | Not critical (fixed installation) |
| Weight | Minimized to reduce winch load and deck handling effort | Not a primary design driver |
| Cable length | Typically 50–500 m per deployment | Typically 10–200 m per installation |
| Service life | 5–10 years (handling wear limits life) | 10–20 years (fixed installation) |
Towed Sensor Cable Dynamics — What the Cable Experiences
When a cable is towed behind a survey vessel at 4–8 knots, the hydrodynamic forces on the cable are significant:
- Drag tension: A 10 mm OD cable towed at 6 knots (3 m/s) experiences approximately 10–20 N of drag per metre of cable in the water. A 200 m tow cable generates 2–4 kN of total drag — the cable and its strength member must withstand this continuously
- Vibration and strumming: Water flowing past the cable at 3 m/s generates vortex-induced vibration (VIV) at frequencies that depend on the cable OD and flow speed. For a 10 mm cable at 3 m/s, the vortex shedding frequency is approximately 60 Hz — this mechanical vibration can generate electrical noise in the cable (triboelectric and microphonic effects) that appears as interference on the sensor signals
- Fairlead bending: The cable exits the vessel through a stern roller or fairlead — a constant-radius bend that the cable experiences continuously during towing. The bend radius here is the most mechanically stressed point on the entire cable
Application Analysis: Where Exploration Cables Are Used
- Hydrographic and seabed mapping survey: Side-scan sonar and multibeam echo sounder towfish cables — the cable carries power to the sonar and data (typically Ethernet or serial) back to the vessel, while withstanding the continuous tow tension and vibration
- Marine geophysical exploration: Seismic streamer tail cables and ocean bottom seismometer deployment cables for oil and gas exploration — the cable may be 500 m long, carrying power and data to a towed array of hydrophones and seismic sources
- Oceanographic research: CTD rosette deployment cables — the cable lowers a frame carrying 12–24 water sampling bottles and multiple sensors to depths of 1 000–3 000 metres, and the cable must support the rosette's weight in air during deployment and recovery
- Environmental monitoring and impact assessment: Temporary-deployed ADCP (Acoustic Doppler Current Profiler), water quality sonde, and sediment trap mooring cables for baseline surveys before offshore construction projects
- Underwater archaeology and wreck survey: Towed camera sled and magnetometer cables for maritime archaeological site documentation — the cable must be neutrally buoyant to avoid disturbing fragile wreck structures
Why Choose Yichi for Seawater Resistant Exploration Cables
- Purpose-designed for the exploration duty cycle: The cable is engineered for repeated deployment and retrieval, winch drum coiling, and towing — not adapted from a permanent-installation marine cable with a thinner jacket
- Class 6 extra-fine stranded option for towed array duty: The fairlead is the most mechanically aggressive point on a towed cable. Class 6 conductors provide the flex life needed at this point, where the cable bends continuously for hours during each survey line
- Buoyancy specified to your operational requirement: Neutral buoyancy for depth-controlled towed sensor cables; positive buoyancy for surface-floating recovery lines — Yichi calculates and verifies the buoyancy to your specification
- Shielded twisted pairs for clean sensor data: Hydrophones, magnetometers, and CTD sensors produce signals in the microvolt to millivolt range. Individually shielded pairs prevent crosstalk between sensor channels, and the overall braid provides an additional noise barrier
- Factory-direct with short lead times for research programmes: Academic and government research vessels operate on grant-funded schedules. Yichi supports exploration cable orders with practical lead times and full electrical/mechanical test documentation
