Detailed Description

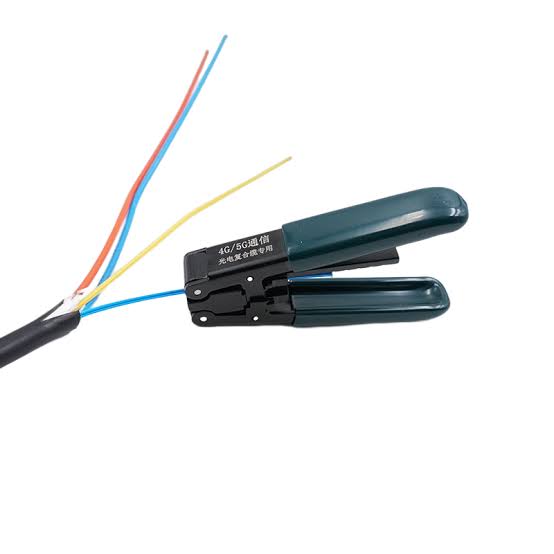

What Is a UAV / Drone Lightweight Cable?
A UAV lightweight cable is a purpose-built signal and power cable engineered for the weight-critical environment of unmanned aerial vehicles. Every gram of cable weight on a drone reduces flight time by approximately 0.5–2 seconds per gram, depending on the drone's thrust-to-weight ratio. On a multi-rotor drone carrying a 500 g cable payload (not unusual for industrial sensor cables), that is 4–17 minutes of lost endurance — the difference between completing a survey mission and returning early.
The engineering challenge is to remove mass from every element of the cable — conductor, insulation, shield, jacket — without compromising electrical performance or mechanical reliability:
- Conductors: Silver-plated copper in 28–24 AWG, with 19-strand construction on the smallest size (28 AWG) for gimbal flex life. Silver plating (rather than tin) provides lower contact resistance and better high-frequency performance for video and GPS signals
- Insulation: ETFE or PTFE fluoropolymers with wall thicknesses of 0.10–0.15 mm — one-third to one-half the thickness of PVC insulation on the same conductor. The fluoropolymer's high dielectric strength (≥20 kV/mm) maintains insulation integrity despite the thin wall
- Shield: A tinned copper braid with as few as 16 carriers of 0.05 mm wire — providing ≥85% coverage on a cable OD of only 3–4 mm. The shield prevents the high-current motor and ESC wiring (which may carry 20–50 A pulses at 10–50 kHz) from coupling onto the sensitive video and GPS signal wires that share the same drone arm
- Jacket: Silicone rubber at 0.3–0.5 mm thickness for gimbal and moving-arm wiring; fluoropolymer (FEP) tape wrap for fixed-installation sensor cabling where chemical and UV resistance are the priorities
Drone Cable Weight — Why Every Gram Counts
| Cable Type | 4-Core, 0.5 mm², Shielded | Weight per Metre | Weight on a Hexacopter (6 Arms, 0.5 m Each) |
|---|---|---|---|
| Standard PUR shielded cable (Machine Tool Grade) | OD ~6.5 mm | ~65 g/m | ~195 g (6 × 0.5 × 65) |
| Lightweight PUR cable (Drag Chain Grade, 0.34 mm²) | OD ~4.5 mm | ~35 g/m | ~105 g |
| Yichi UAV Lightweight Cable (26 AWG, 0.14 mm², Silicone) | OD ~4.0 mm | ~15 g/m | ~45 g |
| Weight Saved vs Standard | — | 50 g/m | 150 g |
On a 5 kg industrial hexacopter with 30-minute endurance, 150 g of weight reduction (from cable choice alone) adds approximately 1.5–2 minutes of flight time. Over a hundred flights, that is several extra hours of operational survey or inspection coverage.
Signal Types in Drone Wiring — Cable Requirements by Function
| Drone Signal | Conductor Requirement | Shield | Pair Configuration | Why It Matters |
|---|---|---|---|---|
| Gimbal PWM (roll/pitch/yaw) | 3–4 cores, 26 AWG, silicone jacket for flex | Optional — gimbal PWM is low-frequency (~50–400 Hz) and relatively noise-immune | No pair needed (single-ended PWM) | Flex life >1M cycles; cable follows the gimbal through continuous angular motion |
| FPV Analog Video (CVBS) | 75 Ω coaxial or 2-core twisted pair, 26 AWG | Mandatory — motor noise appears as horizontal lines on the video feed | Coaxial preferred for impedance match; twisted pair with balun at each end | Shield must be continuous from camera to VTX; any gap = motor noise in video |
| HD Digital Video (MIPI CSI, FPD-Link) | 2–4 twisted pairs (differential), 28–30 AWG | Mandatory per pair + overall — data rates up to several Gbps | Controlled-impedance pairs (100 Ω differential) | Signal integrity at Gbps data rates requires controlled impedance and minimal skew between pairs |
| GPS / GNSS Antenna | 50 Ω coaxial or shielded twisted pair, 26 AWG | Mandatory — GPS L1 (1 575 MHz) signal is ~–130 dBm at the antenna; any coupled noise below the noise floor is invisible but degrades accuracy | 50 Ω coax with SMA/MCX connector | GPS operates at microwave frequencies; cable attenuation and shield transfer impedance directly affect position accuracy |
| Telemetry (MAVLink serial) | 2-core + power, 26 AWG | Shield recommended where power wires share the cable | Twisted pair for RS-232/TTL UART | Telemetry dropouts during flight cause loss of ground station situational awareness |
| ESC Signal (PWM / DShot) | 1 core per ESC + ground, 26 AWG | Optional for short runs (<20 cm); shield recommended for runs sharing the arm with motor power wires | Single core (signal) + common ground | DShot is a digital protocol — noise spikes cause CRC errors and motor desync in flight |
The cable that matters most for drone reliability is the gimbal-video cable. It carries the signals that the operator or autonomous system relies on for navigation and payload operation. A noisy video feed or intermittent gimbal control directly reduces mission effectiveness. The weight-optimized design of a UAV cable — thin insulation, minimal jacket, light braid — must not come at the expense of that reliability.
Application Analysis: Where UAV Lightweight Cables Are Used
- Industrial inspection drones: Power line inspection, wind turbine blade inspection, and pipeline survey drones carrying high-resolution cameras and thermal sensors — where cable weight directly extends the mission radius
- Agricultural spraying drones: Multi-rotor drones with multiple motor ESCs, pump controllers, flow meters, and GPS antennas — lightweight cable harnesses that survive vibration and chemical exposure
- Aerial surveying and mapping: Fixed-wing and VTOL survey drones with nadir and oblique cameras, LiDAR, and GNSS receivers — lightweight multi-core for sensor payload integration
- Drone delivery and logistics: Last-mile delivery multi-rotors with payload release mechanisms, cameras, and telemetry — cable weight saved adds directly to the payload capacity
- FPV racing and freestyle: High-flex gimbal and camera cables for first-person-view drones — the most mechanically demanding application, with repeated impacts and extreme bend angles
Why Choose Yichi for UAV Lightweight Cables
- Purpose-built for weight-critical drone applications: Every element — conductor, insulation, shield, jacket — is selected for minimum weight at the required electrical and mechanical performance. This is not a repurposed industrial cable with a thinner jacket
- Fluoropolymer insulation as standard for drone electronics: ETFE and PTFE operate reliably at +200°C with wall thicknesses that PVC cannot match. Your drone's ESC and motor bay can reach 100–120°C during heavy hovering — PVC softens and flows at those temperatures; fluoropolymer does not
- Silicone jacket for gimbal flex life: Silicone rubber maintains flexibility down to –60°C (high-altitude operation) and survives >1 million flex cycles on the gimbal cable — a critical component that is difficult to replace in the field
- Custom core counts and mixed AWG for multi-sensor payloads: A 2-core 24 AWG power pair plus 4-core 28 AWG signal group in one lightweight cable — specified to your drone's exact wiring diagram, not adapted from a catalog standard
- Factory-direct manufacturing with weight verification: Every production length is weighed and the weight per metre is recorded. For drone manufacturers where every gram is budgeted, Yichi provides verified weight data — not catalog estimates
