Detailed Description

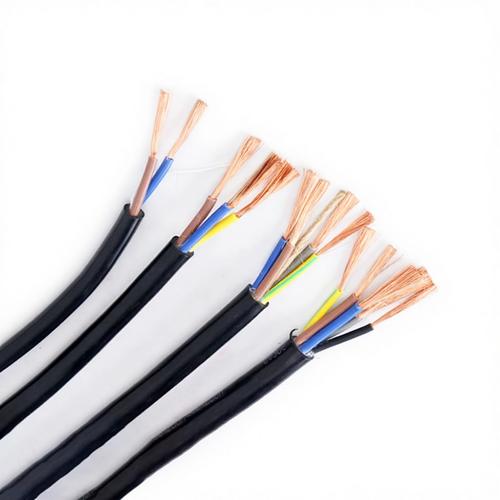

What Is a Double-Shielded Signal Cable?
A double-shielded signal cable applies two independent shielding layers to each signal path: a primary foil shield around each individual twisted pair (100% coverage), and an overall braid shield (≥85% coverage) around the complete core assembly. This architecture is the highest grade of EMI protection available in flexible industrial signal cabling — used where single-shield cables show measurable residual noise on critical signals and where multiple signal types must coexist in the same cable without crosstalk.
The double-shielding architecture addresses two distinct noise coupling mechanisms:
- Capacitive (E-field) coupling — the dominant interference mechanism at high impedance — is blocked by the 100% foil shield on each pair. The foil is a continuous conductive barrier with no gaps, providing complete electrostatic screening at frequencies up to several hundred MHz
- Inductive (H-field) coupling — the mechanism behind low-frequency magnetic interference from motor power cables — is attenuated by the overall braid. The braid's low DC resistance provides a current path for induced shield currents, and its three-dimensional structure (multiple wire crossings) breaks up the magnetic field coupling geometry
Single Shield vs Double Shield — Noise Attenuation Comparison
| Shielding Architecture | Typical EMI Attenuation | Crosstalk Between Pairs | Best Application |
|---|---|---|---|
| No shield | 0 dB (reference) | High — pairs share the same capacitive environment | Non-critical switching, indicator lamps |
| Overall braid only | 20–30 dB | Moderate — all pairs inside the same shield envelope | General PLC I/O, 24 V digital, 4–20 mA |
| Foil per pair (no overall braid) | 15–25 dB (per pair) | Low — each pair has its own electrostatic screen | Multi-channel analog measurement, RS-485 |
| Foil per pair + overall braid (double-shielded) | >40 dB | Very low — each pair foil blocks E-field crosstalk; overall braid suppresses H-field coupling | Critical measurement, multi-MHz digital, mixed signal types |
The figures are approximate — actual attenuation depends on frequency, shield termination quality, and cable routing — but the ranking is consistent across all independent measurements. For applications where signal integrity is the primary concern (not cost), the double-shielded cable is the natural choice.
Signal Types That Drive the Double-Shielded Cable Choice
| Signal Type | Typical Level | Min Detectable Noise | Why Double Shield Matters |
|---|---|---|---|
| Strain gauge / load cell | ±10 mV (full bridge at 2 mV/V, 5 V excitation) | <1 μV for 16-bit resolution | Foil-per-pair blocks microvolt-level E-field noise that a single braid cannot fully suppress |
| Thermocouple (Type K) | ~40 μV/°C | ~4 μV for 0.1°C resolution | mV-level signal at high source impedance is extremely susceptible to capacitive coupling |
| RTD (Pt100, 4-wire) | Excitation current 1 mA → ~100 mV signal | ~100 μV for 0.1°C resolution | 4-wire measurement needs matched pair characteristics; foil-per-pair ensures clean excitation and sense paths |
| BiSS C / EnDat 2.2 encoder | RS-485 differential, 5 V, up to 16 MHz | ~200 mV noise margin (RS-485 receiver threshold) | High-frequency clock couples easily onto adjacent unshielded pairs; per-pair foil breaks the coupling path |
| 16-bit analog input (±10 V) | Full scale 20 V pk-pk | ~305 μV (1 LSB) | That is only ~75 dB SNR; any coupled noise from nearby power cable pushes the reading outside the 1-LSB noise budget |
In each case, the limiting factor is not the sensor or the measurement electronics — both of which have improved dramatically in the last two decades — but the cable that connects them. A double-shielded cable removes the cable as a noise source.
Application Analysis: Where Double-Shielded Signal Cables Are Used
- Multi-axis CNC machine tools: Spindle encoder, X-axis scale, Y-axis scale, Z-axis scale, and tool probe signals — five individually shielded pairs, each running a different encoder protocol, in one drag-chain-rated cable. Per-pair foil shields guarantee that the 16 MHz EnDat clock on one axis does not corrupt the 1 Vpp analog sine signal on another
- Test stands and dynamometers: Torque transducer (strain gauge bridge, mV-level), speed encoder (RS-422), temperature sensors (Type K thermocouple), and vibration accelerometers (IEPE, mV/g) — all sharing a single cable from the test specimen to the data acquisition rack
- Servo motor with auxiliary sensors: Main encoder feedback (EnDat/BiSS) plus motor PTC thermistor plus bearing vibration sensor — three individually shielded pairs in one cable, eliminating three separate cables in the drag chain
- Process plant instrumentation: Multi-variable transmitters (differential pressure + static pressure + temperature) with 4–20 mA + HART on each pair — individually shielded pairs prevent HART digital communication on one pair from interfering with another
- Scientific and laboratory equipment: Cryogenic temperature measurement (diode sensors, Cernox, ruthenium oxide), SQUID magnetometer cabling, precision voltage reference distribution — where the noise floor of the cable directly limits measurement resolution
- Robotic multi-sensor end effectors: Gripper force/torque sensor, proximity sensor, part-present sensor, and tool-ID chip reader — multiple signal types on individually shielded pairs in the robot wrist-to-base cable run
Why Choose Yichi for Double-Shielded Signal Cables
- Two-layer shield built the right way — every time: The per-pair foil is applied longitudinally with a controlled overlap (≥5 mm) and a dedicated drain wire. The overall braid coverage is optically verified at ≥85%. We do not substitute one for the other or reduce braid coverage to save copper
- Capacitance-matched on every production length: Core-to-core capacitance is measured at 800 Hz on each pair and recorded. Pairs are built with controlled twist lay length and insulation wall thickness, so all pairs in a multi-pair cable have matched capacitance — essential for multi-channel simultaneous-sampling data acquisition
- PE insulation as standard for signal quality: Polyethylene (dielectric constant 2.3–2.4) is our standard core insulation on double-shielded signal cables — not an upsell option. Lower dielectric constant means lower capacitance per metre, which means longer usable cable runs and cleaner signal edges
- Real-world drag chain rating: >10 million flex cycles at 12× cable OD — verified on our own drag chain test rig, not extrapolated from conductor data alone. The test includes continuous electrical monitoring of all pairs
- Factory-direct manufacturing with full electrical test data: Capacitance, insulation resistance, and HV test results are recorded per production length and available with the shipment. No black-box cable where you have to trust a datasheet value
