Detailed Description
What Is a Twisted Pair Communication Cable?

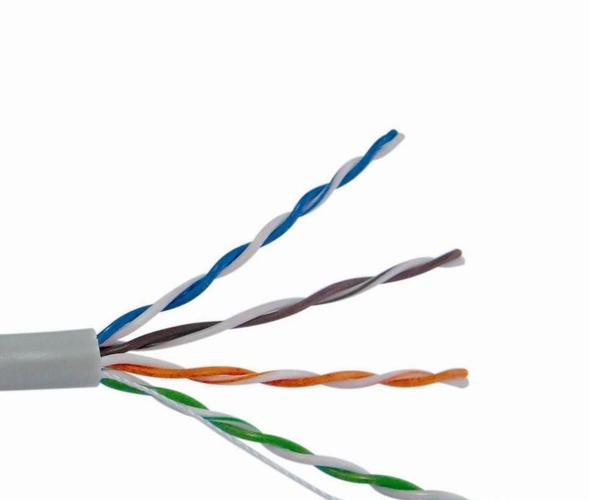

A twisted pair communication cable is a multi-pair cable where each pair of conductors is twisted together to cancel electromagnetic interference, and all pairs are enclosed under a single overall shield. It is the foundational cable type for voice and low-speed data communication — telephone, intercom, paging, security, fire alarm voice, and legacy modem/data circuits — in buildings, factories, and infrastructure.
Twisted pair has been the backbone of wired communication since Alexander Graham Bell's time for a fundamental reason: twisting the two conductors together ensures that any external magnetic field induces an equal voltage in both conductors, which cancels at the differential receiver. The tighter and more consistent the twist, the better the common-mode noise rejection. In a multi-pair cable, each pair has a different twist lay length (the distance for one complete twist) to prevent one pair's signal from coupling magnetically onto an adjacent pair.
Pair Count Selection — Matching the Cable to the Installation
| Pair Count | Typical Application | Installation |
|---|---|---|
| 1–2 pairs | Individual telephone drop, door intercom | Wall outlet to telephone or intercom station |
| 4–10 pairs | Small floor distribution, PA zone cable | IDF to office cluster; PA rack to zone amplifier |
| 16–25 pairs | Standard floor trunk | Floor IDF to building MDF; 25 pairs is the standard telecom trunk unit |
| 50 pairs | Large floor trunk, industrial plant backbone | Multi-tenant floor to building MDF; plant-wide intercom trunk |
| 100 pairs | Building riser backbone | MDF to basement cable vault; the largest standard pair count in a single cable |
Application Analysis
- Commercial building telephone backbone: A 100-pair trunk cable from the basement MDF through the building riser to the 10th-floor IDF, serving 100 telephone extensions on that floor
- Industrial plant intercom and paging: A 25-pair cable around the plant perimeter, with pairs tapped off at each intercom/paging station — the overall shield prevents 50 Hz power line interference on the audio circuits
- Elevator communication: A 6-pair traveling cable in the elevator shaft, carrying car-to-machine-room telephone, emergency intercom, alarm circuit, and background music pairs
- Fire alarm voice evacuation: Shielded twisted pair cable for addressable voice evacuation speakers in a high-rise building, where each speaker pair is individually addressable for zone-based emergency announcements
Why Choose Yichi for Twisted Pair Communication Cables
- Varied twist lay lengths for crosstalk reduction: Adjacent pairs have different lay lengths — a technique that significantly reduces the magnetic coupling between pairs in high-pair-count cables where individual pair shielding would be impractical
- Full pair-count range from 1 to 100 pairs: From a two-pair telephone drop cable to a 100-pair building riser — one manufacturer for all your twisted pair communication cabling needs
- DIN 47100 colour-coded pairs for unambiguous identification: In a 100-pair cable, colour coding is the only practical way to identify each pair at the punch-down block. Yichi follows the DIN 47100 standard — every installer in Europe and Asia recognizes it
- PUR jacket for industrial environments: Factory intercom and paging cables are exposed to oil mist, coolant spray, and mechanical abuse. The PUR jacket provides the durability that PVC building cable cannot match
