What Is a Waterproof Submersible Cable?

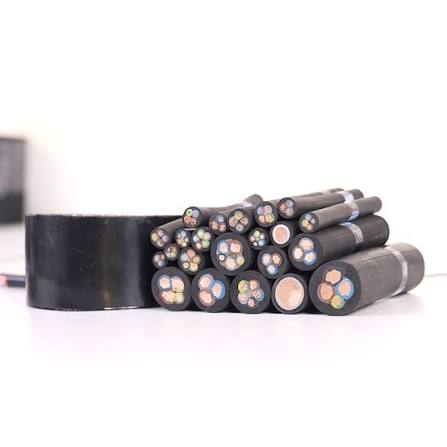

A waterproof submersible cable is a flexible multi-core cable designed for electrical equipment that operates fully or partially submerged in water. Unlike the submersible pump power cable — which is a heavy-duty 0.6/1 kV cable built for deep-well pump duty — the waterproof submersible cable is a more general-purpose product: lighter, more flexible, and rated 450/750 V for the broad range of underwater electrical equipment found in swimming pools, fountains, water features, aquariums, and water treatment systems.
The essential property is water tightness: if the outer jacket is damaged, water must not travel along the inside of the cable to the equipment it powers. This is achieved through:
- Conductor sealing — a water-blocking compound or swellable material is applied at the interface between each copper conductor and its insulation, preventing capillary water ingress along the conductor strands
- Core interstice filling — the spaces between the cabled cores are filled with water-swellable yarns or tapes that expand on contact with water, forming a gel plug that stops longitudinal water propagation
- Continuous jacket extrusion — the outer jacket is extruded as a single, seamless tube over the core assembly, pressure-tested during production for pinhole integrity
Submersible Cable Selection — Matching the Cable to the Water Environment
| Water Type | Chemical Challenge | Recommended Jacket | Notes |
|---|---|---|---|
| Swimming pool (chlorinated) | Free chlorine 1–5 ppm, pH 7.0–7.8 | CSP (Hypalon) or PUR | PVC jacket can be used but CSP/PUR offers longer service life in chlorinated water |
| Salt water pool / seawater | Salt (NaCl), higher conductivity | PUR or CSP | Chloride ions accelerate jacket degradation; PUR offers best seawater resistance |
| Fresh water (pond, lake, fountain) | Low chemical load | PVC, rubber, or PUR | PVC is adequate for decorative fountains and ponds; PUR for long-term installations |
| Treated wastewater | Chlorine, chloramines, variable pH | CSP (Hypalon) | Hypalon offers the best overall chemical resistance for variable water chemistry |
| Aquarium (fresh/salt) | Specialized water chemistry | PUR | PUR is inert and does not leach plasticizers into the water — important for sensitive aquatic life |
For most swimming pool and fountain applications, a rubber (CSP/Hypalon) or PUR jacket is the correct specification. PVC jacket cables are lower cost but have a shorter service life in chlorinated water — the chlorine slowly attacks the PVC plasticizer, causing the jacket to stiffen and eventually crack.
450/750 V vs 0.6/1 kV — Voltage Class Selection for Submersible Equipment
| Equipment Type | Typical Power | Voltage Class | Why |
|---|---|---|---|
| Underwater LED pool light (12 V) | 10–50 W | 450/750 V | Voltage class far exceeds operating voltage; the 450/750 V rating is for the cable's dielectric strength, not the operating voltage |
| Fountain pump (single-phase, 230 V) | 0.5–2.2 kW | 450/750 V | Adequate for single-phase submersible pumps up to ~2.2 kW with short-to-medium cable runs |
| Swimming pool circulation pump (3-phase, 400 V) | 2.2–7.5 kW | 0.6/1 kV (submersible pump power cable) | Higher power and continuous duty — the submersible pump power cable with EPR insulation is the correct specification |
| Underwater junction box and control wiring | Signal-level | 450/750 V | Adequate — the cable is sized for mechanical robustness and water tightness, not current capacity |
The 450/750 V waterproof submersible cable covers the majority of underwater lighting, fountain, and small pump applications. For continuous-duty industrial submersible pumps — particularly three-phase pumps above 2.2 kW in deep installations — the 0.6/1 kV submersible pump power cable with EPR insulation is the correct specification.
Application Analysis: Where Waterproof Submersible Cables Are Used
- Swimming pool underwater lights: Low-voltage (12 V) or mains-voltage (230 V) submersible LED and halogen pool lights in residential, hotel, and competition pools — the cable is continuously submerged and must be water-tight from the light fitting through the conduit to the junction box above water
- Decorative fountains and water features: Submersible pump and lighting cables in architectural fountains, reflecting pools, water walls, and interactive water features in public spaces, shopping malls, and hotel lobbies
- Aquariums and aquatic exhibits: Submersible cables for circulation pumps, heaters, UV sterilisers, and monitoring probes in public aquariums, research facilities, and large ornamental fish tanks — the cable must not leach chemicals into the water
- Water treatment dosing systems: Cable for submersible chemical dosing pumps and level sensors in water treatment plant chemical tanks — resistance to the specific chemical (sodium hypochlorite, sodium hydroxide, aluminium sulphate) determines the jacket choice
- Boat and marina systems: Waterproof cable for bilge pumps, bait tank pumps, underwater transom lights, and depth sounder transducers on recreational and commercial vessels
- Water feature landscape lighting: Submersible cable for pond lights, waterfall lights, and underwater landscape lighting in gardens, parks, and golf course water features
Why Choose Yichi for Waterproof Submersible Cables
- Water-blocked construction verified on every production length: Each cable is tested for longitudinal water tightness — water pressure is applied at one end of a cable sample, and water propagation is measured at the other end after 24 hours. This is the definitive test for submersible cable integrity
- Jacket selection matched to your water chemistry: We help select the correct jacket material — PVC, rubber (neoprene/CSP), or PUR — based on the specific water chemistry (chlorine level, pH, salinity, treatment chemicals) of your installation
- Tinned copper conductors as standard: Tin plating prevents the copper corrosion that occurs in continuously submerged bare copper conductors, maintaining low contact resistance at the cable terminations over years of service
- Flexible construction for easy installation: Class 5 fine stranded conductors and a flexible jacket allow the cable to be routed through tight conduit bends, pool wall penetrations, and submerged junction boxes without kinking
- Factory-direct supply for project quantities: For swimming pool complexes, water parks, and fountain projects requiring hundreds of metres of submersible cable, Yichi provides consistent quality, full water-tightness test documentation, and competitive project pricing
