Detailed Description
Shielded vs Unshielded Manipulator Cable — When the Shield Is Necessary
The unshielded robot manipulator cable (24 V DC digital I/O for gripper solenoids, part present sensors, valve control) operates at signal levels that tolerate moderate electrical noise. A 24 V DC digital input has a typical threshold of 15 V for "high" and 5 V for "low" — the 10 V hysteresis band provides inherent noise immunity of approximately 5–10 V.
The shielded manipulator cable is necessary when the end effector signals operate at levels where the noise margin is significantly smaller:
| Signal Type | Voltage Level | Noise Margin | Shield Required? |
|---|---|---|---|
| 24 V DC digital I/O (solenoid, sensor) | 24 V | ~10 V | No |
| 0–10 V analog (displacement sensor) | 0–10 V | ~0.1 V (for 1% accuracy) | Yes |
| 4–20 mA analog (pressure, force) | 7–30 V DC loop | ~0.05 mA (for 0.5% accuracy) | Yes (for long runs) |
| Incremental encoder (RS-422, 5 V) | ±2 V differential | ~0.2 V | Yes |
| Strain gauge (mV-level) | 0–20 mV full scale | ~0.02 mV | Yes |
| GigE Vision (Ethernet, ±1 V) | ±1 V differential | ~0.1 V | Yes (CAT6a internal shield) |
| USB 3.0 (5 Gbps) | ±0.2 V differential | ~0.02 V | Yes (internal + overall) |
| CAN bus | ±1.5 V differential | ~0.5 V | Recommended |
| IO-Link | 24 V, 200 mA | Moderate | Not required but recommended |
In a robot wrist environment — adjacent to servo motor power cables carrying 10–40 A at 4–16 kHz PWM switching frequency — the unshielded analog signal conductor can experience induced noise of 0.5–2 V. For a 0–10 V analog signal with a required accuracy of 1%, 0.5 V of induced noise is a 5% error — unacceptable. For a strain gauge signal of 0–20 mV full scale, 0.5 V of induced noise is 2 500× the full-scale signal — the signal is completely buried in noise.
Shield Effectiveness in the Robot Wrist Environment
The braid shield's effectiveness depends on proper termination:
- Shield must be grounded at ONE end only for analog signals — grounding at both ends creates a ground loop (current flowing through the shield due to potential difference between the wrist and controller ground). This ground loop current induces its own noise in the signal conductors. The robot controller end is the standard single-point ground location
- Shield must be grounded at BOTH ends for high-frequency digital signals (Ethernet, USB) — the short cable length (<2 m) means the ground loop voltage is small, and grounding both ends provides better high-frequency shield performance
- Drain wire must have a low-impedance ground connection — a drain wire terminated through a long pigtail to a distant ground point has high inductance and provides poor high-frequency shielding. The drain wire should connect to the connector shell or a dedicated shield terminal within 20 mm of the cable exit point

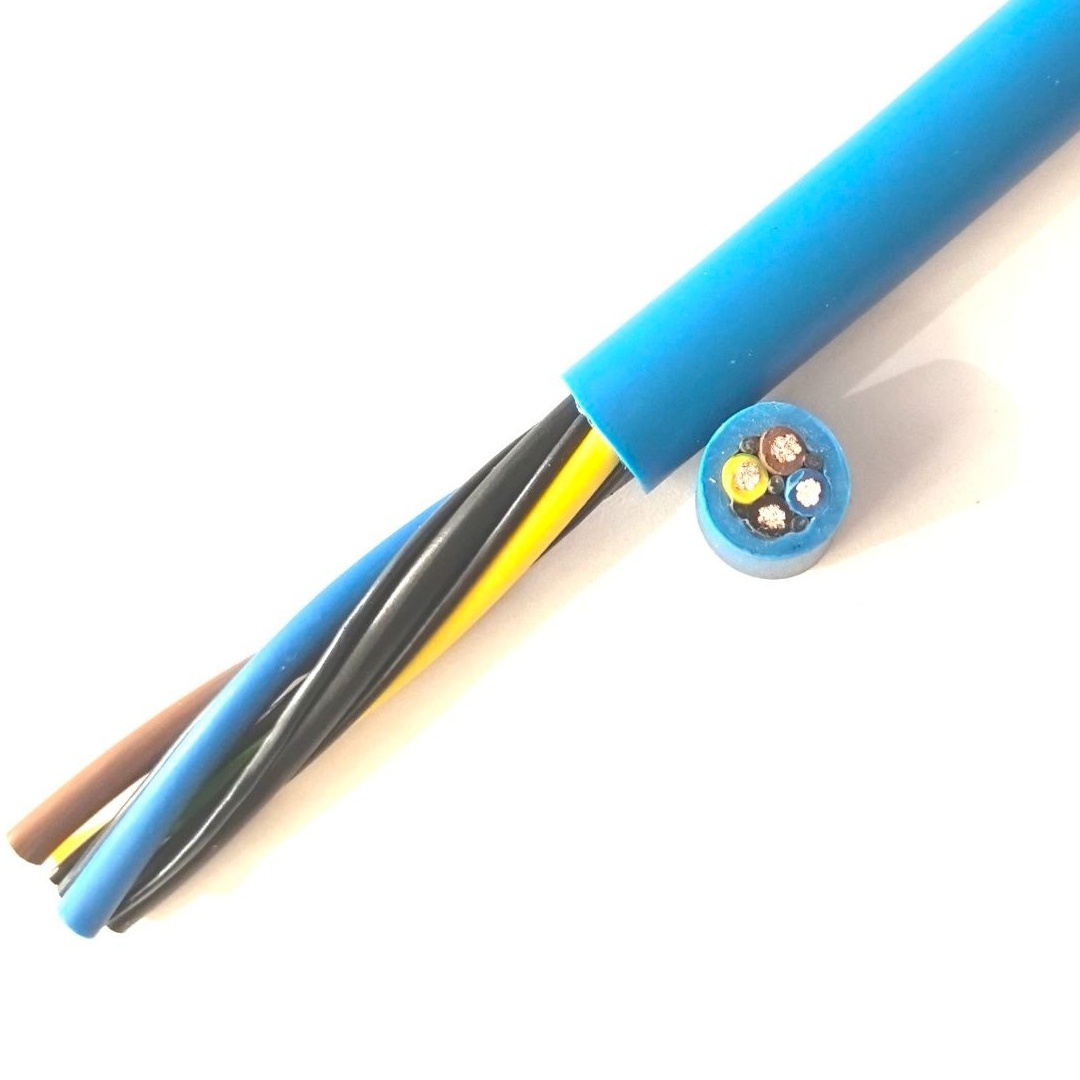

Yichi Shielded Manipulator Cable Quality
- Braid coverage verified: Optical measurement on production samples — ≥85% coverage acceptance. The braid angle (30–45° from cable axis) is verified — too shallow an angle (near parallel to the axis) provides good coverage but poor flexibility; too steep an angle provides good flexibility but reduced coverage
- Shield continuity tested: DC resistance of the shield (drain wire to drain wire, end to end) is measured on every production length. An open circuit indicates a break in the shield — the cable does not provide EMI protection
- Core-to-shield insulation resistance: 500 V DC applied between each core and the shield — ≥5 GΩ·km minimum. Low insulation resistance indicates a pinhole in the core insulation where it contacts the shield
- Bend radius with shield: The minimum flexing bend radius is relaxed from 7.5× OD (unshielded) to 10× OD (shielded) because the braid layer adds bending stiffness. Customers specifying shielded cable must allow for this slightly larger bend radius in the wrist-to-tool cable routing
